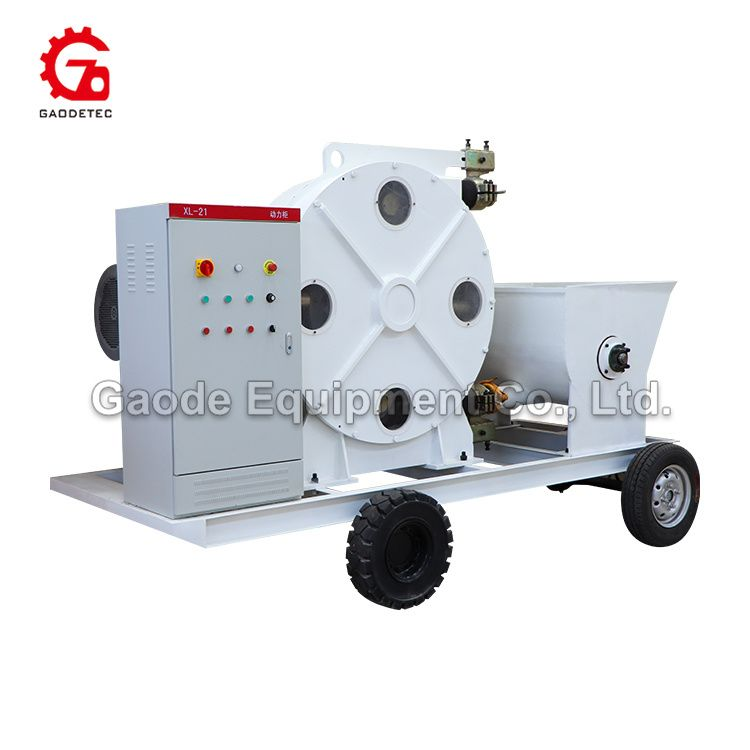

Gaodetec GCP40H-E 45m3/h Electric Squeeze type peristaltic concrete pump for sale
.jpg.webp)
GCP40H-E
Specs & Compare
Details
Specifications
- Weight:2840.000kg
- output:45m3/h
- Pressure:2.5Mpa
- Pump Speed:39rpm
- Max. Aggregate size:<20mm
- Concrete Slump:15-23cm
- Hopper Capacity:400L
- Hopper mixing speed:37rpm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Product Description

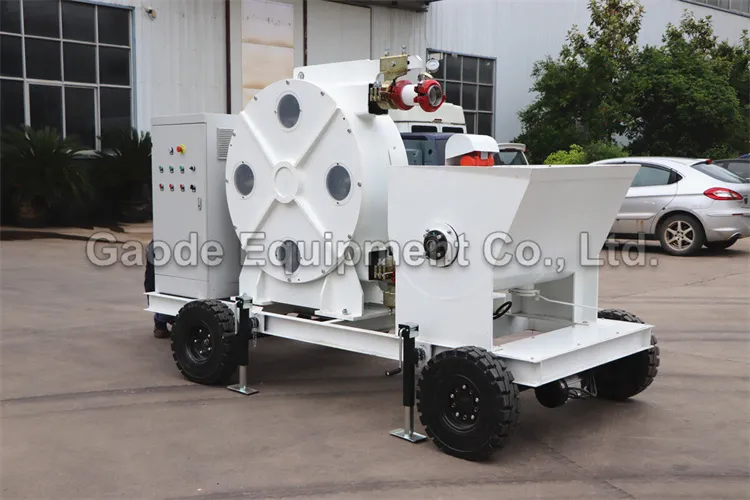

GCP40H-E Hose type peristaltic concrete pump description
GCP40H-E Hose type peristaltic concrete pump was designed based on the squeeze hose pump, this concrete pump uses high pressure, resisting wear squeeze concrete hose with steel wire reinforcement layers, the working pressure is up to 25 bars. GCP40H-E hose concrete pump is more widely used for pumping foam concrete, lightweight form concrete, mortar and refractory materials. The electric hose concrete pump also could be used for spraying concrete or refractory materials.
GCP40H-E Hose type peristaltic concrete pump features

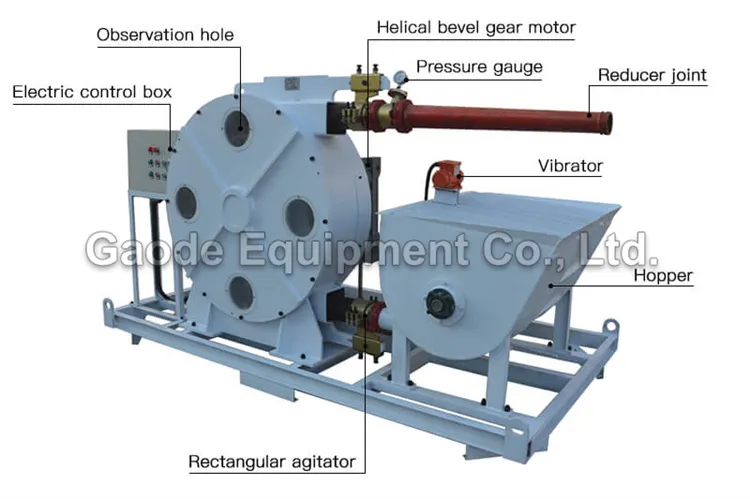

1. Compact size: hopper with agitator, hose pump, power combined in a base frame.
2. Soft start: electric motor smoothly start and protect the motor.
3. Low wear: the squeeze hose is the only wear part of the pump and can be replaced very quickly.
4. Delivers even the most difficult materials.
5. Quiet pumping process.
6. Forwards and reverse, easily to removal the block.
7. Clean on the line: Quick and easy cleaning.
8. No residual concrete remains in the system.
GH series hose peristaltic pump advantages
1. No seals.
2. No valves.
3. Self-priming.
4. Only squeeze hose to replace.
5. Dry-running without damage.
6. Reversible.
7. No contact between product and mechanical parts.
8. Able to pump products with solid parts inside.
9. Easy maintenace, low-cost, short down time.
2. No valves.
3. Self-priming.
4. Only squeeze hose to replace.
5. Dry-running without damage.
6. Reversible.
7. No contact between product and mechanical parts.
8. Able to pump products with solid parts inside.
9. Easy maintenace, low-cost, short down time.

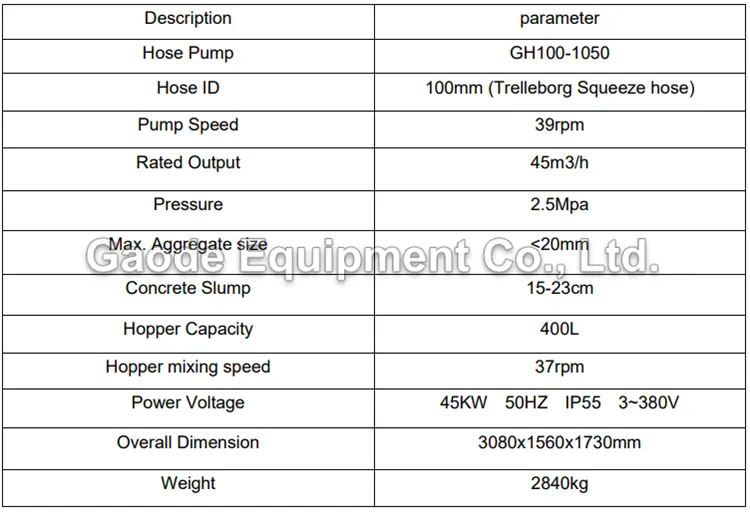

Technical Parameter
Application
GH series hose peristaltic pump application
1. Construction
Pumping fine grain concrete, foam concrete and mortar.
2. Water Treatment
Pumping water or waste water.
3. Paper Making
Pumping pulp, color and glues.
4. Food Project
Pumping beer, wine, milk, juice etc.
5. Mining
Conveying of mineral waste residue.
6. Underground Engineering
For TBM, pumping bentonite.
Pumping fine grain concrete, foam concrete and mortar.
2. Water Treatment
Pumping water or waste water.
3. Paper Making
Pumping pulp, color and glues.
4. Food Project
Pumping beer, wine, milk, juice etc.
5. Mining
Conveying of mineral waste residue.
6. Underground Engineering
For TBM, pumping bentonite.

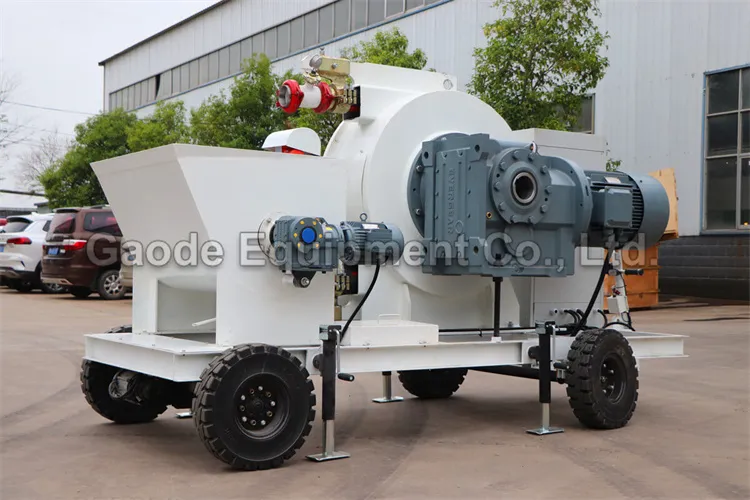

Image Display
Contact Us
Contact us for catalog and price of hose peristaltic pump
Before we send quotation, please let me know the following question:
1. What is the project with our peristaltic pump, is it for pumping concrete or others?
2. What is the pressure and output you require?
3. What is the local voltage you require? here the voltage 380V, 50HZ, 3phase, is it ok for you?
4. What is Max. aggregate size in the slurry?
