Made in China 55HP 4WD Walking Tractor Agricultural Machinery Mini Farm Tractors
Summary
- Place of Origin:China
- Model Number:TH504
- Brand Name:Taihong
- Power(W):40.43KW
- Drive Type:Wheel drive
- Usage:farm tractor.garden tractor
- By wheel:4 wheel drive
- Type:New tractor
- Certification:CE.ISO.CCC
Specifications
- Weight:2030.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Characteristics
(1) Strong power, low fuel consumption
(2) High tranmission efficiency, compact, small turning radius
(3) Low noise,big traction and flexble steering
(4)Good stability and easy start performance
Product Parameters
| Main Technical Data of TH554 Tractor | ||
| Tractor parameters | Model NO | TH554 |
| Type | 4 x 4 wheeled drive | |
| L x W x H(mm) | 3620 x 1620 x 2370 | |
| Wheel base(mm) | 2030 | |
| Front wheel tread(mm) | 1300,1500(step adjustable) | |
| Rear wheel tread(mm) | 1310,1410,1510(step adjustable) | |
| Min ground clearance | 350mm | |
| Dry mass(kg) | 2030 | |
| Clutch | Dry type single action | |
| Steering | hydraulic steering | |
| Transmission box | 8f + 2r shifts | |
| Engine data | Engine brand | LAIDONG / XICHAI |
| Engine model | 4TD55A / 4DW93-55 | |
| Engine type | Inline,cooled water,four stroke | |
| Engine Rated power | 40.43kw | |
| Engine Rated speed | 2400(r/min) | |
| Fuel | diesel | |
| Tyre | Front Tyre | 6.00-16 |
| Rear Tyre | 9.50--24 | |
| PTO | Suspension type | Rear three point suspension category i |
| Pto speed | non-independent 540/760/1000 r/min | |
| Pto shift & spine size | 35 spline 6 teeth | |
| Lifting force(N) | 9096 | |
| Certification | ISO.CCC,CE | |

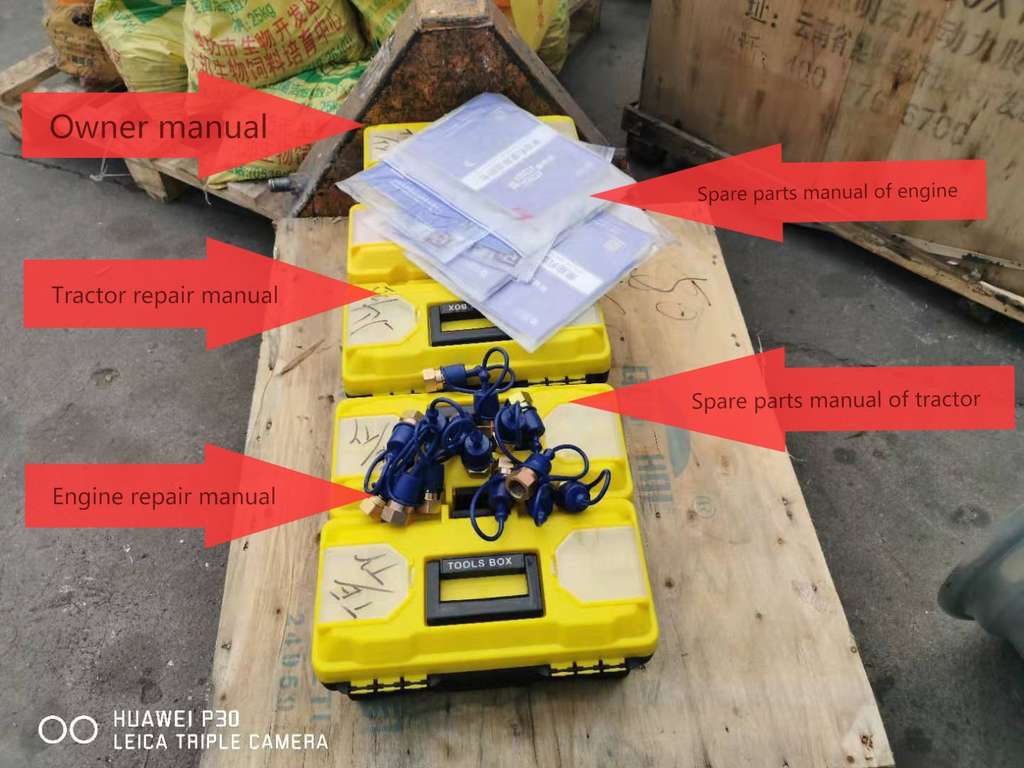

Packing List
About us
Weifang Taihong Tractor Co.,Ltd established in 1990, with coverage of 206677 square meters, is one of the most professional tractor manufacturer in China. With 20 years development, Taihong is capable of producing tractor from 25hp to 240hp and has a large market share at home and abroad. Taihong has its own foundry, casting, machinery processing center. Some parts are made by itself to realize the whole quality control from spare parts.
The products are certified by ISO9001, SGS, CCC.
Service and Warranty:
Pre-sales service
1.24 hours online, Any questions about our machine will be quickly replied.
2.Optimum design and selection according to customer's requirements and environment
3. Welcome to visit our factory and discuss cooperation
Selling service
1.test and inspect every tractor carefully and seriously
2. Technical guidance on common problems, Provide guidelines and videos on how to use them
3.send you the tractor photos for you before packing for your comfimation
After-sales service
1. Except for fragile parts, the whole machine is guaranteed for one year
2. Provide 24-hour technical support via e-mail/telephone
3. We will provide you with the parts atlas and installation video.
Packing and Delivery
Contact us
Welcome to our Factory
Insisting on operation tenet of "good faith and quality first", we do our best to provide best products and whole-hearted service. We actively cooperate with research institutes and transnational corporation, in order to realize constant innovation. Weifang TaiHongTractor Co., Ltd. warmly welcomes domestic and abroad customers to visit us!!
