Summary
- Certification:FOPS/ROPS
- Dimension(L*W*H):9205*2400*2483 mm
- Weight:23000 kg
- Power(W):224000 w
- Model Number:FT20
- Place of Origin:Qingdao, Shandong
- Max. Speed:23.9 km/h
- Brand Name:Fambition

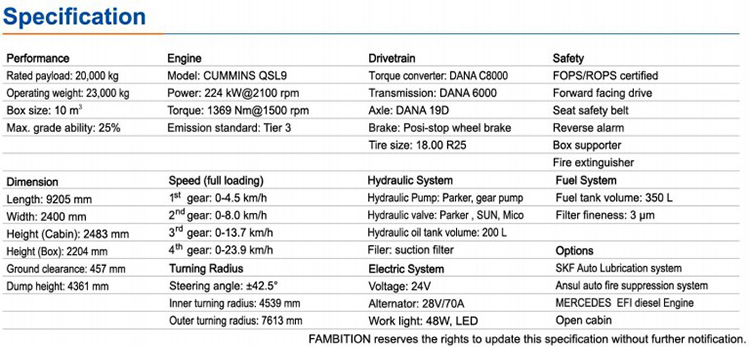

Specifications
- Weight:23000.000kg
- Condition:New
- Moving Type:Wheel
- Emission standard:Tier 3
- Box size:10m³
- Max.dump height:4361mm
- Steering angle :±42.5°

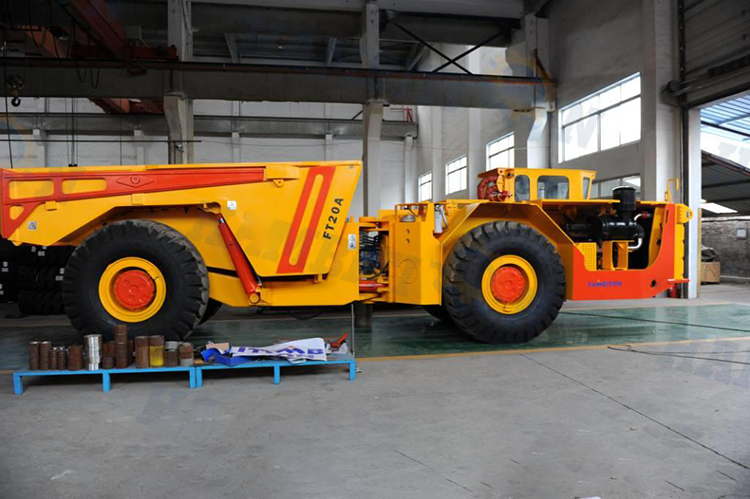

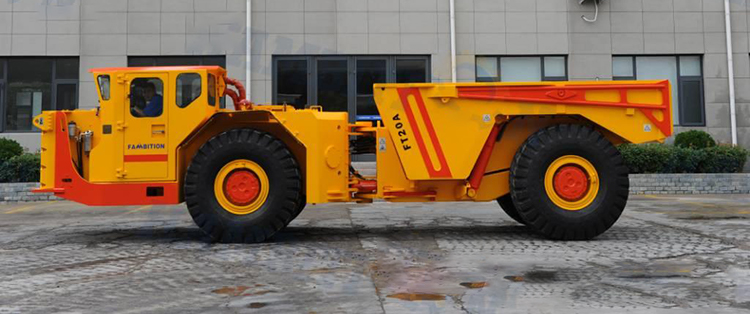

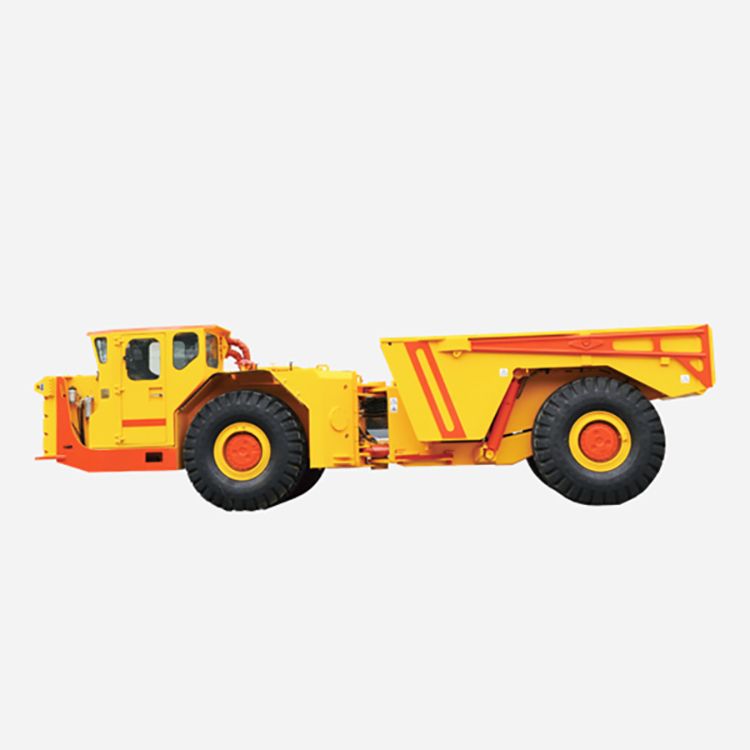

20 ton underground mine truck Fambition FT20.
20 ton underground mine truck Fambition FT20 has a rated payload of 20 ton, standard with fully enclosed forward-facing cabin with AC, which has wide visual field and comfort for driver.the whole vehicle control system adopts CAN-bus communication technology,Fambition Electronic Technician, electro-hydraulic proportional pilot control and variable hydraulic system.
The control system is designed on the basis of CAN-bus. The on-board display screen can display the operating parameters of the scraper in real time, and has the functions of fault warning and self-diagnosis.
The truck adopts Cummins water-cooled EFI engine to meet Euro IIIB emission standards, and other parts adopt internationally well-known brands to meet the tough conditions and climbing requirements for underground. Lincoln auto lubrication system and Ansul auto fire suppression system are optional.
