Summary

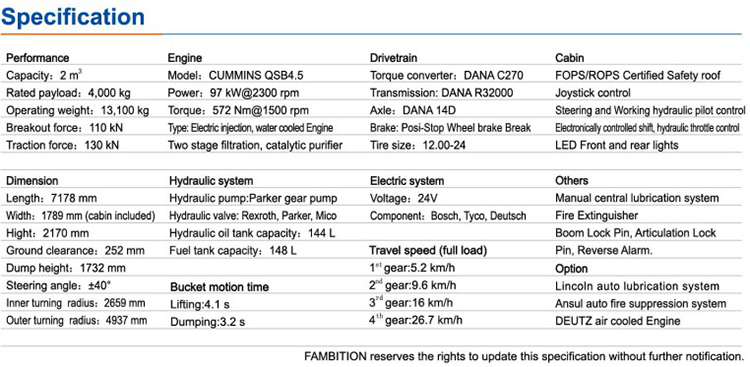

Specifications
- weight:13100.000kg
- Capacity :2m³
- Rated payload:4000 kg
- Dump height :1732 mm
- Steering angle:±40°
- Lifting :4.1s
- Hydraulic oil tank capacity:144L

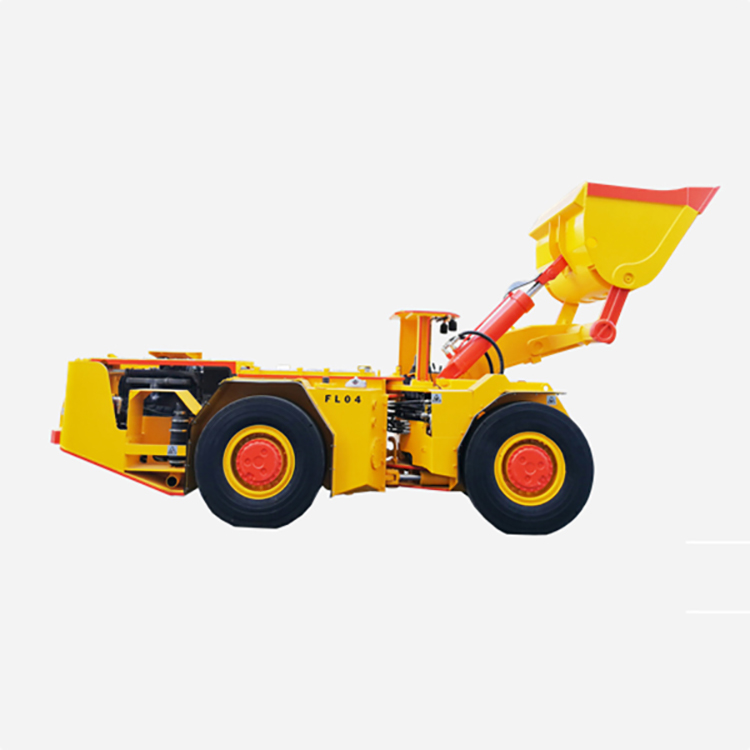

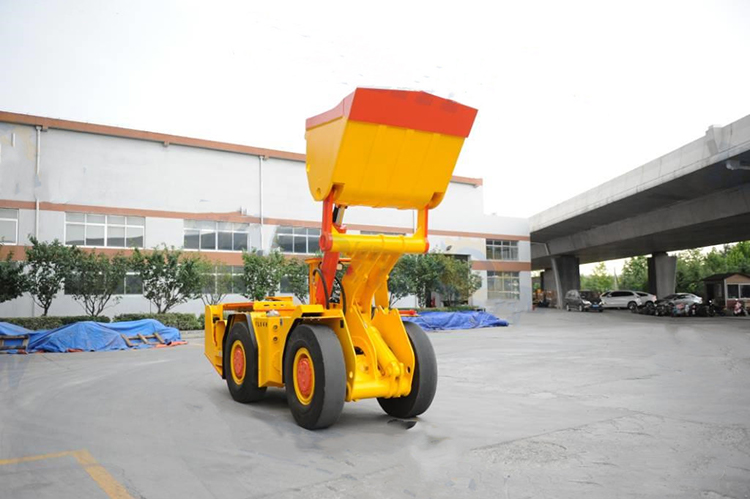

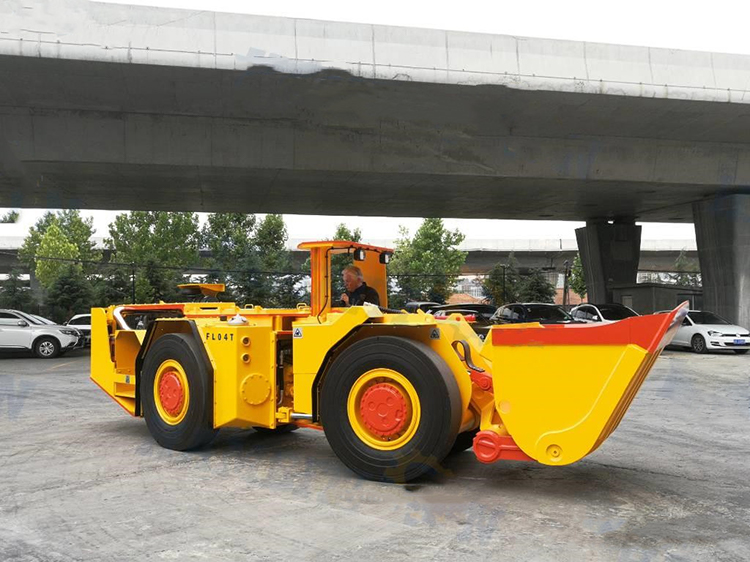

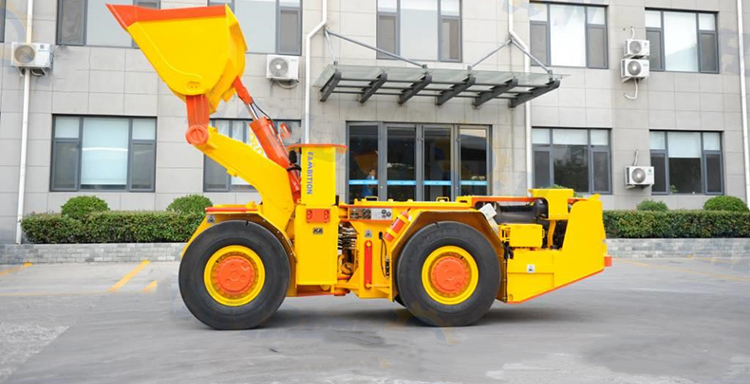

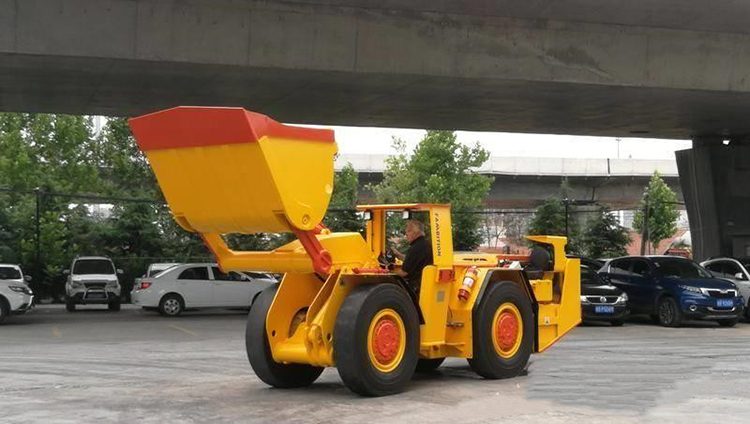

Fambition FL04 underground mining loader 2 cubic meters.
Fambition FL04 underground mining loader 2 cubic meters is a 4 ton diesel Underground Mining load haul dumper specially designed for small underground metal mines. It has a compact structure and smaller turning radius, especially suitable for narrow roadways.
Fambition FL04 underground mining loader 2 cubic meters is equipped with a 89kW Deutz F6L914 engine, which has strong power, strong Breakout force and low failure rate due to high power reserve. Steering operation control adopts hydraulic handle, convenient and comfortable operation. The braking system adopts Posi-Stop spring brake and hydraulic release brake, and the safety is better.
The FL04 highland type LHD is equipped with Deutz BF6L914 engine with power of 112 kW. The power of the engine is 71.5 kW at an altitude of 4500 meters, which meets the requirements of high altitude operation.
