XCMG 38t XE380DK Cheap Used Excavator Machine For Sale
XE380DK
Specs & Compare
Details
Select 3 models for comparison
Model Number
Brand Name
Place of Origin
Machine Weight
Maximum Digging Depth
Maximum Digging Height
Bucket capacity
Operating Weight
Max Digging Radius
Rated Speed
Certification
Used Equipment
XE380DK
XE380DK
XCMG
Xuzhou, China
38200kg
7147mm
10508mm
1.9-2.3m³
38000kg
10968mm
214/2100kw/rpm
CE/IOS9001
+ Add a Product
+ Add a Product
Summary
- Model Number:XE380DK
- Brand Name:XCMG
- Place of Origin:Xuzhou, China
- Machine Weight:38200kg
- Maximum Digging Depth:7147mm
- Maximum Digging Height:10508mm
- Bucket capacity:1.9-2.3m³
- Operating Weight:38000kg
- Max Digging Radius:10968mm
- Rated Speed:214/2100kw/rpm
- Certification:CE/IOS9001
Specifications
- weight:38000.000kg
- Condition:Used
- Moving Type:Crawler
- Warranty:3 Months
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

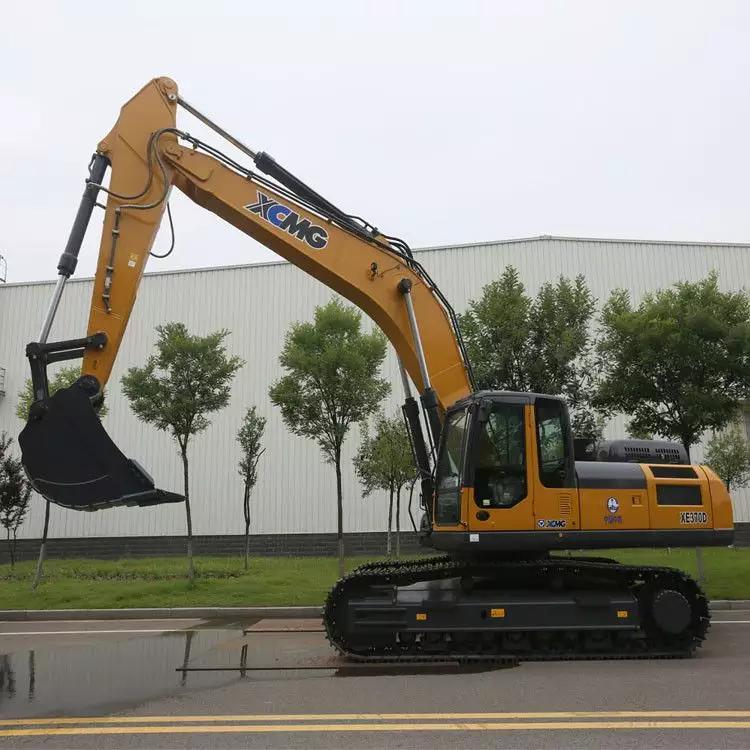

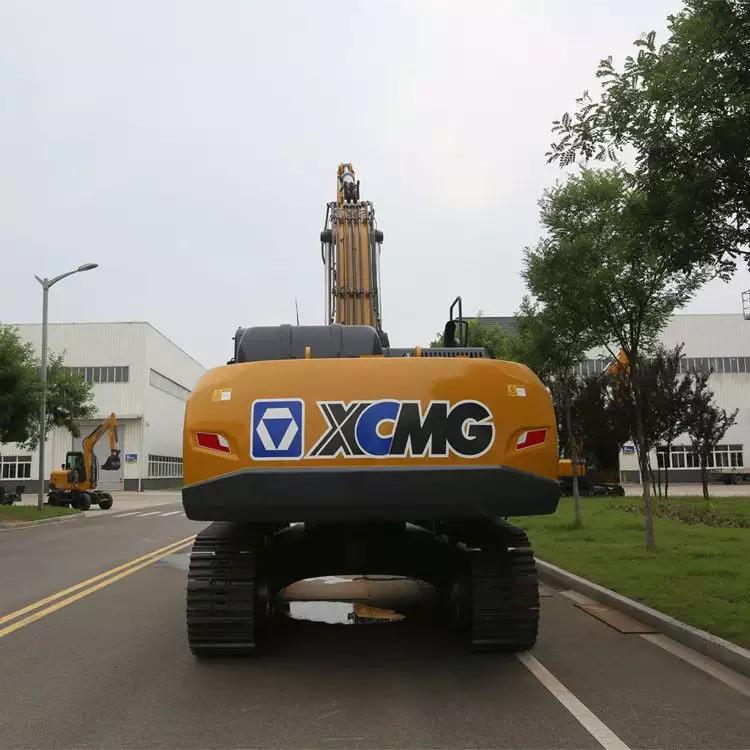

XCMG 38t XE380DK Cheap Used Excavator Machine For Sale
XCMG cheap used excavator machine 38t XE380DK has a maximum digging depth of 7147mm, a maximum digging height of 10508mm, a maximum digging radius of 10968mm, and a rated power of 214/2100kw/rpm. XCMG XE380DK excavator machine adopts original imported hydraulic system, large displacement main pump, large system flow and fast speed; XCMG XE380DK is equipped with imported high-power Cummins engine with sufficient power reserve, large torque and strong power. XCMG XE380DK excavator machine are widely used in small and medium-sized mines, water conservancy, highway and bridge construction and other projects.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
| Sales model | Unit | XE380DK | |
| Operating weight | Kg | 38200 | |
| Bucket capacity | m³ | 1.9-2.3 | |
Engine | Model | / | QSL9 |
| Direct injection | / | √ | |
| Four strokes | / | √ | |
| Water cooling | / | √ | |
| Turbo-charging | / | √ | |
| No. of cylinders | / | 6 | |
| Output power | kw/rpm | 214/2100 | |
| Maximum torque/speed | N.m/rpm | 1344/1300 | |
| Displacement | L | 8.9 | |
Main performance | Travel speed | km/h | 5.6/3.3 |
| Swing speed | r/min | 9.6 | |
| Gradeability | ° | 35 | |
| Ground pressure | kPa | 69 | |
| Bucket digging force | kN | 292 | |
| Arm digging force | kN | 209 | |
| Maximum traction | kN | 285 | |
Hydraulic system | Rated flow of main pump | L/min | 2×330 |
| Main safety valve pressure | MPa | 34.3/37.3 | |
| Travel system pressure | MPa | 34.3 | |
| Rotary system pressure | MPa | 26.5 | |
| Pilot system pressure | MPa | 3.9 | |
Oil Capacity | Fuel tank capacity | L | 660 |
| Hydraulic tank capacity | L | 350 | |
| Engine oil capacity | L | 30 | |
Appearance size | Overall length | mm | 11436 |
| Overall width | mm | 3225 | |
| Overall height | mm | 3695 | |
| Width of platform | mm | 3220 | |
| Track length | mm | 5035 | |
| Overall width of chassis | mm | 3190 | |
| Track width | mm | 600 | |
| Length to center of rollers | mm | 4040 | |
| Track gauge | mm | 2590 | |
| Counterweight clearance | mm | 1197 | |
| Min. ground clearance | mm | 500 | |
| Min. tail swing radius | mm | 3700 | |
| Track height | mm | 1105 | |
Working scope | Max. digging height | mm | 10508 |
| Max. dumping height | mm | 7300 | |
| Max. digging depth | mm | 7147 | |
| Maximum depth cut for 2240mm(8 ft) level bottom | mm | 6980 | |
| Max. vertical wall digging depth | mm | 6542 | |
| Max. digging radius | mm | 10793 | |
| Min. swing radius | mm | 4560 | |
Standard configuration | Length of boom | mm | 6400 |
| Length of arm | mm | 2900 | |
| Bucket capacity | m³ | 1.9 | |
Optional configuration | Length of boom | m³ | / |
| Length of arm | m³ | 2670 | |
| Bucket capacity | m³ | 2.1 Strengthened bucket 2.3 Earth Working bucket | |
XCMG STORY
XCMG RECONDITIONED MACHINE
XCMG reconditioned machine is the second-hand machine program launched by XCMG for the
post market. XCMG takes advantage of its dealers network to collect the second-hand XCMG
machine that falls into strict standards: good condition, full function and low service hours. The
returned machine is then disassembled, repaired, painted, rebuilt and tested officially by XCMG,
and the product life is therefore extended. The price of XCMG reconditioned machine is far
lower than that of the new one, but its performance and safety are not compromised thanks to
XCMG's state-of-the-art processes and technologies. In order to dispel customers' concerns,
XCMG establishes a strict evaluation system for reconditioned machines and invites SGS to issue
third-party certification.
OUR TEAM
150+ SPECIALISTS
150+ specialists participate in the reconditioning process.
Inspection Team
Certified professional accessors who have worked for more than 10 years conduct comprehensive analysis on the machine.
Reconditioning and Repairing Team
Refurbish core parts to restore capacity. Replace all worn parts with genuine XCMG new ones.
Issuing Report Team
Certified examiner inspects, tests and certifies the reconditioned machine. SGS provides the third-party inspection certificate.
OUR FACTORY
REMANUFACTURING FACTORY
RECONDITION PROCESSES
RECONDITION PROCESSES OF THE USED
We maintain a meticulous and rigorous attitude toward quality, focusing on extraordinary creativity,
elaborate designs and exquisite craftsmanship.
COLLECTION
Examine the working conditions, conduct static and dynamic assessment on the used machine. Only machines with
light deprecation, low working hours and full functions can be collected.
INSPECTION
Certified professional accessors who have worked for more than 10 years conduct comprehensive analysis on the
machine. More than 300 details are checked and compared to XCMG standard. Recondition plan is then decided.
RECONDITIONING AND REPAIRING
Refurbish core parts to restore capacity. Replace all worn parts with genuine XCMG new ones.
TESTING
Follow the test procedure, ensure the performance and durability of the machine. Unqualified products are returned to step 3.
READY FOR DELIVERY
Ready for Delivery!!!
ISSUING REPORT
Certified examiner inspects, tests and certifies the reconditioned machine. SGS provides the third-party inspection certificate.
PAINTING
The whole machine is repainted to restore its appearance. Bright as new.
FAQ
FREQUENTLY ASKED QUESTIONS
1.What’s the warranty policy for XCMG reconditioned machines?
The warranty policy does not cover the covering parts and wearing parts. For engine, gearbox, hydraulic pump,
distriutor valve and electric system, the warranty period will be 3 months or 500 working hours whichever comes first.
If there is any problem within warranty period, XCMG will provide solutions accordingly.
2.How about the quality of your machine?
The procedure of recondition is taking the same criterion of brand new XCMG machines, therefore, quality of machines
will be guaranteed. They are ready to work for you and XCMG will provide test report from professtional institute.
3.Are you the original manufacturer?
Yes! XCMG is leading construction machinery industry in China and XCMG can provide a complete range of constrcution machineries.
4.Can you satisfy my special requirement?
As the manufacturer,XCMG will review the special requirement and recondition it as per request (if possible).
5.What is accpetable payment terms?
Usually XCMG will accept T/T before shipment or 100% Letter of Credit at sight.
If any other questions, please feel free to contact with us.
If any other questions, please feel free to contact with us.
