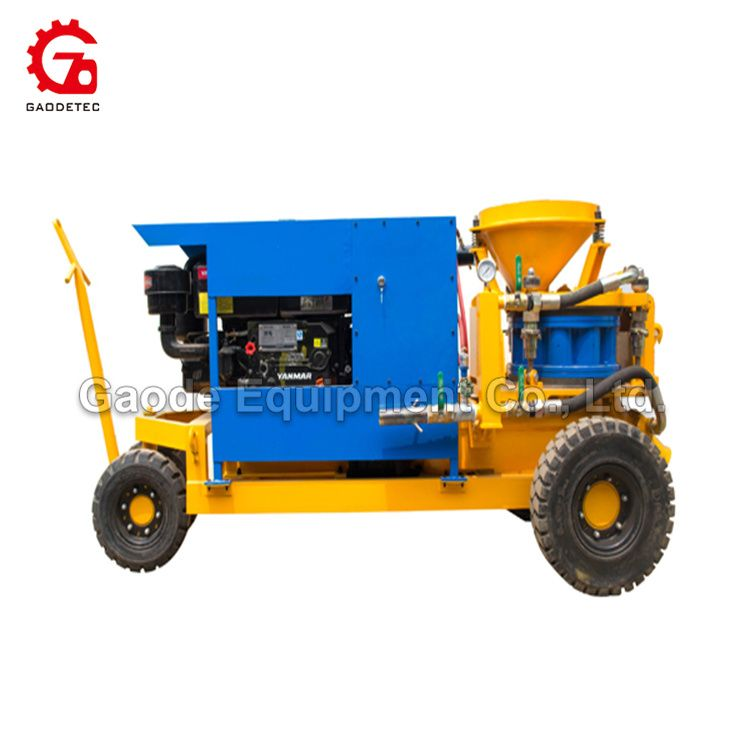

Gaodetec GSZ3000D diesel wet mix gunite machine for tunnel building
.jpg.webp)
GSZ3000D
Specs & Compare
Details
Select 3 models for comparison
Certification
Dimension(L*W*H)
Weight
Power(W)
Voltage
Model Number
Brand Name
Place of Origin
Air Consumption
Hose Inner Diameter
Max Aggregate Size
Max. Conveying Distance
Engineering & Construction Machinery
GSZ3000D
CE
2.55× 1.05× 1.25m
1300kg
--
--
GSZ3000D
Gaodetec
China
10~ 12m3 /min
64mm
15mm
35m(wet) 200m(dry)
+ Add a Product
+ Add a Product
Summary
- Certification:CE
- Dimension(L*W*H):2.55× 1.05× 1.25m
- Weight:1300kg
- Model Number:GSZ3000D
- Brand Name:Gaodetec
- Place of Origin:China
- Air Consumption:10~ 12m3 /min
- Hose Inner Diameter:64mm
- Max Aggregate Size:15mm
- Max. Conveying Distance:35m(wet) 200m(dry)
Specifications
- Weight:1300.000kg
- Condition:New
- Moving Type:Wheel
- output:3-5m3/h
- Suitable Mix Ratio(Cement/Sand):≤1:4~5
- Conveying Pressure:0.2-0.4MPa
- Air Consumption:10~ 12m3 /min
- Diesel Engine:20hp,2200rpm
- Material Charging Height:1.1m
- Rotor Speed:7.5~11r/min
- Dosing pump model:BHA530 dosing tank
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Product Description
GSZ3000D 5m3/h diesel concrete gunite machine
GSZ3000D gunite machine is a universal concrete spraying machine for the processing of wet or dry mix. The machine is suitable either for manual spraying or by means of a robotic arm.
GSZ3000D is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.
Basic: Electric drive can be combined with type chassis.
Extended (optional): Air motor drive or diesel drive combined with Skidor Rail- wheel.
.jpg.webp)
Main Features
1. With very low equipment cost to get wet-mix concrete shotcrete.
2. Within the 30 meters conveying distance, it is a perfect wet-mix concrete shotcrete machine.
3. Shotcrete material flow is even and continuous.
4. Both dry-mix and wet-mix concrete spraying.
.jpg.webp)
Technical Parameter
Image Display
Contact Us
Contact us for catalog and price of shotcrete machine
In order to confirm which type shotcrete machine suitable for your job, could you please help us to confirm the following information:
1. What's the project you will use the machine do, for slope protect or swimming pool or other?
2. Do you need dry-mix shotcrete machine or wet-mix shotcrete machine?
3. What's the output you need, 3m3/h, 5m3/h, 7m3/h, 9m3/h, 10m3/h or other?
4. What's the maximum particle size of the material, less than 10mm, 15mm, or 20mm?
5. About the engine, do you need air motor, electric or diesel? What voltage it is on your local? It is 3 phase 380V 50Hz in China.
