- Summary
- Specifications
- Maximum Digging Depth:4630mm
- Operating Weight:14ton
- Model Number:XE155WD
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
- Bucket capacity:0.58m3
- weight:14000.000kg
- Condition:New
- Moving Type:Other

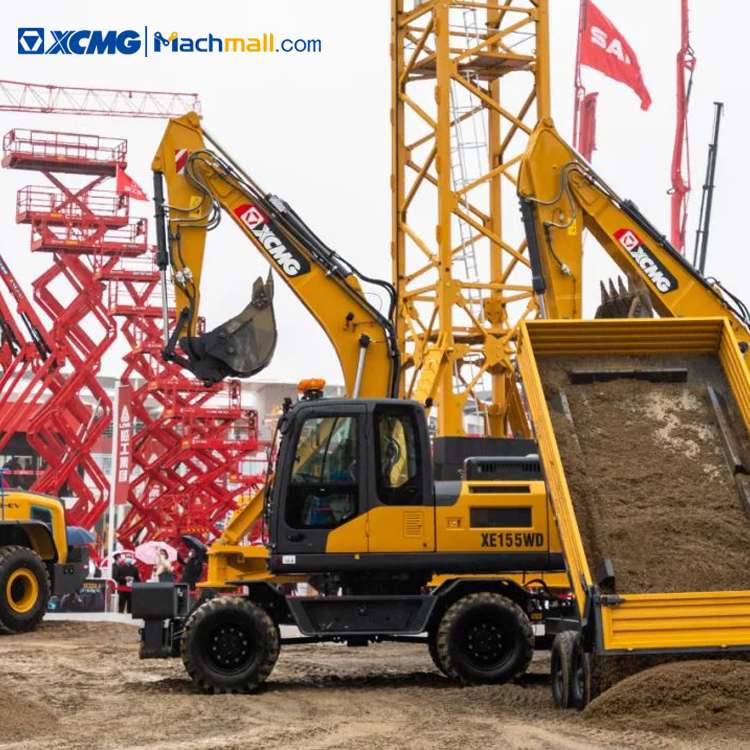

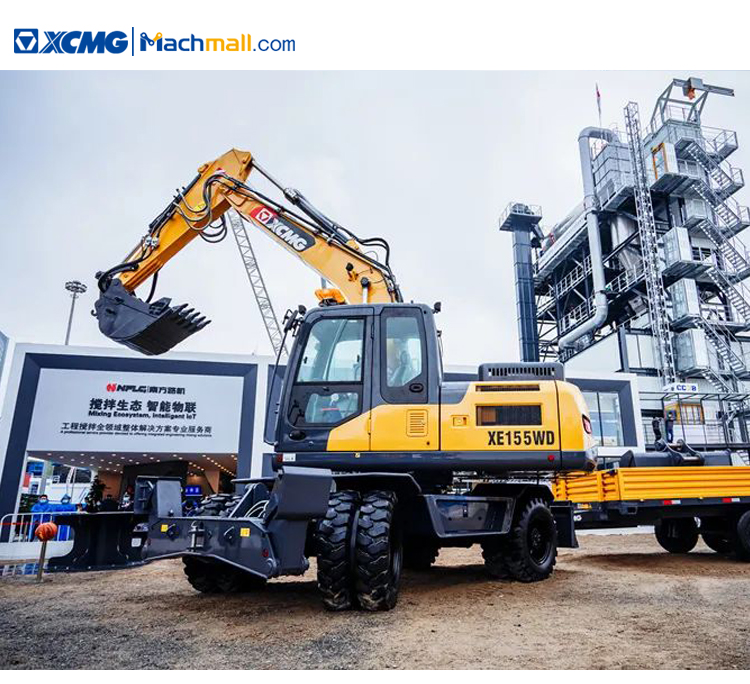

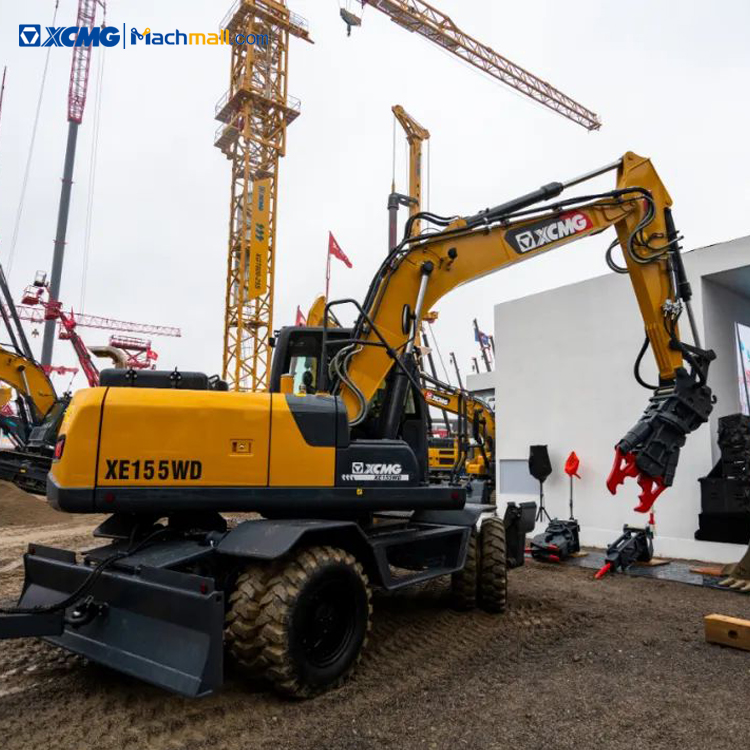

XCMG Official XE155WD 14 ton 0.58m3 China wheel excavator.
XCMG wheel excavator XE155WD is powerful , flexible and exquisite enough to cope with a variety of working conditions.
Wheel excavator XE155WD plays an important role in the aspects of airport, port, oil field, urban construction, irrigation and water conservancy and rapid repair, and brings rich value returns for customers.
1, The walking speed is up to 40km/h, and the transition is faster.
2, Greater operating weight, better operating stability;
3, New intelligent control mode, efficient and fuel saving;
4, The key position of the working device adopts forging technology, which is more reliable and durable.
5, Powerful Perkins engine.
|
Model |
Unit |
XE155WD |
|
Engine model |
/ |
Perkins |
|
Output power of engine |
Kw/r/min |
106/2000 |
|
Bucket capacity |
cbm |
0.58 |
|
Operating Weight |
KG |
14000 |
|
Max.torque/engine |
N.m |
586 |
|
Displacement |
L |
4.5 |
|
Fuel tank capacity |
L |
250 |
|
Rated flow of main pump |
L/min |
2x160 |
|
Pressure of main safety valve |
Mpa |
31.4/34.3 |
|
Hydraulic tank capacity |
L |
135 |
|
Slewing speed |
r/min |
12 |
|
Digging capacity of tcuket |
KN |
95 |
|
Digging capacity of tcuket rod |
KN |
72 |
|
Min.turning radius |
mm |
6500 |
|
Rated speed |
KM/h |
11/33 |
|
Gradient capability |
% |
70 |
|
A Total length |
mm |
7778 |
|
B Total width |
mm |
2495 |
|
C Total heigth |
mm |
3305 |
|
Counterweight ground clearance |
mm |
1230 |
|
Min.ground clearance |
mm |
355 |
|
Min.tail swing radius |
mm |
2300 |
|
Wheelbase |
mm |
2800 |
|
Track gauge |
mm |
1920 |
|
Total width of chassis |
mm |
2495 |
|
Distance between front axle and turning center |
mm |
1700 |
|
Hood height |
mm |
2430 |
|
The maximum digging depth of dozer |
mm |
105 |
|
Max. digging radius |
mm |
7780 |
|
Min. swing radius |
mm |
7570 |
|
Max. digging height |
mm |
8190 |
|
Max. dumping height |
mm |
5855 |
|
Max. digging depth |
mm |
4630 |
|
Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
4325 |
|
Max. vertical wall digging depth |
mm |
4150 |
