Summary
- Rated Load:1500kg
- Dimension(Long* Breadth * High):8150*2975*3467 mm
- Type:front loader
- Place of Origin: Jiangsu, China
- Model Number:Lw150fv
- Brand Name: XCMG
Specifications
- Weight:4450.000kg
- Moving Type:Other
- Engine Brand:Other
- Rated Load:1-2 ton
- Bucket Capacity:0.5 - 2m³
- Brand:XCMG
- Rated Bucket Capacity:1m3
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

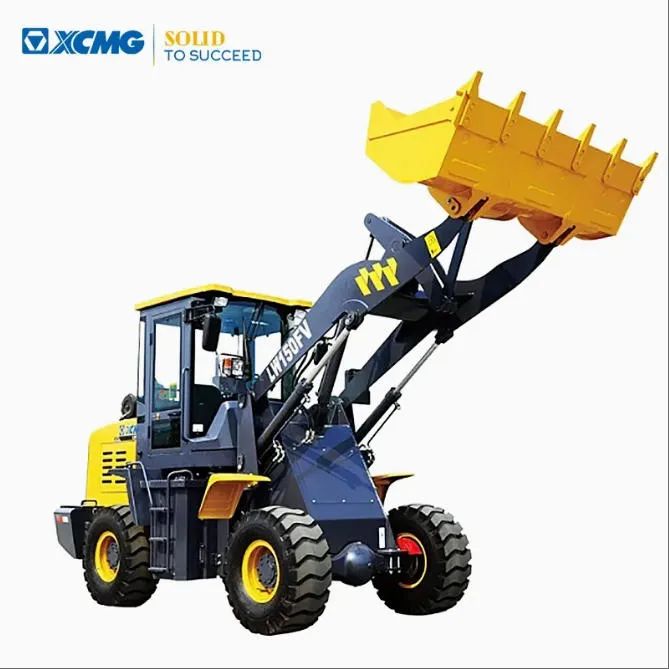

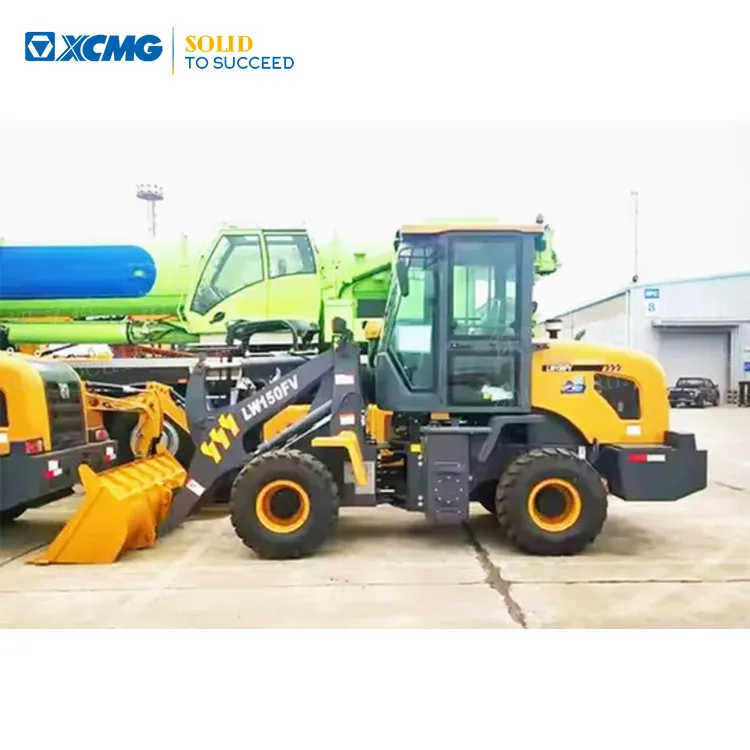

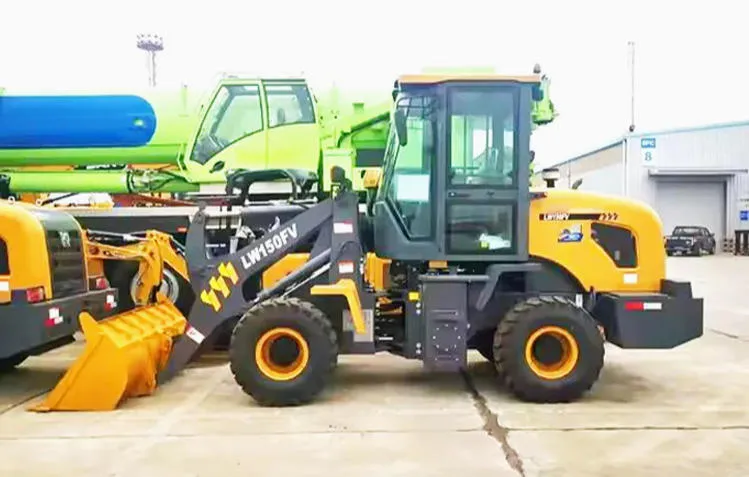

XCMG 1.5ton hydraulic small mini articulated wheel loader LW150FV for sale
1. LW150FV is equipped with an electronically controlled high-pressure common-rail national three engine, high-quality split-type double-transformer, four-wheel drive, full hydraulic steering, strong power, high efficiency and higher environmental adaptability .
2. The hydraulic oil replacement cycle is extended to 2000 hours, far exceeding the level of the same industry, greatly reducing the user's use cost.
Performance specialty
1. Adopting long wheelbase (2300mm) design, adapting to various overweight working conditions, leading the industry in stability.
2. The unloading height of more than 3.3 meters can meet the needs of various occasions.
3. The whole oil cylinder and pin are treated by quenching and tempering process, leading in hardness and high reliability.
|
Item
|
Value
|
|
Product Name
|
Wheel loader
|
|
Model
|
LW150FV
|
|
Rated Loading Weight
|
1500 KG
|
|
Dimension(Long * Breadth * High)
|
5890*1877*2835 mm
|
|
Machine Weight
|
4350 kg
|
|
Power
|
50.2KW
|
|
Bucket capacity
|
1. 0m³
|
|
Dump clearance at maximum lift
|
3000 mm
|
|
Reach at maximum lift
|
1100~1190 mm
|
|
Wheel base
|
2960 mm
|
|
Tread
|
1550 mm
|
|
Max.breakout force
|
170 KN
|
|
Max.horse power
|
95 KN
|
|
Min. turning radius over tyres
|
5165 mm
|
|
Articulation angle
|
35°
|
|
Gradeability
|
25°
|
|
Tyre size
|
23.5-25 PR
|
