Summary
- Dimension(Long * Breadth * High):5477*3725*3517mm
- Machine Weight:25500kg
- Model Number:TY230
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO
Specifications
- Weight:18200.000kg
- Condition:New
- Moving Type:Crawler
- Moving Type:Crawler Bulldozer
- Minimum turning radius:3200mm
- Maximum traction power:142kN
- Warranty of core components:1 Year
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

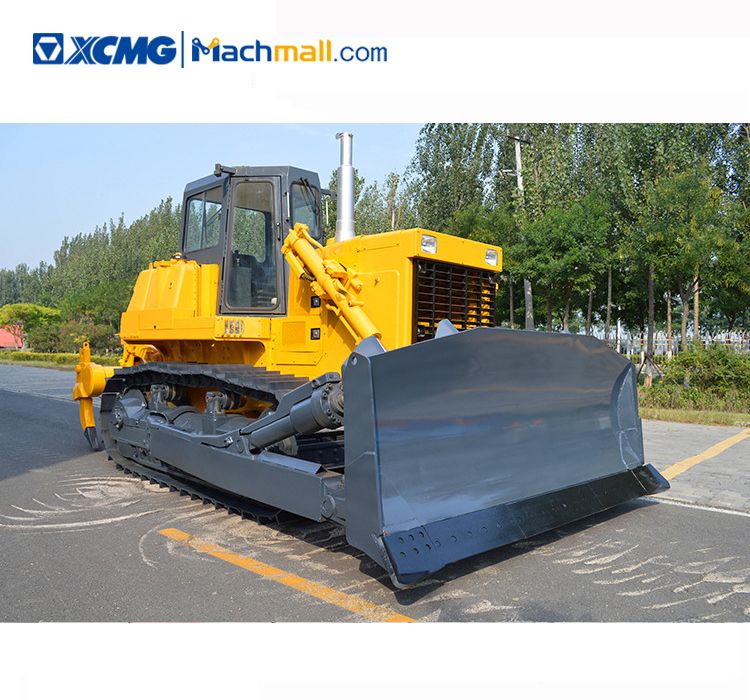

XCMG Official 230hp Cheap Crawler Bulldozer ty 230.
XCMG bulldozer TY230 which has excellent power, reliability and a long service life. XCMG bulldozer TY160 crawler type bulldozer has been developed by the domestic design.
XCMG Bulldozer TY230 Professional power:
* Pulse exhaust manifold for improving performance and emission.
* With a high torque reserve and a low speed under the maximum torque condition for a good adaptation.
* High quality cast iron and special designed valve guide for the seal performance and durability.
* Robust and precise balance design for crankshaft.
* Advanced turbocharger and water cooler technology.
* 4 valves per cylinder for high power and low fuel consumption.
|
Name |
Remarks |
Specifications |
|
Overall size of the machine（mm） |
Straight shovel, traction rod |
5128×3416×3120 |
|
Straight shovel, three toothed soil loosen |
6215×3416×3120 |
|
|
The use quality of the whole machine（kg） |
Straight shovel, traction rod |
17100 |
|
Straight shovel, three toothed soil loosen |
18700 |
|
|
Maximum traction power (kN) |
148 |
|
|
Minimum turning radius (mm) |
3100 |
|
|
Maximum climbing performance (°) |
30 |
|
|
Minimum ground clearance (mm) |
No crawler |
400 |
|
Average ground specific pressure (MPa) |
0.065 |
|
|
Forward speed (km/h) |
F1 |
3.1 |
|
F2 |
5.47 |
|
|
F3 |
9.07 |
|
|
Back speed (km/h) |
R1 |
4.03 |
|
R2 |
7.12 |
|
|
R3 |
11.81 |
|
|
Tracked ground length (mm) |
2430 |
|
|
Caterpillar center distance (mm) |
1880 |
|
|
Production efficiency (m3/h) |
30m distance |
350 |
|
Engine |
||
|
Model |
Weichai WD10G178E25 |
|
|
type |
Water cooling,straight line,four stroke,direct injection |
|
|
The number of cylinder - bore * stroke (mm) |
6－126×130 |
|
|
Rated power (kW) |
131 |
|
|
Rated speed (r/min) |
1850 |
|
|
Maximum torque (N.m/r/min) |
830/1000～1200 |
|
|
Fuel consumption rate (g/kW.h) |
≤210 |
|
|
Walking system |
||
|
type |
Swing type and balance beam suspension structure |
|
|
Pitch (mm) |
203.2 |
|
|
Number of wheels of single side belt |
2 |
|
|
Number of single side pulley |
unilateral and 2 bilateral |
6 |
|
Crawler height (mm) |
60 |
|
|
Working device |
||
|
Straight shovel single shovel capacity (M3) |
3.9 |
|
|
The maximum lifting height of the blade (mm) |
1095 |
|
|
The maximum depth of soil cutting blade (mm) |
545 |
|
|
The maximum tilt blade height (mm) |
860 |
|
|

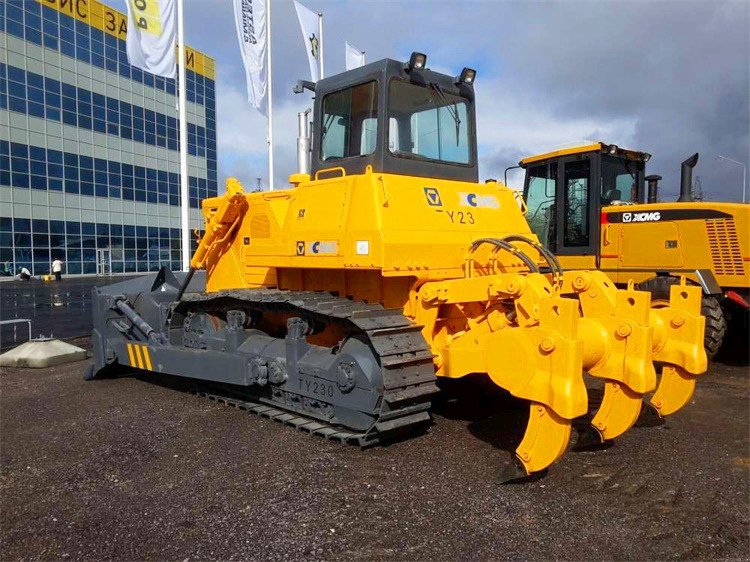

Type of soil looser |
Three teeth |
|
|
Three tooth looser tooth distance (mm) |
950 |
|
|
Three tooth looser |
Soil depth (mm) |
572 |
|
Elevation (mm) |
702 |
|
|
The three tooth scarifier weight (kg) |
1621 |
|
