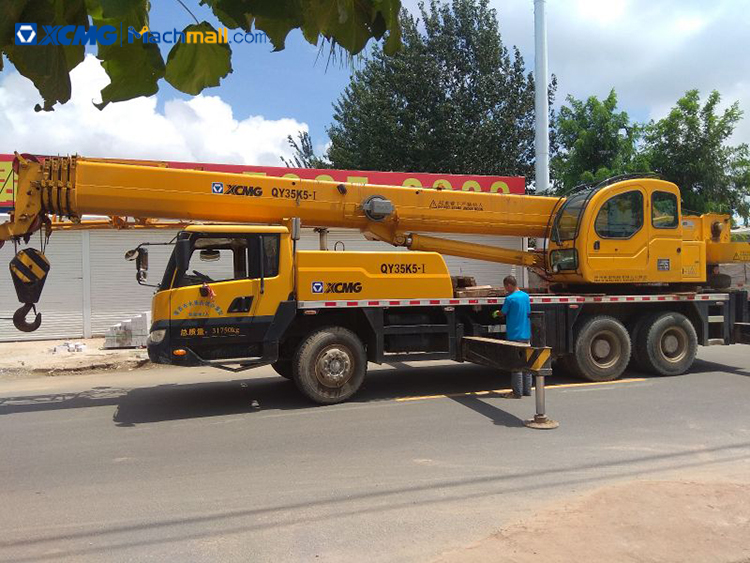

35 ton 5 jib XCMG construction crane QY35K5-I for sale

  • 35 ton 5 jib XCMG construction crane QY35K5-I for sale
  • 35 ton 5 jib XCMG construction crane QY35K5-I for sale
  • 35 ton 5 jib XCMG construction crane QY35K5-I for sale
  • 35 ton 5 jib XCMG construction crane QY35K5-I for sale
  • 35 ton 5 jib XCMG construction crane QY35K5-I for sale
  • 35 ton 5 jib XCMG construction crane QY35K5-I for sale

Share:
35 ton 5 jib XCMG construction crane QY35K5-I for sale
FOB for Cranes Reference Price:Get Latest Price
$10000.00-$1000000.00 1 / EA (Min. Order)
Model: QY35K5-I
Engine: SHANGCHAI
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
35 ton 5 jib XCMG construction crane QY35K5-I for sale
35 ton 5 jib XCMG construction crane QY35K5-I for sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
Summary
  • Model Number:QY35K5-I
  • Brand Name:XCMG
  • Place of Origin:Xuzhou,Jiangsu,China
  • Max. Lifting Height:46.8m
  • Max. Lifting Load:35ton
  • Rated Loading Capacity:35 ton
  • Application:Construction
  • Certification:CE/ISO9001
Specifications
  • weight:31750.000kg
  • Condition:New
  • Moving Type:Wheel
  • Overall dimension:12300*2500*3350mm
  • Engine rated power:206/2200kW/(r/min)
  • Engine rated torque:1112/1400N.m/(r/min)
  • Max. travel speed:80km/h
  • Min. turning diameter:22m
  • Min. ground clearance:275mm
  • Max. grade ability:40%

35 ton 5 jib XCMG construction crane QY35K5-I for sale

35 ton 5 jib XCMG construction crane QY35K5-I.



XCMG construction crane QY35K5-I excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.



Performance Characteristics:



1. Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.



2. Advanced built-in boom head contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.



3. Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.



4. Ferrule-type compression joints are used for pipeline, have features of reliable connection, better tightness and less leakage.

35 ton 5 jib XCMG construction crane QY35K5-I for sale

Description Unit Parameter value
Overall length mm 12300
Overall width mm 2500
Overall Height mm 3350
Wheel Base mm 4425+1350
Track mm 2074/1834/1834
Total vehicle mass in travel configuration kg 31750
Axle load Front axle kg 6550
Rear axle 25200
Engine Model   SC8DK280Q3
Engine rated power kw/(r/min) 206/2200
Engine rated torque N.m/(r/min) 1112/1400
Max. travel speed km/h 80
Min. turning diameter m 22
Min. ground clearance mm 275
Max. grade ability % 40
Approach angle ° 16
Departure angle ° 13
Braking distance (at 30 km/h, full load ) m ≤10
Oil consumption per 100km L ≤37
Exterior noise level during acceleration traveling dB (A) 88
Noise level at seated position dB (A) 90

35 ton 5 jib XCMG construction crane QY35K5-I for sale35 ton 5 jib XCMG construction crane QY35K5-I for sale35 ton 5 jib XCMG construction crane QY35K5-I for sale35 ton 5 jib XCMG construction crane QY35K5-I for sale35 ton 5 jib XCMG construction crane QY35K5-I for sale35 ton 5 jib XCMG construction crane QY35K5-I for sale
