- Summary
- Specifications
- Model Number:XGC88000
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Rated Lifting Moment:88000t.m
- Rated Loading Capacity:3600 ton
- Application:Construction
- Certification:CE/ISO9001
- weight:5350000.000kg
- Condition:New
- Moving Type:Crawler
- Rated power:3*641kw/rpm
- Main hoisting rope speed:60m/min
- Main luffing rope speed:63m/min
- Climbing ability:6%
XCMG 3600 ton crawler crane XGC88000.
The max rated load moment of XGC88000 crawler crane is 88000tm, the highest among the integrated crawler crane in current global lifting equipment industry.
XCMG crawler crane XGC88000 has created 3 international original technologies, 6 international leading technologies, with more than 80 national patents. Five kinds of working conditions are equipped for XCMG crawler crane XGC88000, including heavy boom working condition, light boom working condition, tower jib working condition, special jib working condition and boom single top working condition.

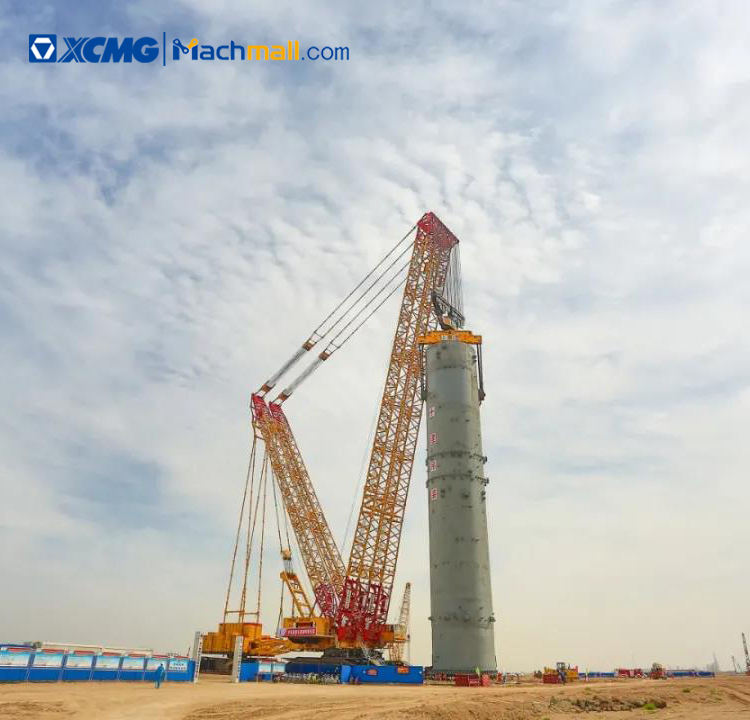

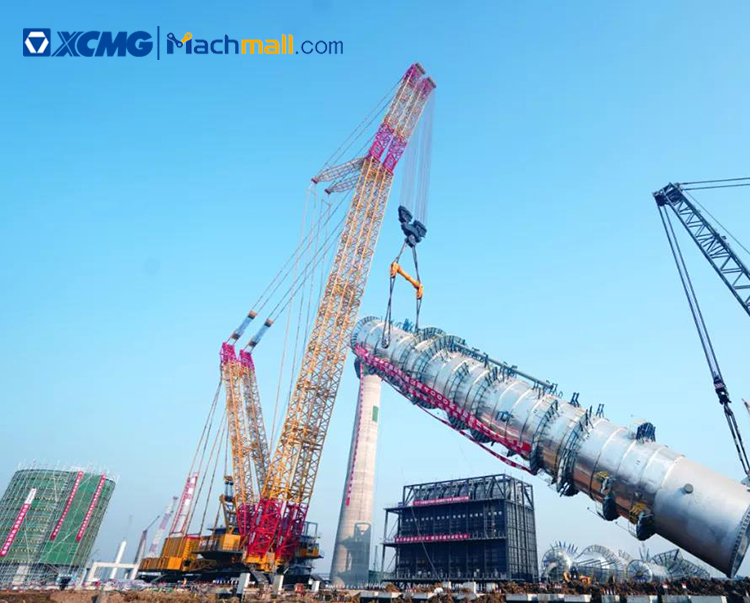

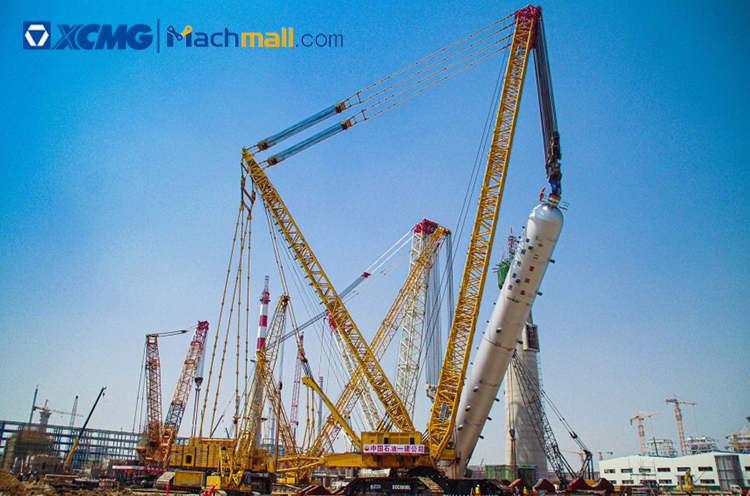

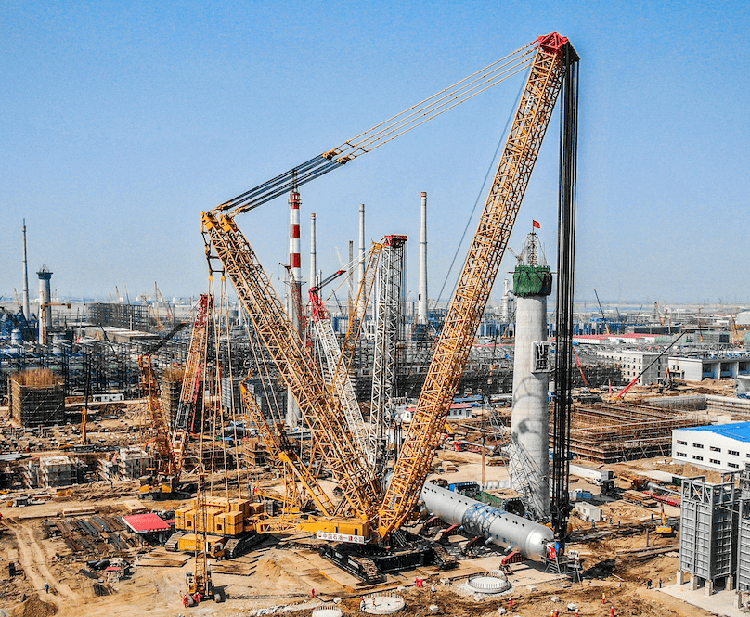

XCMG crawler crane XGC88000 is mainly used for large engineering projects which are related to nuclear, petrochemical, thermal power, coal chemical industry and etc., especially the lifting of some equipments which are high, large, heavy and far, such as frame, dome, tank and so on.
XCMG crawler crane XGC88000 has overcome the technical difficulty that other domestic and overseas crawler crane manufactures fail to solve before, it makes the transformation function come ture for the first time, one crane with two uses, XGC88000 can be transformed to a 2000 tonnage crawler crane through components re-combination, higher use ratio of the crane maximizes users' earnings.
Item | Unit | XGC88000 |
Lifting capacity | ||
Main boom | t | 3600 |
Maximum lifting capacity | t | above 400 tons |
Engine | ||
Model |
| QSK23 |
Rated power | kw/rpm | 3*641 |
Boom | ||
Main boom | t | 120 (heavy duty)/144 (light duty) |
Fixed jib | t | 33 (optional) |
Tower jib | t | 108 (optional) |
Work performance | ||
Main hoisting rope speed | m/min | 60 |
Main luffing rope speed | m/min | 63 |
Rotation speed | rpm | 0.009～0.35 |
Walking mechanism | ||
Walking speed | km/h | 0.1～0.3 |
Climbing ability | % | 6 |
Transport parameters | ||
Machine weight | t | 5350 |
Maximum single transport weight | t | 65 |
Transport size length* width*height | mm | 13000*3500*3400 |
