- Summary
- Details
- Fork Width:175mm
- Fork Length:1220mm
- Max Lifting Height:5000mm
- Rated Loading Capacity:8000kg
- Power Source:Diesel Engine
- Model Number:FD80T
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu,China
- weight:11850.000kg
- Condition:New
- Moving Type:Wheel
- Wheelbase:2500mm
- Max.Gradeability:20%
- Travel Speed:20km/h
XCMG factory new diesel forklift 8 Ton FD80T.
XCMG diesel forklift FD80T High efficiency is also delivered through the performance of the axles, the excellent brake system make sure the forklift operate with safety, the steering axle provide prompt and precise feedback to the driver when steering.
XCMG diesel forklift FD80T provide you with multiple choice as per your real need, we have different reliable engines for choice. All these engine have been tested that they can be trusted through all kinds of tough working condition and get recognition from millions of client across the worldwide.
These engines are specifically designed for the forklift use, XCMG diesel forklift FD80T with low fuel consumption, less noise and vibration, all these features improve the whole performance of the forklift.
Advantages and Highlights:

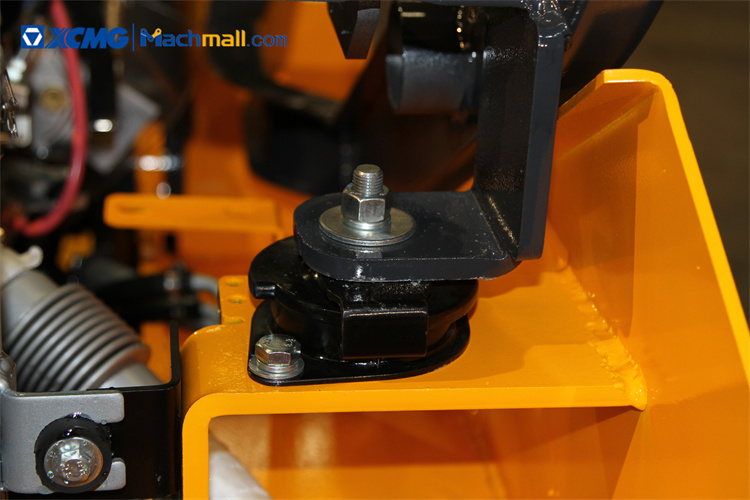

1, One-piece designed of suspension frame.
2, XCMG diesel forklift FD80T new water tank & cooling system.
3, Larger operation space. Optimized steering wheel, operating handle and pedals.
4, XCMG diesel forklift FD80T high- efficiency hydraulic system, lower fuel consumption.
5, Enhanced wide view mast improves the work efficiency and operating safety.
|
Model |
Unit |
FD80T-H |
FD80T-JF |
FD80T-JI |
|
Power Type |
|
Diesel |
||
|
Rated Load Capacity |
Q(kg) |
8000 |
||
|
Load Centre |
C(mm) |
600 |
||
|
Rated Lift Height |
H3(mm) |
3000 |
||
|
Free Lift Height |
H2(mm) |
120 |
||
|
Fork Size (L×W×T) |
mm |
1220×175×75 |
||
|
Rear Overhang |
X2(mm) |
760 |
||
|
Overall Width |
B1(mm) |
2165 |
||
|
Mast Lowered Height |
H1(mm) |
2695 |
||
|
Mast Extended Height (With Backrest) |
H4(mm) |
4020 |
||
|
Side Shift |
X(mm) |
340-2000 |
||
|
Overhead Guard Height |
H5(mm) |
2520 |
||
|
Turning Radius (Outside) |
Wa(mm) |
3700 |
||
|
Min.Aisle width for pallets |
Ast(mm) |
5845 |
||
|
Travel Speed (No Load) |
km/h |
20 |
||
|
Lifting Speed (Full Load) |
mm/sec |
380 |
||
|
Lowering Speed (Full Load) |
mm/sec |
480 |
||
|
Max.Drawbar Pull (Full Load) |
KN |
58 |
||
|
Max.Gradeability (Full Load) |
% |
≤20 |
||
|
Front Tread |
B2(mm) |
1600 |
||
|
Rear Tread |
B3(mm) |
1700 |
||
|
Wheelbase |
Y(mm) |
2500 |
||
|
Total Weight |
kg |
11850 |
||
|
Front Axle Weight Distribution (Full Load) |
kg |
17800 |
||
|
Rear Axle Weight Distribution (Full Load) |
kg |
2050 |
||
|
Front Axle Weight Distribution (No Load) |
kg |
4740 |
||
|
Rear Axle Weight Distribution (No Load) |
kg |
7110 |
||
|
Battery |
V/Ah |
24/90 |
||
|
Engine Manufacturer |
|
CHAOCHAI |
ISUZU |
CUMMINS |
