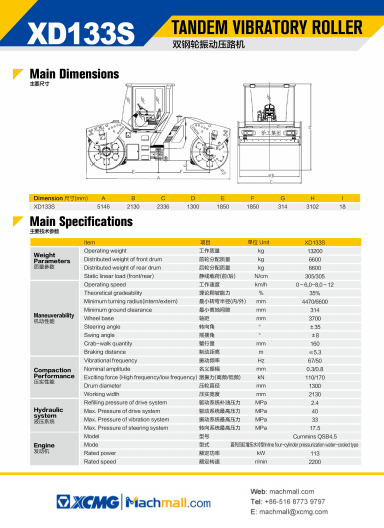

- Product Brochure
- Model Number:XD133S
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Grade Ability:35%
- Travel Speed:0-12km/h
- Static Linear Pressure:305/305N/cm
- Type:Double Drum Road Roller
- Moving Type:Wheel
- Vibration wheel size:1300*2130mm
- Vibration frequency:67/50Hz
- Exciting force:110/170kN
- Nominal amplitude:0.30/0.8mm
- Minimum turning radius (in/out):4470/6600mm

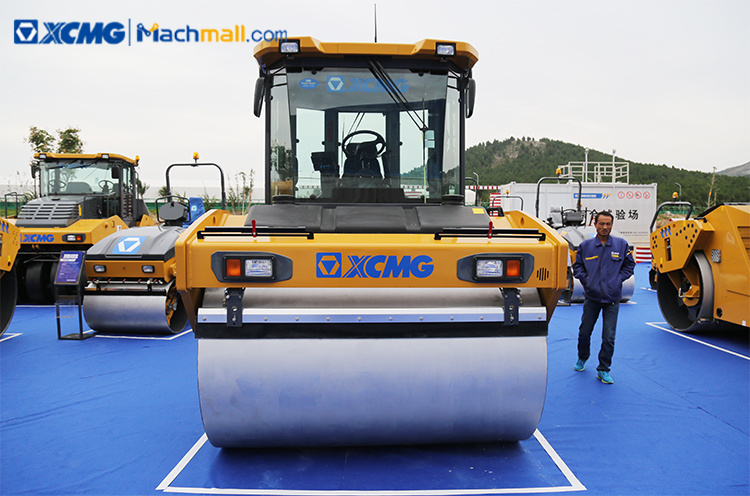

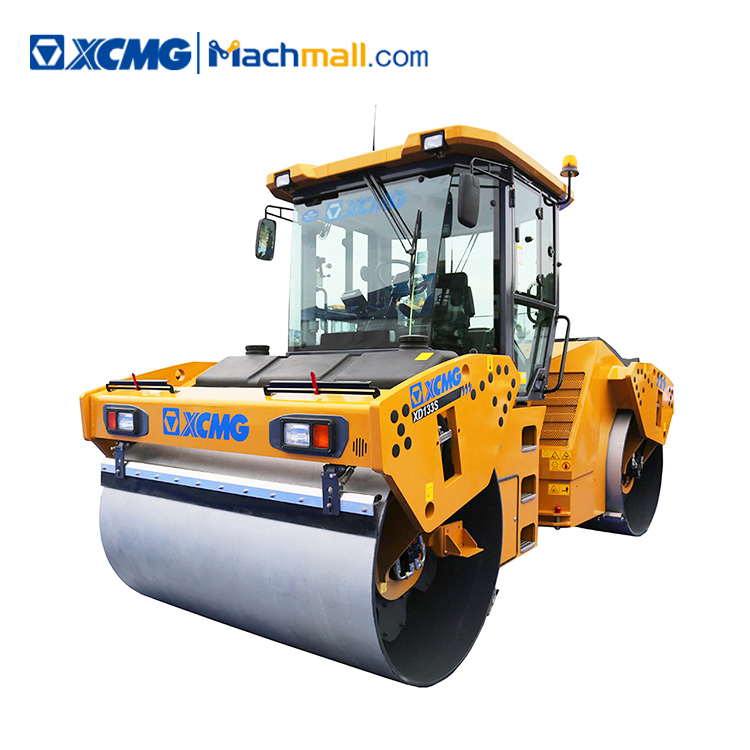

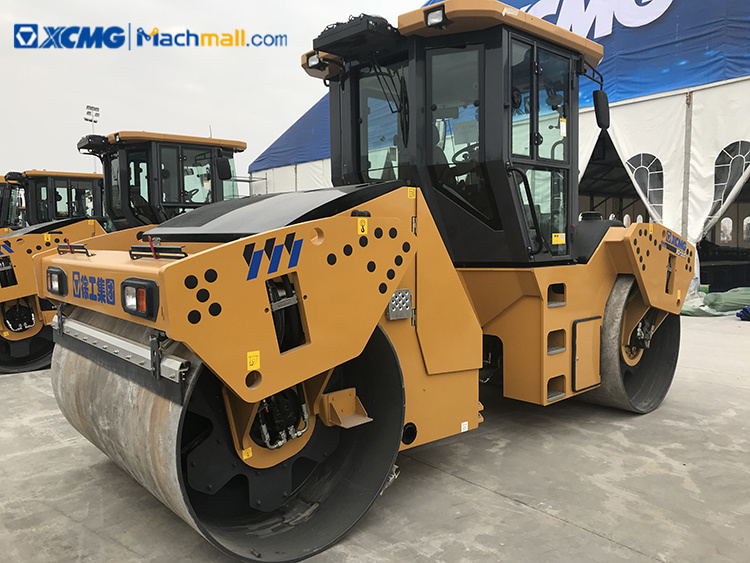

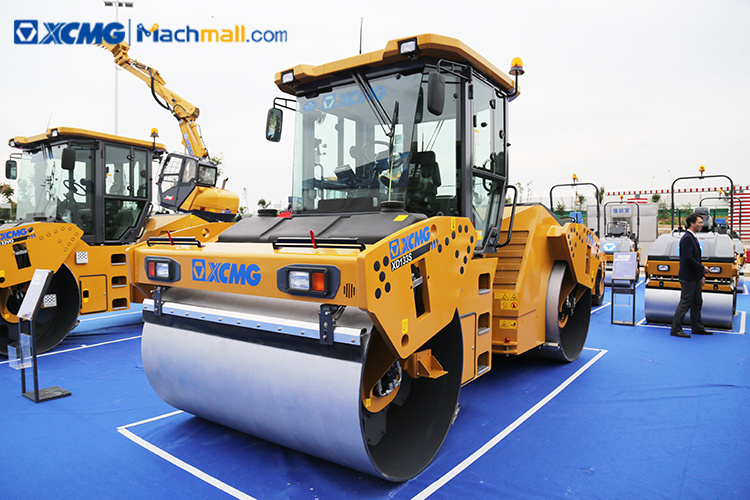

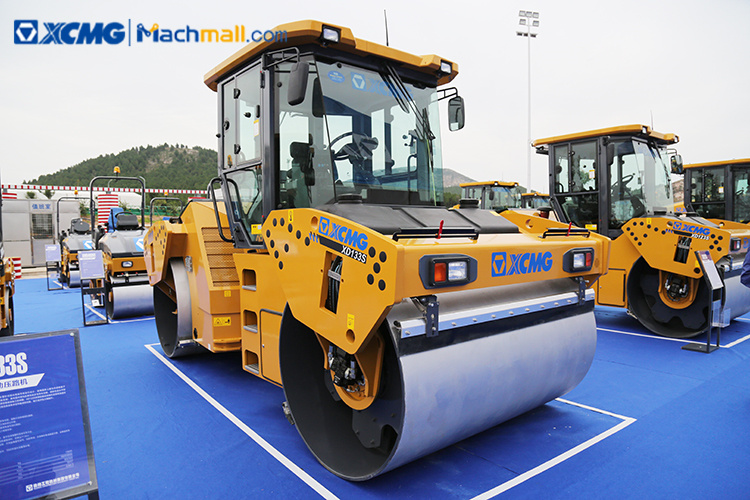

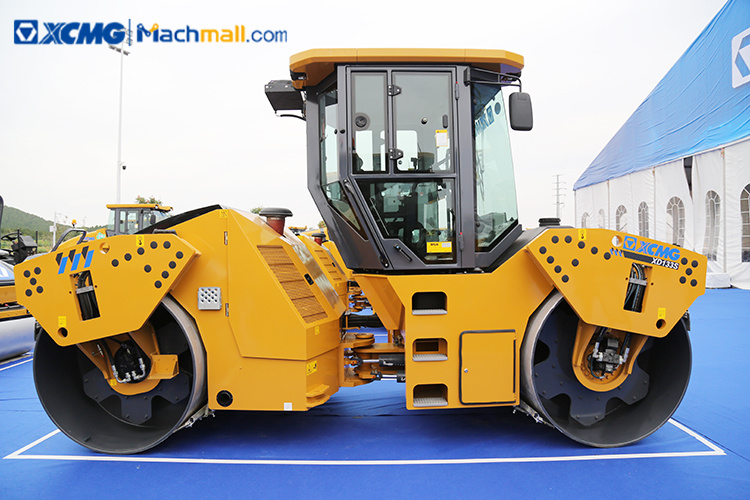

13 ton XCMG double drum vibratory road roller XD133S.
XCMG double drum road roller XD133S is asphalt compaction machinery product which is independent researched and developed by XCMG road machinery business division based on years of experience in compaction machinery research and development.
XCMG double drum road roller XD133S is designed for the compaction of asphalt pavement, asphalt layer of different materials and different thickness, especially suitable for roads, parking lots, airports and other large engineering projects, can also be used for compaction of roadbed and sub-base material, wide application scope.
1. The console can rotate about 35 degrees, improving the driving comfort.
2. The steering wheel can adjust angle according to the need of the driver.
3. Control handle, display, etc. are arranged on the right side to broaden the front view.
4. Speed frequency management system guides the user to compaction operation.
5. Guiding the user to improve operation efficiency.
6. The vibration drum realizes the center of four-in-one combination.
7. Preventing the over-compaction and less-compaction.
