Summary
- Weight:8500kg
- Dimension(L*W*H):4900*1680*3087mm
- Power(W):74.9kW
- Model Number:XD83
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Grade Ability:35%
- Travel Speed:12km/h
- Static Linear Pressure:248N/cm
- Type:Double Drum Road Roller
- Certification:CE/ISO9001

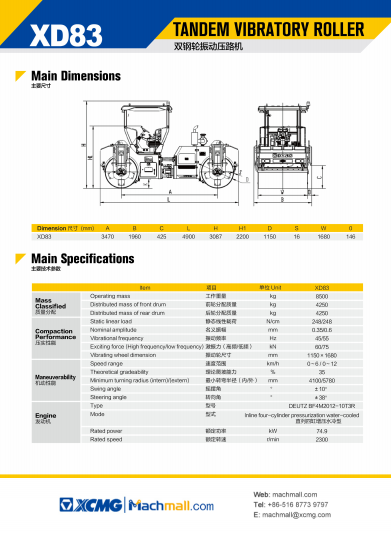

Specifications
- Weight:8500.000kg
- Condition:New
- Moving Type:Wheel
- Nominal amplitude:0.35/0.6mm
- Vibration frequency:88/48Hz
- Exciting force:60/75kN
- Minimum turning radius:4100/5780mm
- Vibration wheel size:1150*1680mm

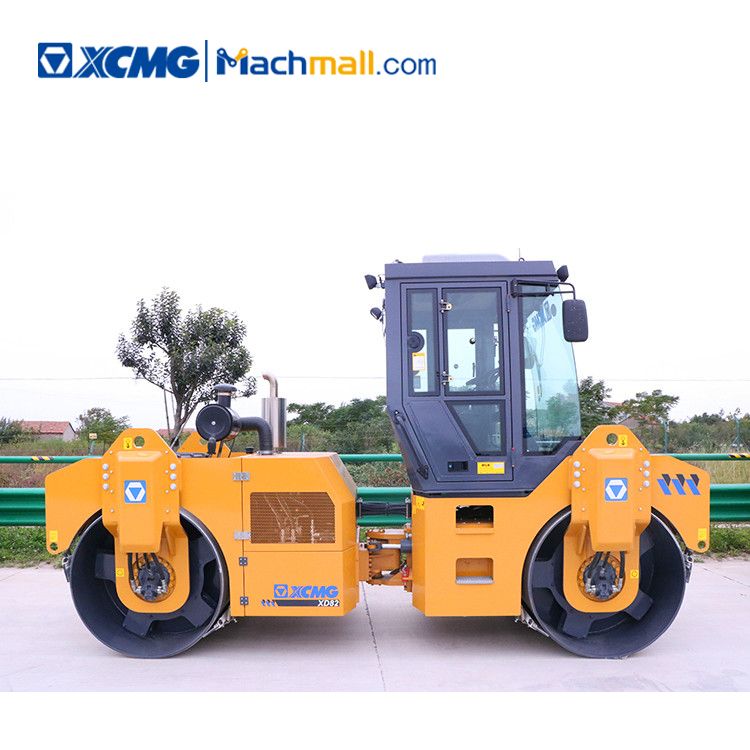

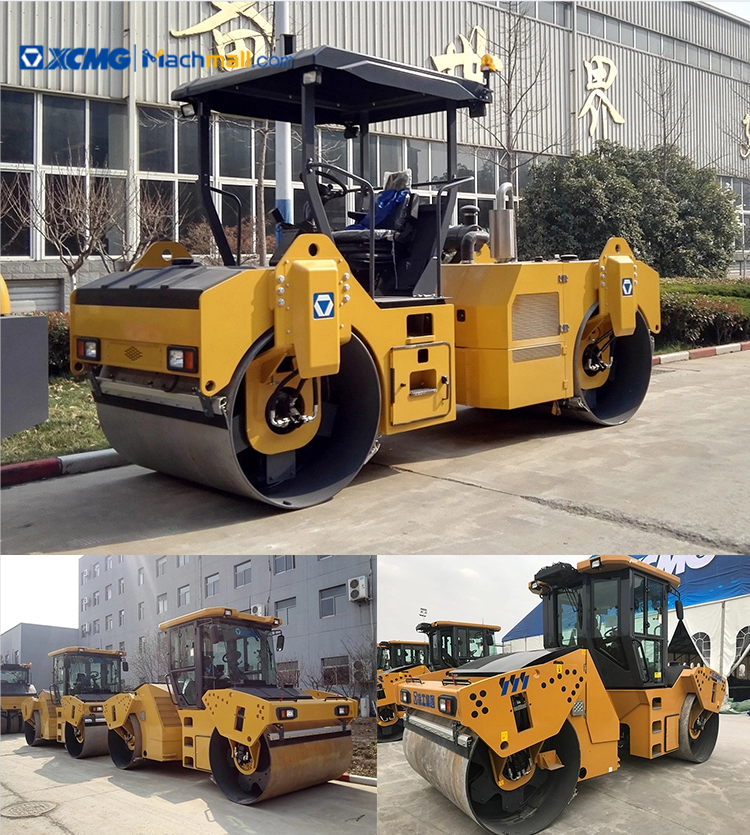

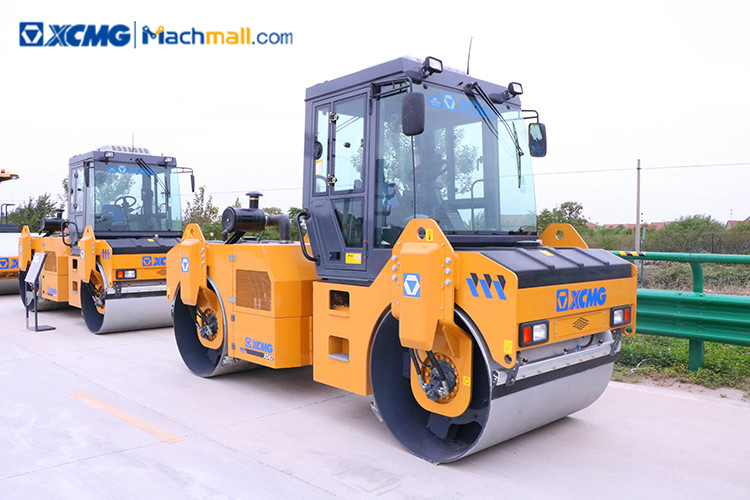

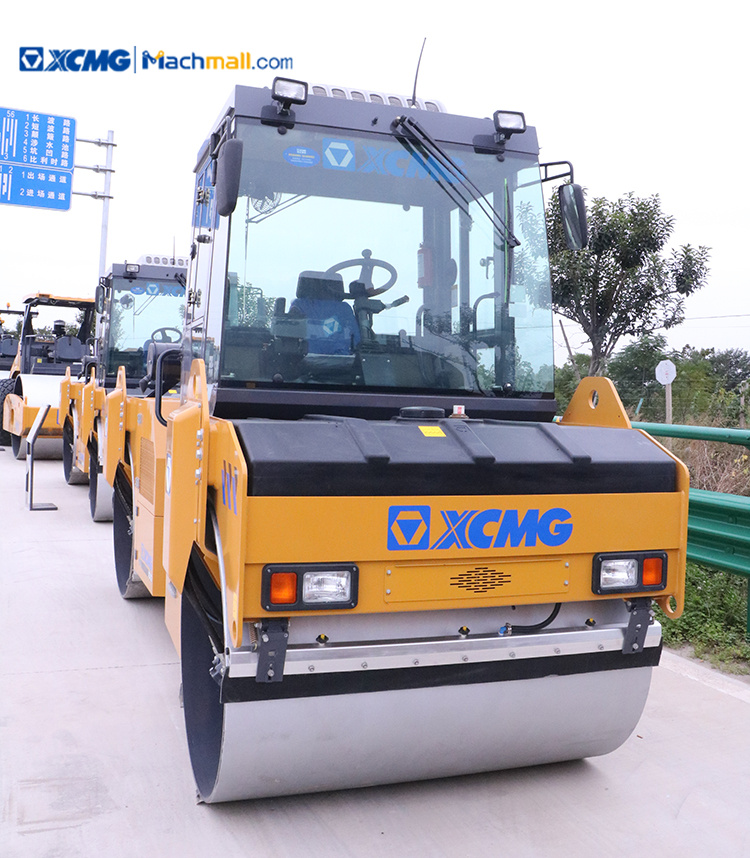

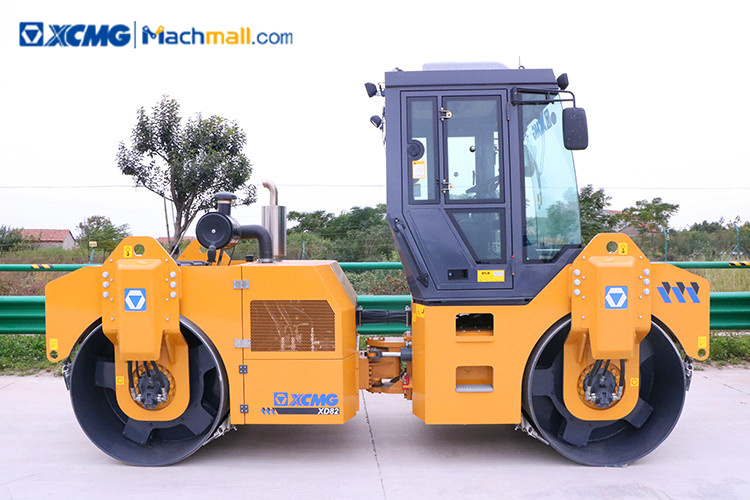

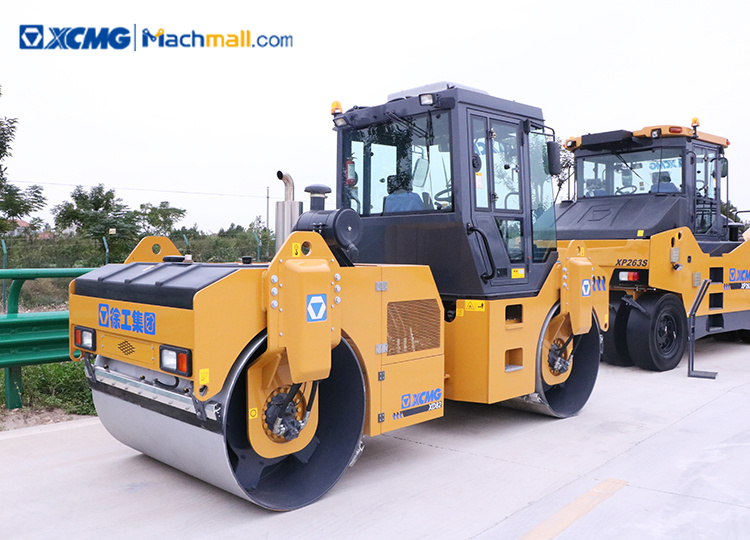

XCMG 8 ton double wheel roller XD83 with DEUTZ engine.
XCMG double wheel roller XD83 is suitable for surface compaction of compaction works such as asphalt engineering and cement engineering and compaction of curbs. XCMG double wheel roller XD83 is also suitable for compaction of base and base layers, sand and gravel materials.
Performance Characteristics:
1. Remarkable compacting performance
Dual frequency and dual amplitude vibrating system and scientific and reasonable static linear load and excitation force ensure the effective compaction of different materials and layers with different thicknesses.
2. Outstanding powertrain Hydraulic drive system
Adopt the closed anti-slip hydraulic drive system composed by imported heavy-load variable pump and motor, ensuring the good driving performance and high gradeability.
3. Reliable Electrical System
The electrical system adopts imported water-proof, dust-proof, vibration-resistant electric connectors for increased reliability. Imported maintenance-free battery has high start-up current and good adaptability.
