XCMG Factory Bridge Erecting Machinery Traveling Cranes Machine for Construction

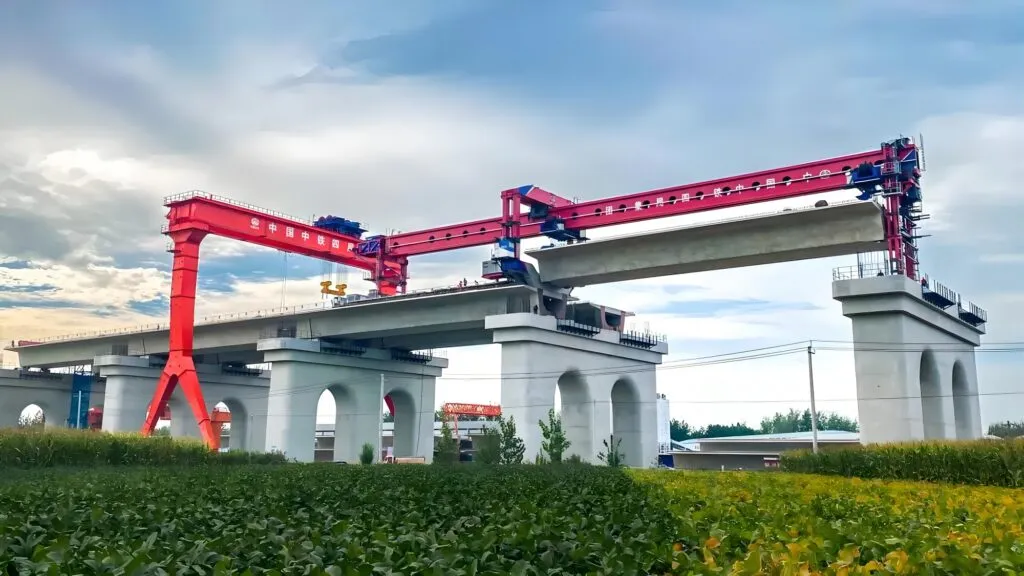

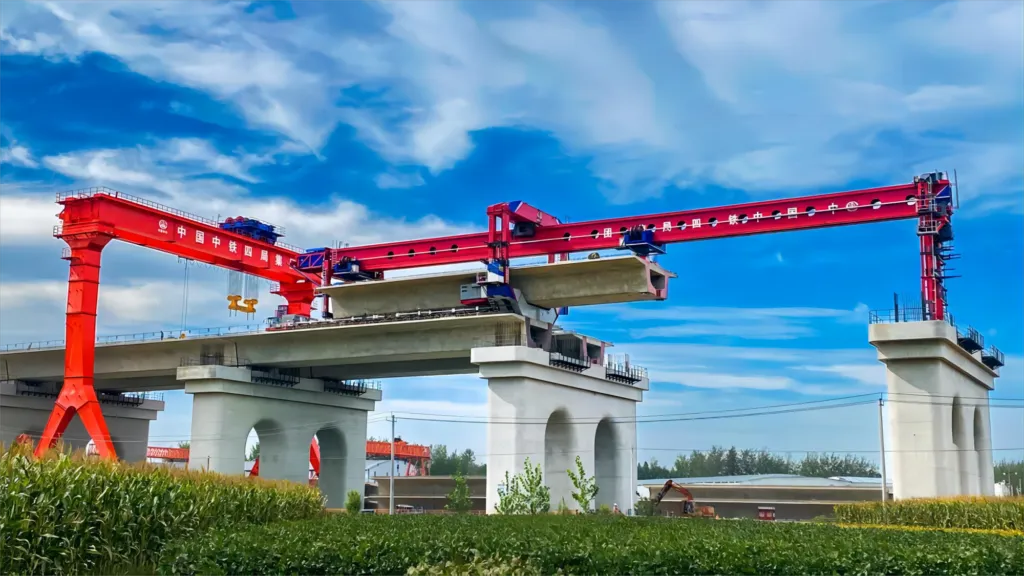

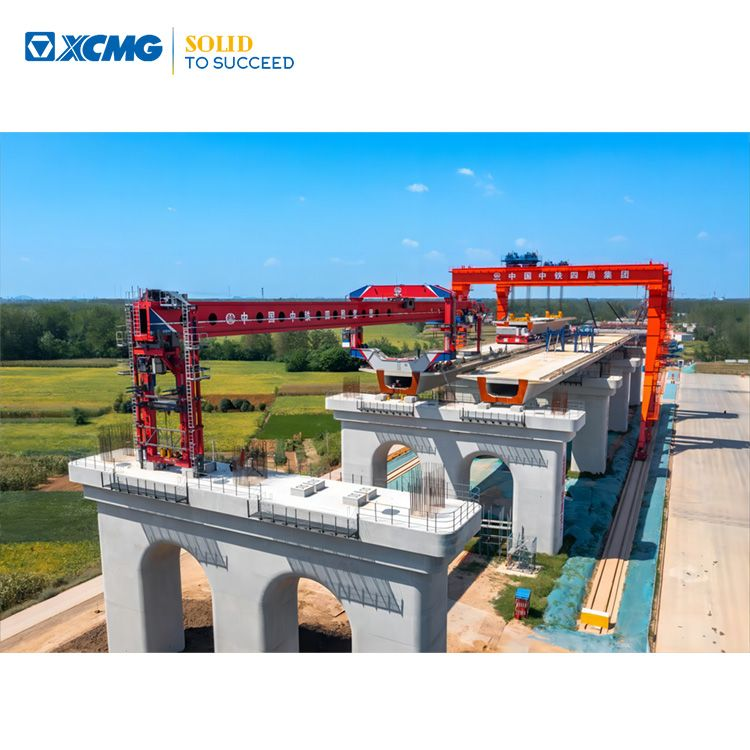

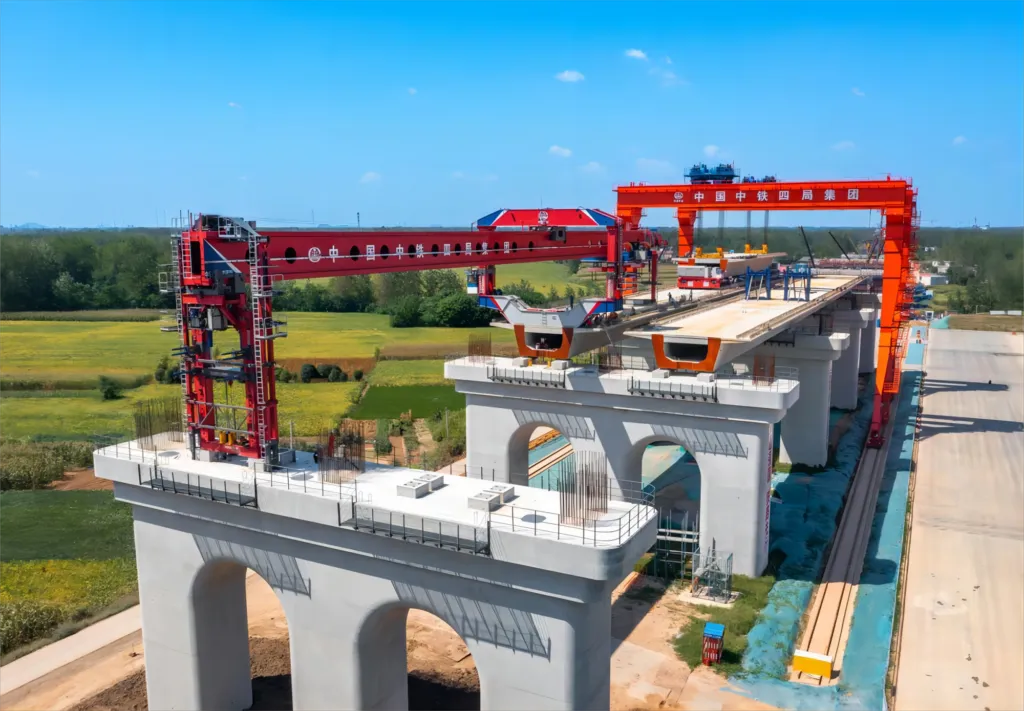

The bridge erecting machine is a special construction machinery that hoists prefabricated reinforced concrete (or prestressed concrete) beam slabs and places them on bridge bearings (piers).

It is mainly composed of the main structure, the trolley system, the hole-passing system and the power system, etc., and can be divided into types such as single-girder bridge-erecting cranes, double-cantilever bridge-erecting machines, and double-girder bridge-erecting machines.

Working principle of the bridge erecting machine The working principle of the bridge-erecting machine is to lift the beam slab through the trolley system, then move along the main structure to the designated position, and then accurately place the beam slab on the pier through the hole-passing system. The appearance of the bridge-erecting machine has greatly improved the efficiency and quality of bridge construction and reduced the investment of manpower and material resources.

FAQ What is the maximum span that this bridge-building machine can handle? The maximum span that this bridge-building machine can handle varies. It typically ranges from dozens to hundreds of meters, depending on its model and specifications. What is the lifting capacity of the bridge-erecting machine? The lifting capacity of the bridge-erecting machine depends on its type and model. Generally, it can range from several tons to hundreds of tons. How accurate is the positioning when placing bridge segments? When placing bridge segments using a bridge-erecting machine, the positioning accuracy is very high. The accuracy is usually within a few centimetres to ensure correct alignment. What safety measures are in place to prevent accidents during operation? This bridge-erecting machine has multiple safety measures, such as emergency stop buttons, overload protection, and regular safety inspections to prevent accidents.
