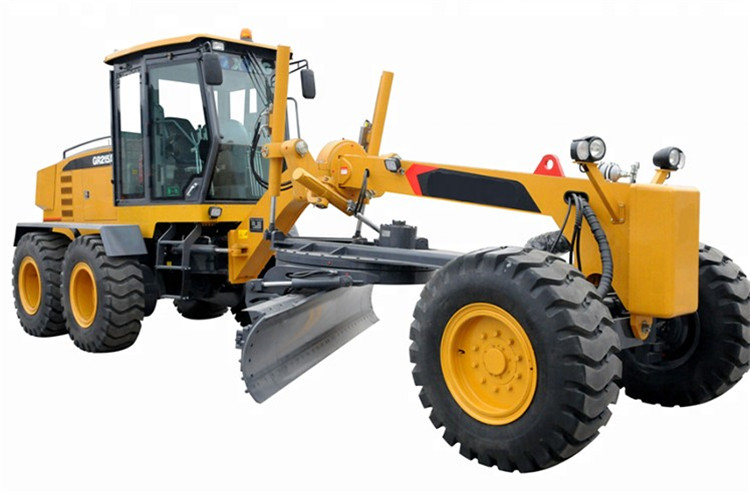

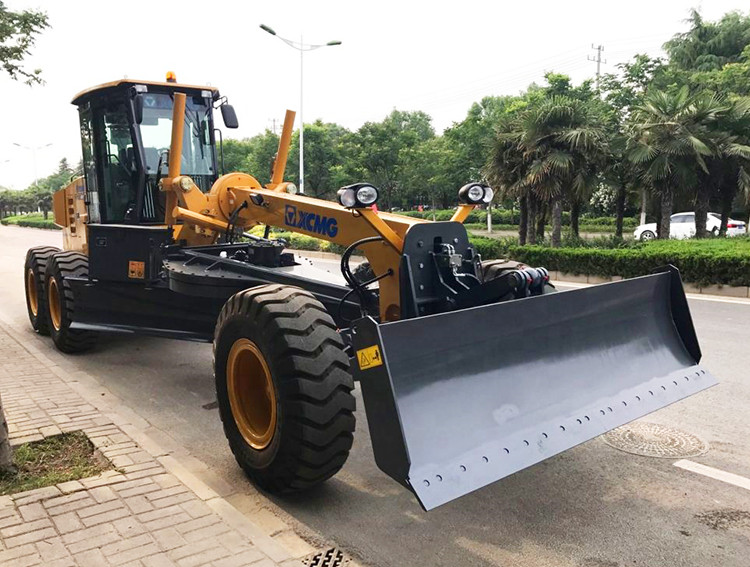

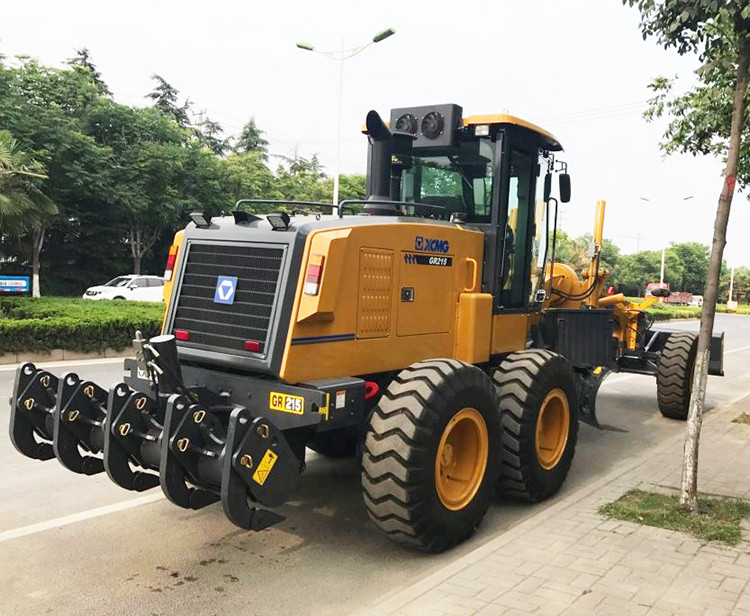

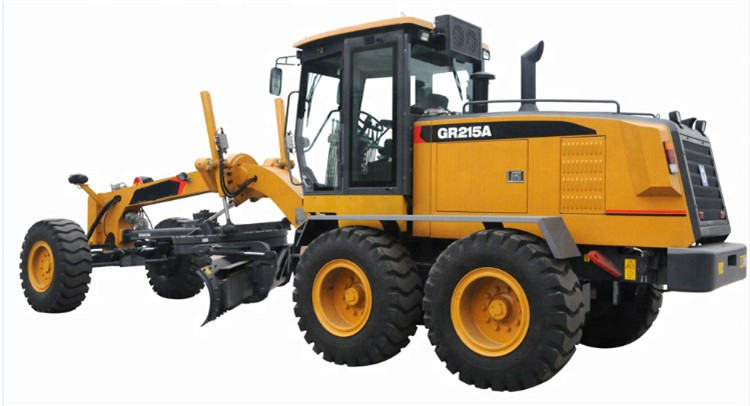

XCMG Road Machines For Construction 215hp China Grader Motor GR215A For Sale
Specifications
- Weight:16100.000kg
- Condition:New
- Moving Type:Other
- Rated power/speed:160/2200kW/rpm
- Traction force (f=0.75):118kN
- Min.turing radius:7.3 m
- Moldboard width×height:4270×610mm
- Brand Name:XCMG
- Place of Origin:China
- Certification:ISO/CE
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Road Machines For Construction 215hp China Grader Motor GR215A For Sale.
Using 6CTA8.3-C215 turbocharged diesel engine, the output torque and power reserve factor is large, and the fuel consumption is low.
Energy-saving and noise-reducing: adopt low-speed engine transmission line, low specific fuel consumption of rated point, energy saving and environmental protection; low-speed ratio configuration of transmission system, average fuel consumption reduced by about 8%
Strong Power: Adopting Sichai High-efficiency State III Variable Power Engine
With load rotation: to improve the hydraulic system pressure, blade rotary force greatly improved, high-frequency quenching gearring, wear resistance and life expectancy, to achieve load rotation.
Efficient operation: The displacement of the hydraulic pump and the hydraulic motor is increased, the speed of the cylinder is increased by 20%, and the operating efficiency leads the industry.
The gearbox and torque converter are electronically controlled power shifting and fixed shaft gearboxes. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
|
Basic specification |
|
|
Engine model |
QSB6.7/6CTA8.3 |
|
Rated power/speed |
164kW/2200rpm 160kW/2200rpm |
|
Dimension(LxWxH) |
9180×2625×3470mm |
|
Operating weight(Standard) |
16100kg |
|
Performance specification |
|
|
Travelling speed ,forward |
5,8,11,19,23,38 km/h |
|
Travelling speed ,reverse |
5,11,23 km/h |
|
Tractive force(f=0.75) |
115.3KN |
|
Max. gradeability |
36% |
|
Tire inflation pressure |
260 kPa |
|
Working hydraulic pressure |
16 MPa |
|
Transmission pressure |
1.3~1.8MPa |
|
Max. steering angle of front wheels |
±50° |
|
Max. lean angle of front wheels |
±17° |
|
Max. oscillation angle of front axle |
±15° |
|
Max. oscillation angle of balance box |
15 |
|
Frame articulation angle |
±27° |
|
Min. turning radius using articulation |
7.3m |
|
Biade |
|
|
Maximum lift above ground |
450mm |
|
Maximum depth of cutting |
500mm |
|
Maximum blade position angle |
90° |
|
Blade cutting angle |
28°-70° |
|
Circle reversing rotation |
360° |
|
Moldboard width ×height |
4270×610mm |
