Summary
- Weight:500kg
- Dimension(L*W*H):2118*831*1291mm
- Power(W):10.5kW
- Model Number:XMR053
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Grade Ability:20%
- Travel Speed:0~3.4km/h
- Type:Vibratory Light Road Roller
- Certification:CE/ISO9001
Specifications
- Weight:500.000kg
- Condition:New
- Moving Type:Wheel
- Clearance to road edge:123/418mm
- Compaction width:720mm
- Vibration frequency:65Hz
- Exciting force:14.8kN
- Nominal amplitude:0.55mm

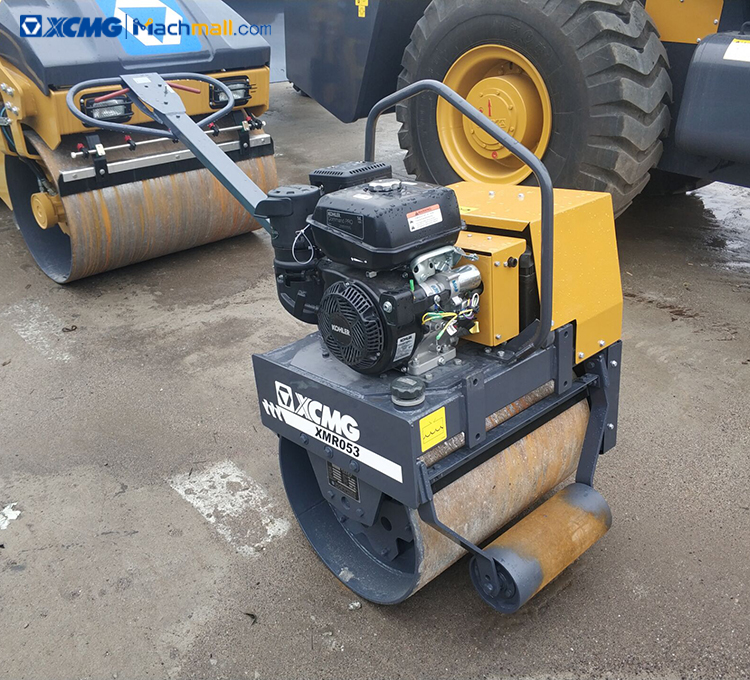

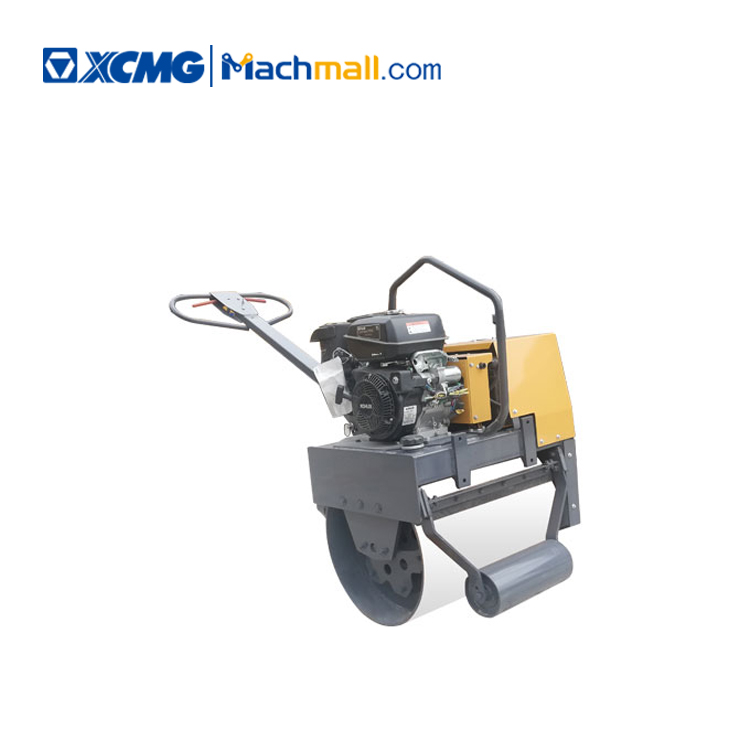

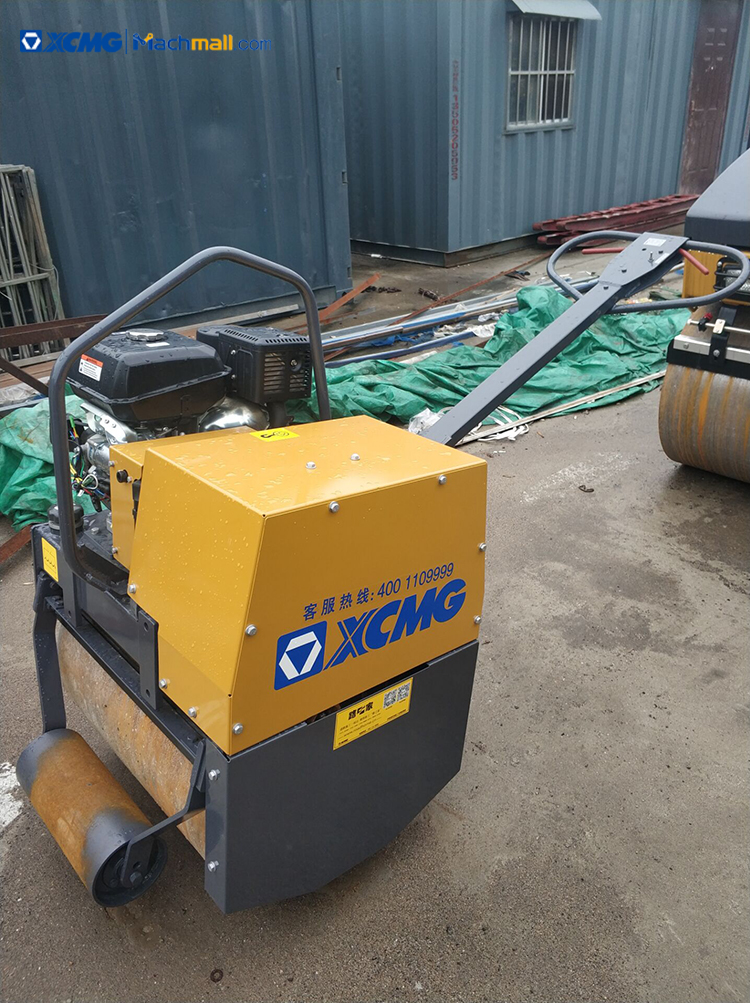

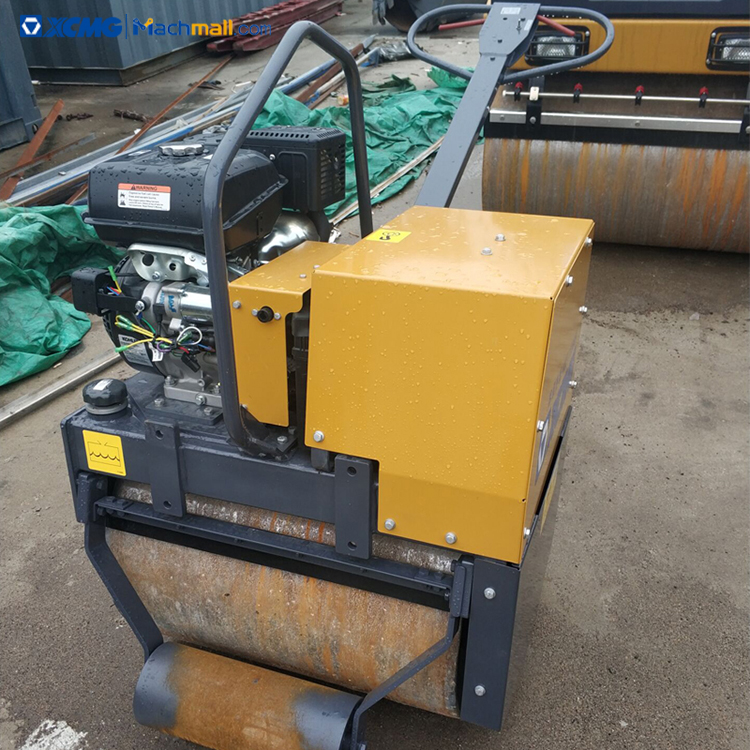

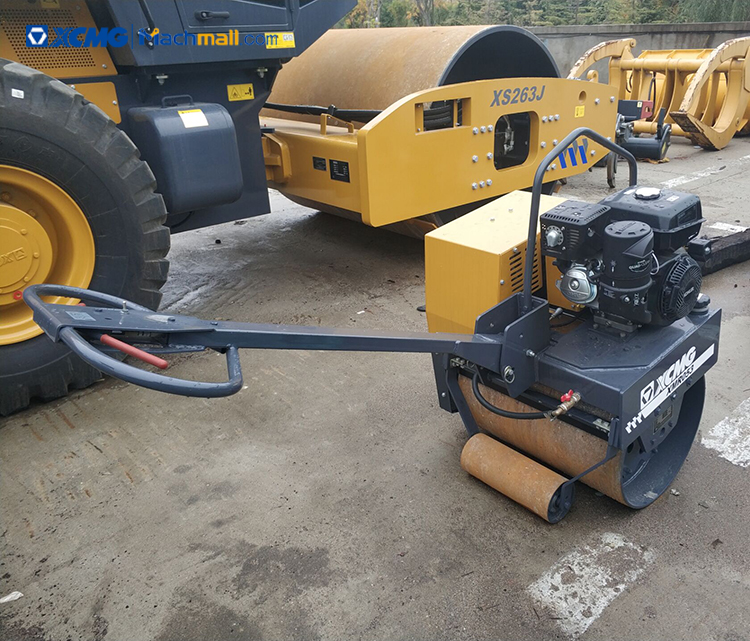

1 ton XCMG small walking hand single drum roll road roller XMR053.
XCMG hand road roller XMR053 is hand-holding single drum vibratory roller with service mass of 0.5t. XCMG hand road roller XMR053 is mainly used for compaction of asphalt concrete pavements and especially suitable for compaction of such small works as roads in cities and towns and stadiums.
XCMG hand road roller XMR053 is applicable also to compaction of small and medium size foundations, secondary foundations, sand and sandstone materials; the machine in integrated frame structure has small width, large ground clearance and superb edge compaction performance. XCMG hand road roller XMR053 's unique superiority highlights especially in compaction of narrow working site and groove foundation.
|

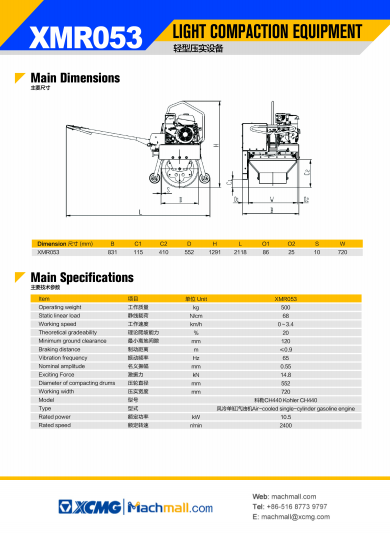

Item |
Unit |
XMR053 |
|
Service mass |
kg |
500 |
|
Running speed |
km/h |
0~3.4 |
|
Theoretical gradeability |
% |
20 |
|
Vibration frequency |
Hz |
65 |
|
Nominal amplitude |
mm |
0.55 |
|
Exiting force |
kN |
14.8 |
|
Compaction width |
mm |
720 |
|
Clearance to road edge (left/right) |
mm |
123/418 |
|
Drive form |
|
Hydrostatic |
|
Service brake |
|
Hydrostatic |
|
Vibration form |
|
Electromagnetic clutch |
|
Engine model |
|
CH440 |
|
Engine rated power |
kW |
10.5 |
|
Outside dimension (length/width/height) |
mm |
2118*831*1291 |
|
Capacity of fuel tank |
L |
6.5 |
|
Capacity of watering tank |
L |
20 |
