55 ton lifting truck crane XCT55 from XCMG

  • 55 ton lifting truck crane XCT55 from XCMG
  • 55 ton lifting truck crane XCT55 from XCMG
  • 55 ton lifting truck crane XCT55 from XCMG
  • 55 ton lifting truck crane XCT55 from XCMG
  • 55 ton lifting truck crane XCT55 from XCMG
  • 55 ton lifting truck crane XCT55 from XCMG

Share:
55 ton lifting truck crane XCT55 from XCMG
FOB for Cranes Reference Price:Get Latest Price
$100000.00-$400000.00 1 / EA (Min. Order)
Model: XCT55
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
55 ton lifting truck crane XCT55 from XCMG
55 ton lifting truck crane XCT55 from XCMG
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
  • 360-Degree VR Videos
Summary
  • Model Number:XCT55
  • Brand Name:XCMG
  • Place of Origin:Xuzhou,Jiangsu,China
  • Span:7.6m
  • Max. Lifting Height:55.6m
  • Max. Lifting Load:55 Ton
  • Rated Lifting Moment:900Kn.m
  • Rated Loading Capacity:55 ton
  • Application:Construction
  • Certification:CE/ISO9001
Specifications
  • weight:44000.000kg
  • Condition:New
  • Moving Type:Wheel
  • Overall dimension:13980*2550*3610mm
  • Power:268/1900 251/1900 kW/(r/min)
  • Max. output torque:1800/(1000~1400) 1550/1300 N.m/(r/min)
  • Driving speed:2.5~90km/h

55 ton lifting truck crane XCT55 from XCMG

55 ton lifting truck crane XCT55 from XCMG.

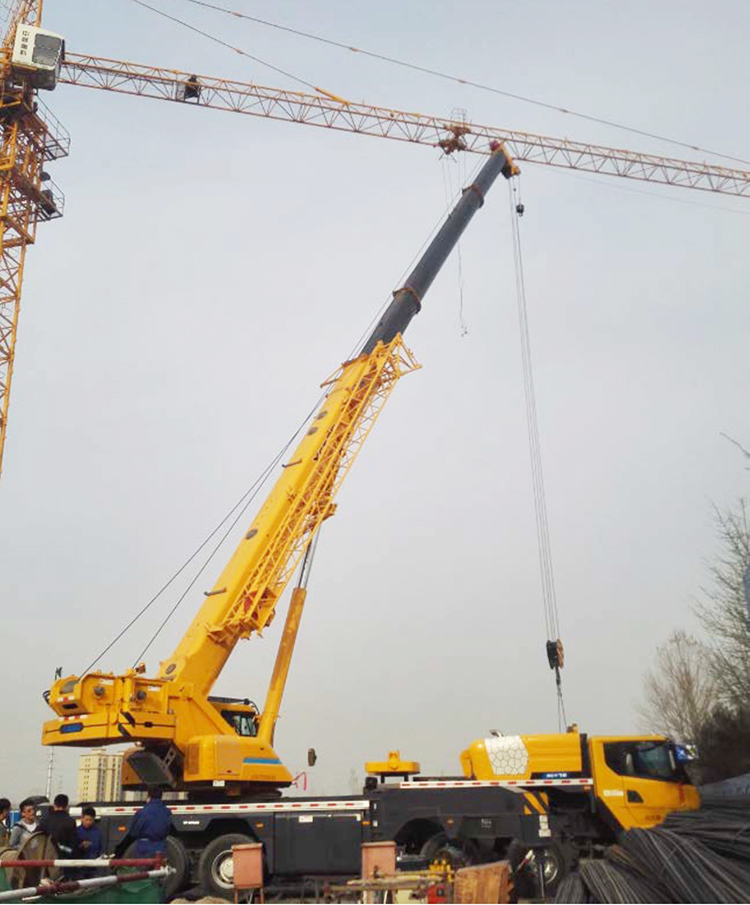

XCMG lifting crane XCT55 is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.



Performance Characteristics:



1. Super lifting performance



* 5-section boom of 44.5 m with U-type profile is the longest of the same class in the industry; the max. parts of line is 12 for the main hook block.

* The change of boom length is more efficient, and the performance of medium- long boom is higher;.



2. New energy-saving hydraulic system

* The min. stable slewing speed is 0.1°/s. The min. stable lifting speed (drum) is 2.5m/min. Precise and safe lifting movements can be realized.

* XCMG lifting crane XCT55  can work normally in the high temperature environment and thus the hoisting operation is safe and reliable.



3. Drive train

Heavy truck group MAN engine, rated power 268kw, max torque 1800N.m Shangchai diesel engine, rated power 251kw, max torque 1600N.m



4. Low-speed large-torque power drive system

Resulting in perfect combination of high power performance and low fuel consumption, i.e.12% reduction in fuel consumption for driving, 15% for operation, and 15% improvement in power performance.

55 ton lifting truck crane XCT55 from XCMG

Dimension
Unit
XCT55
Overall length
mm
13980
Overall width
mm
2550
Overall height
mm
3610
Total weight in travel
kg
44000
Engine model

MC11.36-40/SC10E340Q4
Engine rated power
kW/(r/min)
268/1900 251/1900
Engine rated torque
N.m/(r/min)
1800/(1000~1400) 1550/1300
Max. travel speed
km/h
90
Min. turning diameter
m
24
Min. ground clearance
mm
303.5
Departure angle
°
13
Max. grade ability
%
45
Fuel consumption for 100km
L
35
Max. rated total lifting capacity
t
55
Min. rated working radius
m
3
Turning radius at turntable tail
m
3.845
Max. lifting torque
kN.m
2033
Base boom
m
11.9
Max.main boom
m
44.5
Max.main boom+jib
m
60.3

55 ton lifting truck crane XCT55 from XCMG55 ton lifting truck crane XCT55 from XCMG55 ton lifting truck crane XCT55 from XCMG55 ton lifting truck crane XCT55 from XCMG55 ton lifting truck crane XCT55 from XCMG55 ton lifting truck crane XCT55 from XCMG55 ton lifting truck crane XCT55 from XCMG
