XCMG official 35 ton lifting crane XCT35 price

  • XCMG official 35 ton lifting crane XCT35 price
  • XCMG official 35 ton lifting crane XCT35 price
  • XCMG official 35 ton lifting crane XCT35 price
  • XCMG official 35 ton lifting crane XCT35 price
  • XCMG official 35 ton lifting crane XCT35 price
  • XCMG official 35 ton lifting crane XCT35 price

Share:
XCMG official 35 ton lifting crane XCT35 price
FOB for Cranes Reference Price:Get Latest Price
$148000.00-$168000.00 1 / EA (Min. Order)
Model: XCT35
Engine: SHANGCHAI
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG official 35 ton lifting crane XCT35 price
XCMG official 35 ton lifting crane XCT35 price
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
  • 360-Degree VR Videos
  • Product PDF
Summary
  • Model Number:XCT35
  • Brand Name:XCMG
  • Place of Origin:Xuzhou,Jiangsu,China
  • Span:7.6m
  • Max. Lifting Height:40.6m
  • Max. Lifting Load:35 ton
  • Rated Lifting Moment:1458kN.m
  • Rated Loading Capacity:35 ton
  • Application:Construction
  • Certification:CE/ISO9001
Specifications
  • weight:35000.000kg
  • Condition:New
  • Moving Type:Wheel
  • Overall dimension:13065*2750*3540mm
  • Power:221kW/1900rpm
  • Max. output torque:1400Nm/1400rpm
  • Driving speed:3~90km/h
  • Gradability:42%
  • Min. ground clearance::260mm

XCMG official 35 ton lifting crane XCT35 price

XCMG official 35 ton lifting crane XCT35.

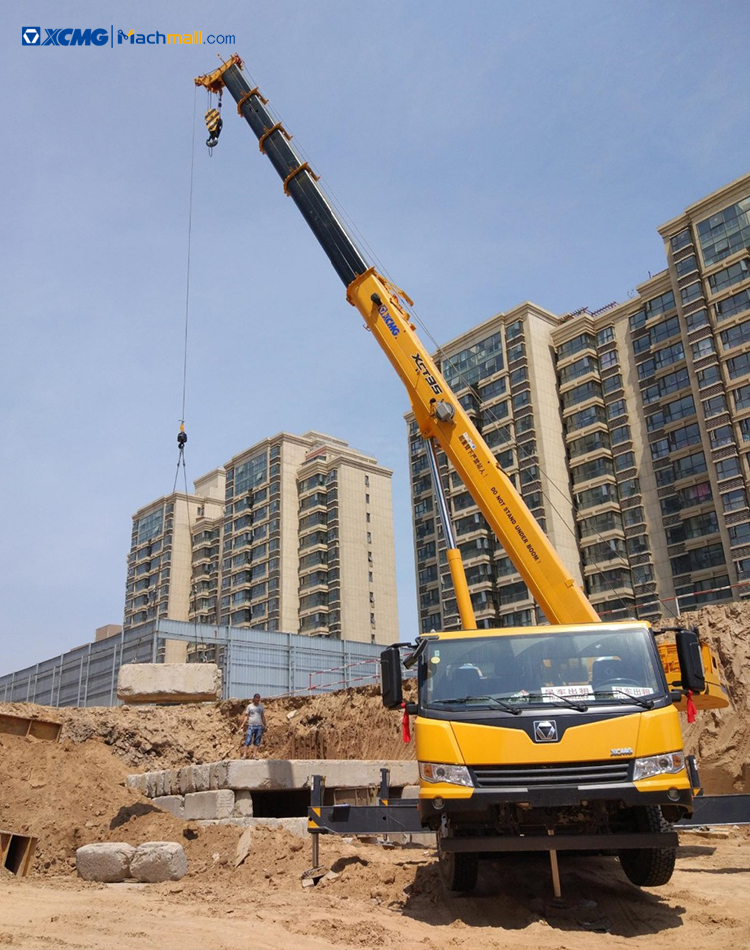

XCMG lifting crane XCT35 is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.



Performance Characteristics:



1. XCMG lifting crane XCT35 adoptes 5-section boom of 42 m with U-type profile; the max. lifting load is 35 t; the max. lifting height is 56.8 m; the max. working radius is 38.5 m; The performance takes the lead comprehensively.



2. New energy-saving hydraulic system with high efficiency, durability and fine control (lifting: 2.5m/min, slewing: 0.1°/s)



3. Optimal transmission system first created in the industry contributes to strong off-road performance and low oil consumption; the gradeability is 42%.



4. Resulting in perfect combination of high power performance and low fuel consumption.



5. Ergonomics analysis and humanized details make inherent quality of easy driving comfortable operation and convenient maintenance.

XCMG official 35 ton lifting crane XCT35 price

Specification
Unit
XCT35
Span
m
7.6
Max.Lifting Height
m
40.6
Max.Lifting Load
t
35
Overall length
mm
13065
Overall width
mm
2750
Overall height
mm
3540
Total weight in travel
kg
35000
Engine Model

SC9DF300.2Q5
Engine rated power
rpm
221kW/1900
Engine rated torque
rpm
1400Nm/1400
Driving speed
km/h
3~90
Gradability

0.42
Min. turning diameter
m
22
Min. ground clearance
mm
260
Base boom
m
10.9
Max. main boom
m
42

XCMG official 35 ton lifting crane XCT35 priceXCMG official 35 ton lifting crane XCT35 priceXCMG official 35 ton lifting crane XCT35 priceXCMG official 35 ton lifting crane XCT35 priceXCMG official 35 ton lifting crane XCT35 priceXCMG official 35 ton lifting crane XCT35 priceXCMG official 35 ton lifting crane XCT35 price
