XCMG Official Solid Roller Road Machine Xh365 Landfill Compactor with Diesel Engine Price
XH365
Specs & Compare
Details
Select 3 models for comparison
Weight
Dimension(L*W*H)
Power(W)
Model Number
Brand Name
Place of Origin
Grade Ability
Travel Speed
Static Linear Pressure
Type
Certification
Engineering & Construction Machinery
XH365
36500kg
9281×4000×4096mm
277/2100kW/rpm
XH365
XCMG
Xuzhou, Jiangsu, China
--
0-12km/H
--
Vibratory Sungle Drum Roller
CE/ISO9001
+ Add a Product
+ Add a Product
Summary
- Weight:36500kg
- Dimension(L*W*H):9281×4000×4096mm
- Power(W):277/2100kW/rpm
- Model Number:XH365
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Travel Speed:0-12km/H
- Type:Vibratory Sungle Drum Roller
- Certification:CE/ISO9001
Specifications
- Weight:36500.000kg
- Condition:Used
- Moving Type:Other
- Model:XH365
- Centrifugal Force:40KN
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

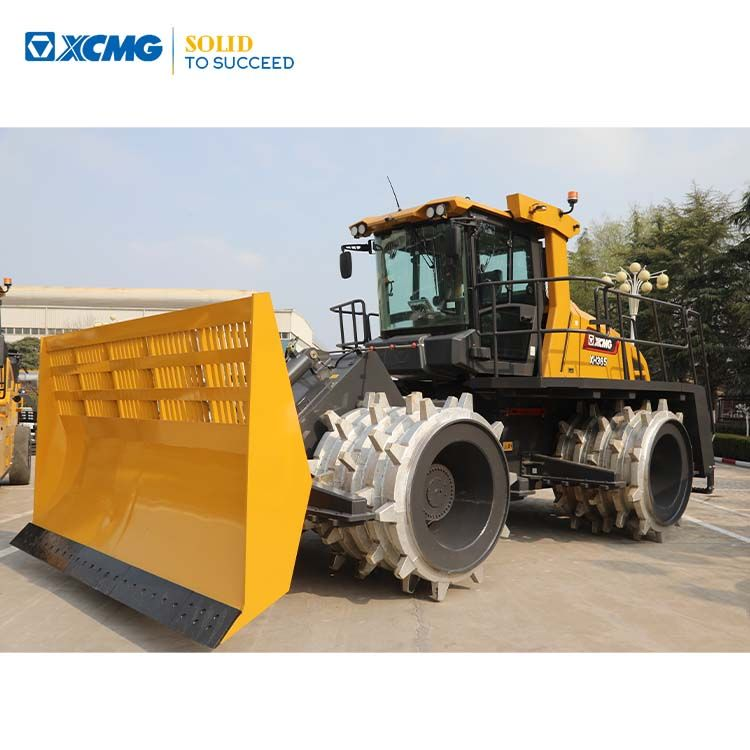

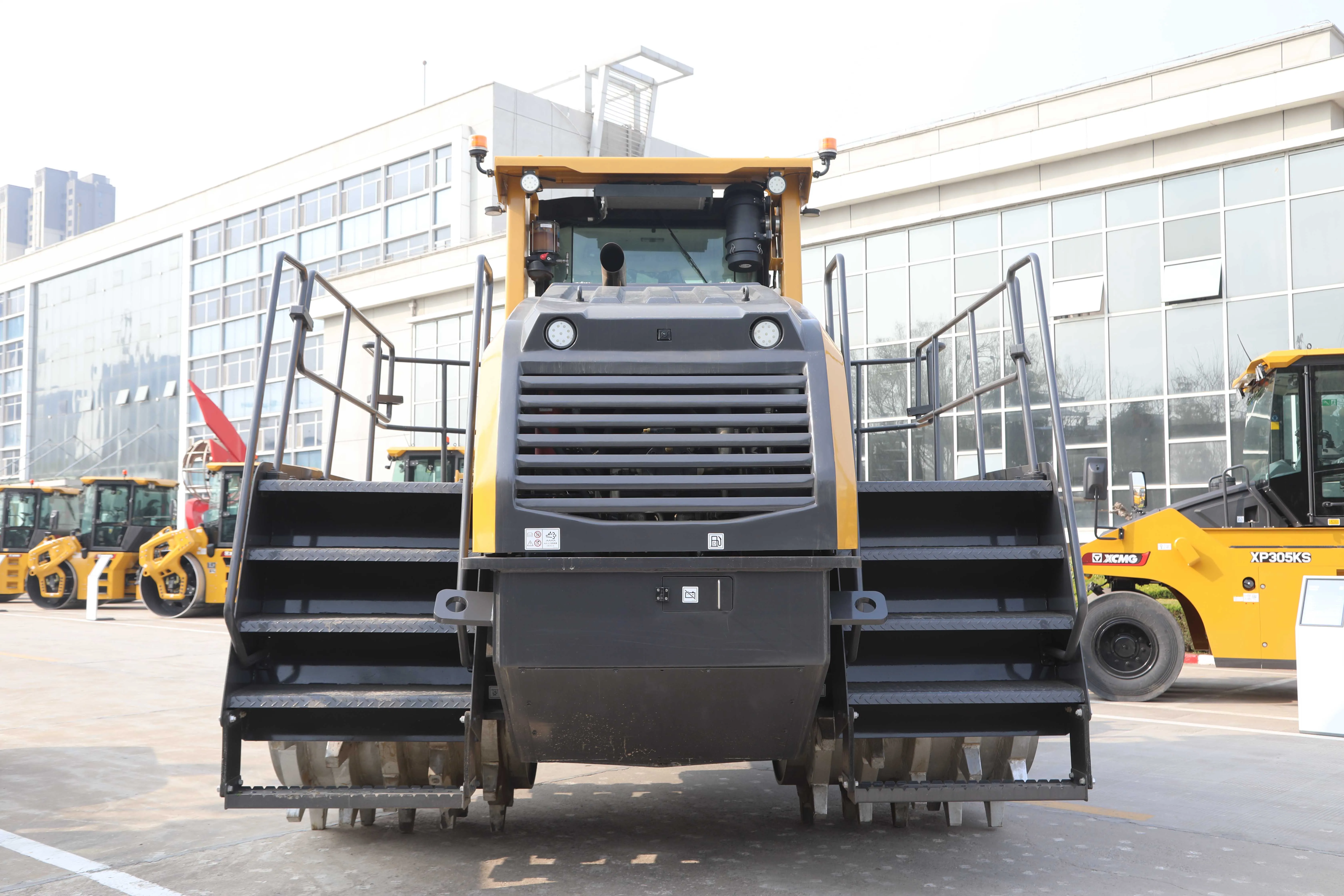

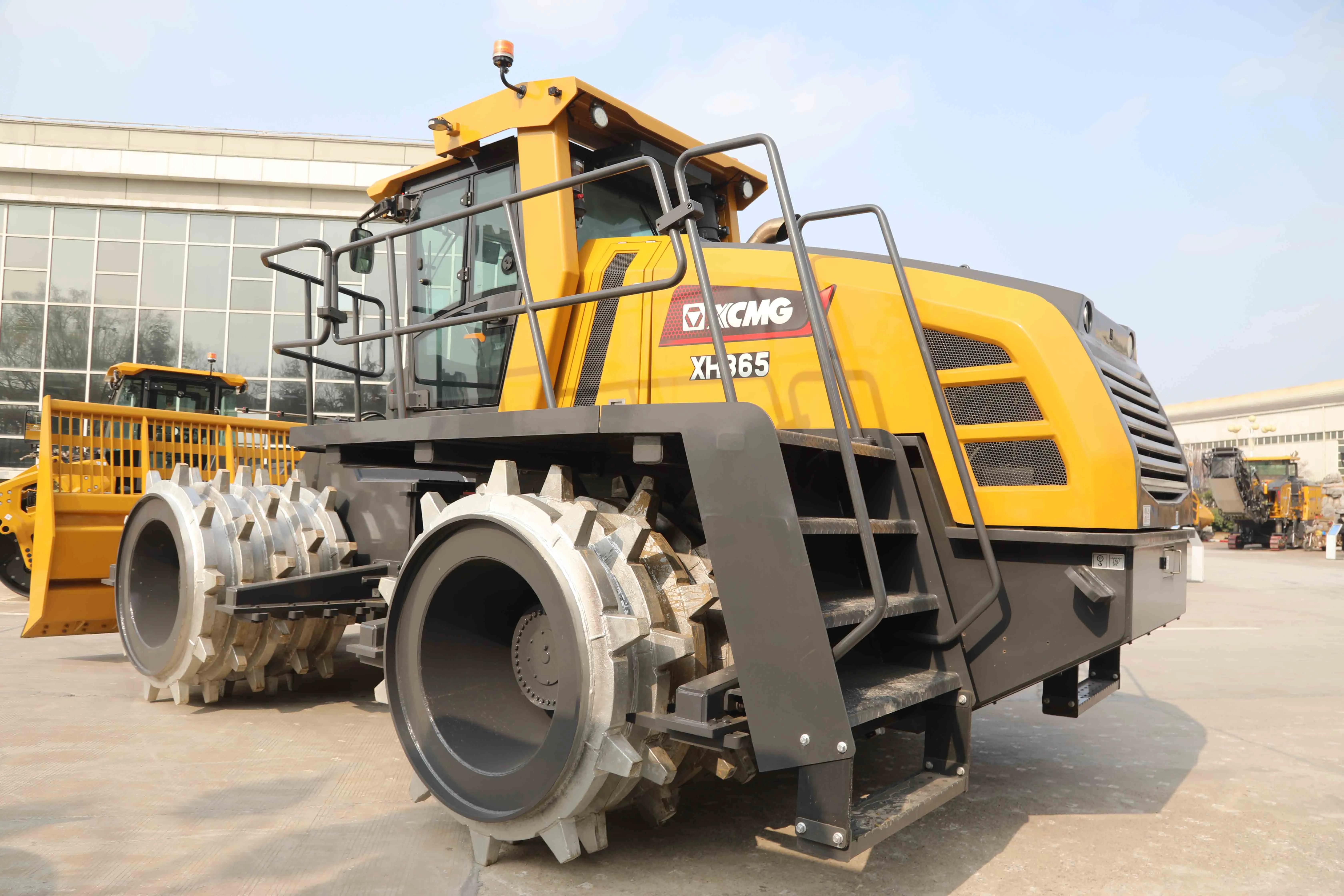

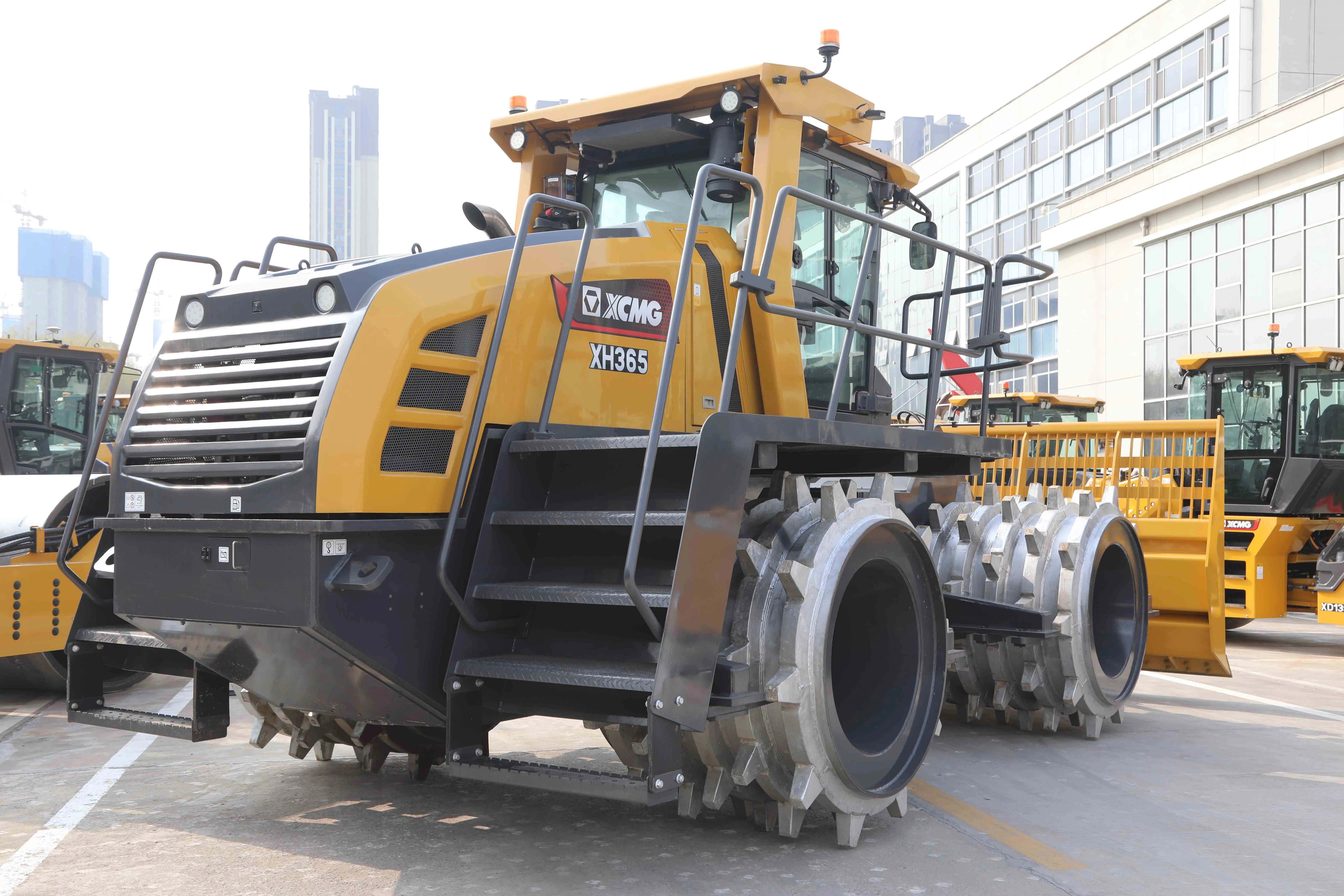

XCMG Official New Solid Roller Road Machine Xh365 Landfill Compactor with Diesel Engine Price
XH365 landfill compactor is a kind of heavy-duty compactor with large unit linear load. It is mainly used for bulldozing and compaction of solid fill in landfill to reduce the land occupation of landfill and prolong the service life of landfill. In addition, it can also be used for the shoveling and compaction of large foundation filling projects, including road foundations, hydraulic engineering dams, and airports.
| Item | Content | Unit | Value |
| Weights | Operating weight | kg | 36500 |
| Front axle weight | kg | 17600 | |
| Rear axle weight | kg | 18900 | |
| Compaction wheel parameters |
Front wheel(diameter x width) | mm | 1860×1200 |
| Rear wheel(diameter x width) | mm | 1860×1245 | |
| Blade parameters | Width | mm | 4000 |
| Height | mm | 2025 | |
| Maximum lift above ground | mm | 1200 | |
| Maximum digging depth | mm | 250 | |
| Mobility Parameters | Gear I speed | km/h | 0-5 |
| Gear II speed | km/h | 0-12 | |
| Theoretical gradeability | % | 100 | |
| Minimum turning radius | mm | 7257 | |
| Engine | Machine model | / | X12 |
| Type | / | In-line 6-cylinder water-cooling Turbocharger High pressure common rail |
|
| Rated power | kW/rpm | 277/2100 | |
| Maximum Power | kW/rpm | 340/1800 | |
| Capacity | Diesel tank | L | 780 |
| Hydraulic oil tank | L | 330 | |
| Coolant | L | 45 | |
| Overall dimensions | (LxWxH) | mm×mm×mm | 9281×4000×4096 |
