XCF706K
Specs & Compare
Details
Select 3 models for comparison
Fork Width
Fork Length
Min Lifting Height
Max Lifting Height
Rated Loading Capacity
Power Source
Type
Model Number
Brand Name
Place of Origin
Storage & Logistics Equipment
XCF706K
--
--
--
3000mm
7 T
Diesel
--
XCF706K
XCMG
Jiangsu,China
+ Add a Product
+ Add a Product
Summary
- Max Lifting Height:3000mm
- Rated Loading Capacity:7 T
- Power Source:Diesel
- Model Number:XCF706K
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Specifications
- Weight:9600.000kg
- Condition:New
- Moving Type:Wheel
- Specification:4770*1995*2480mm
- Condition:New
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

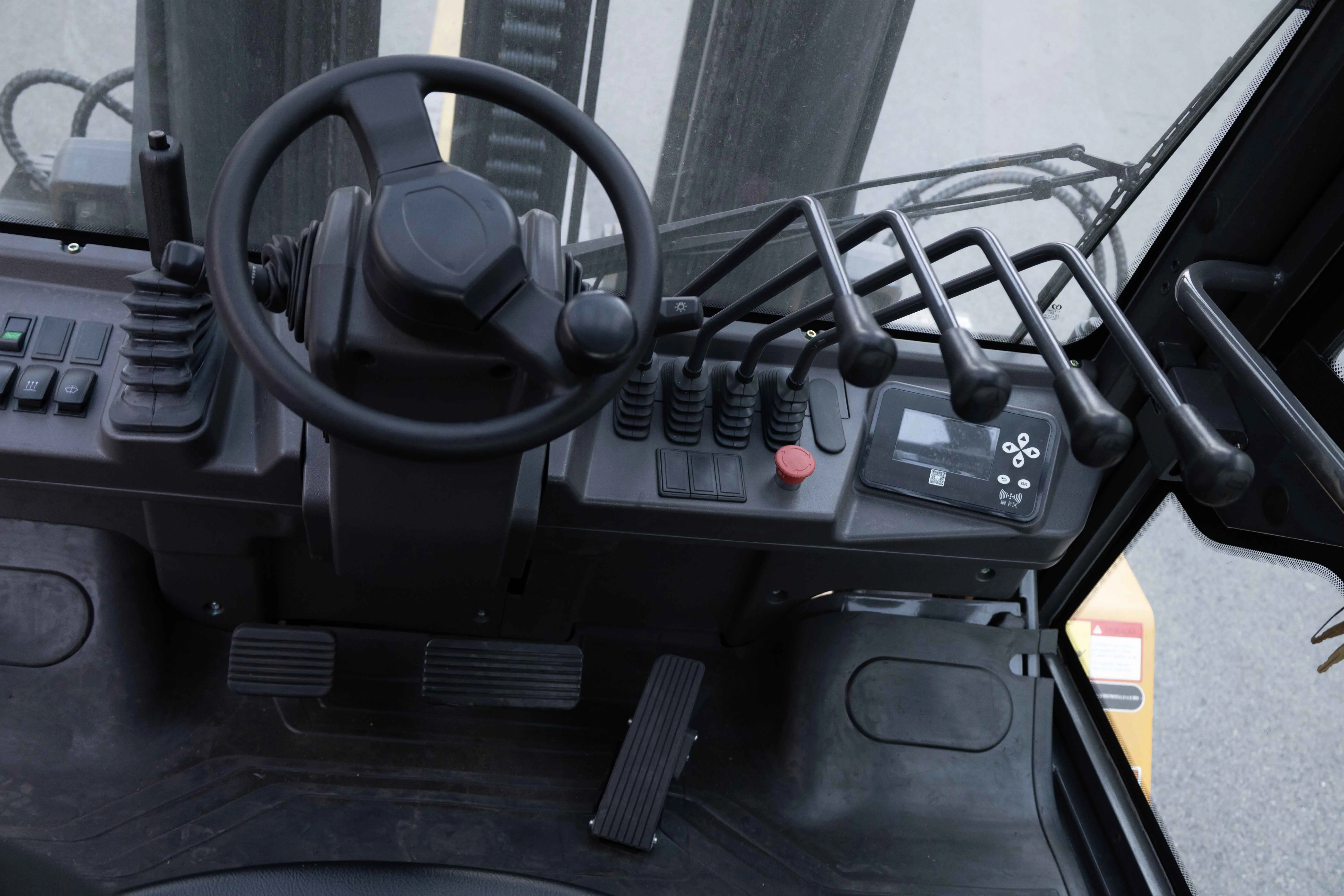

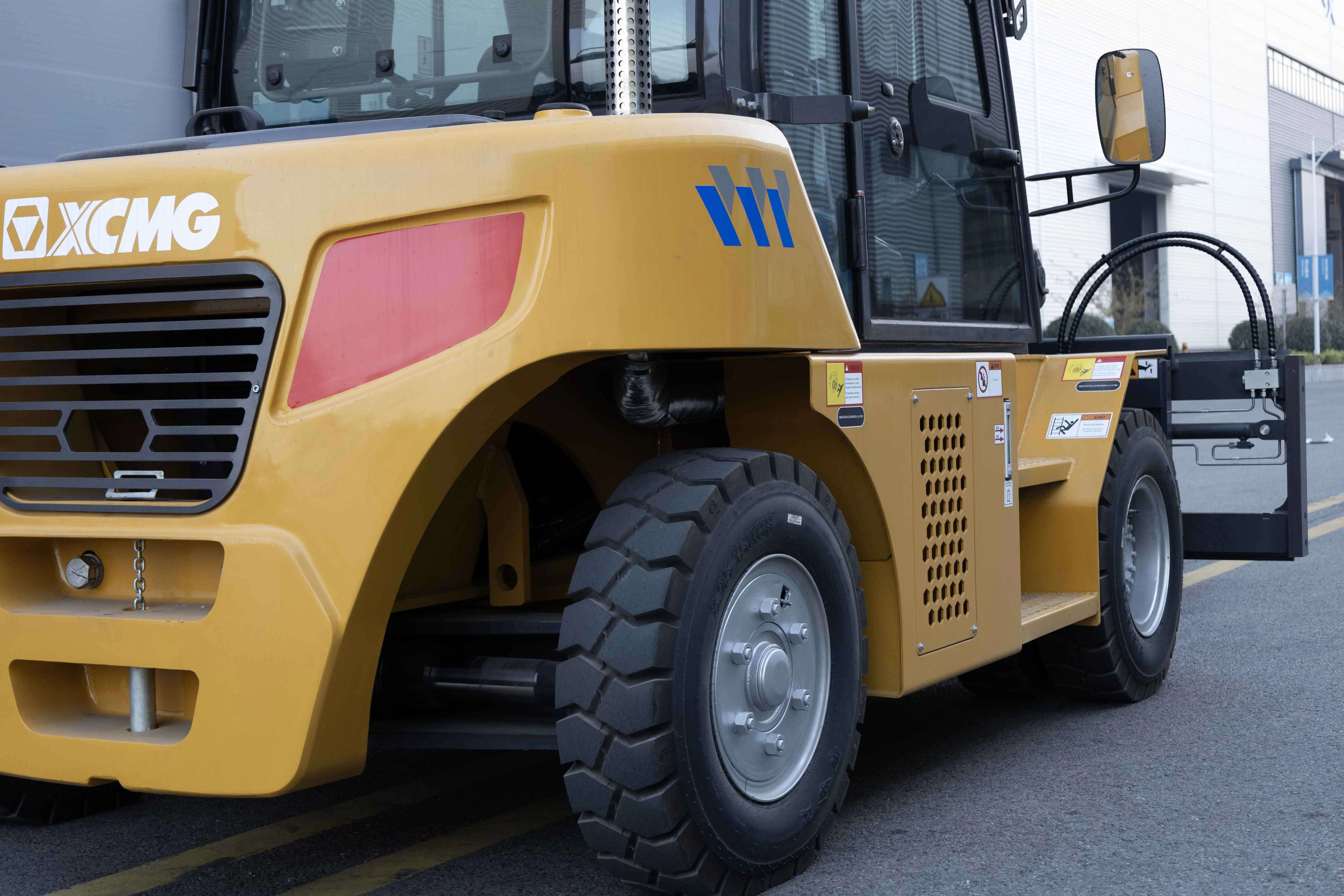

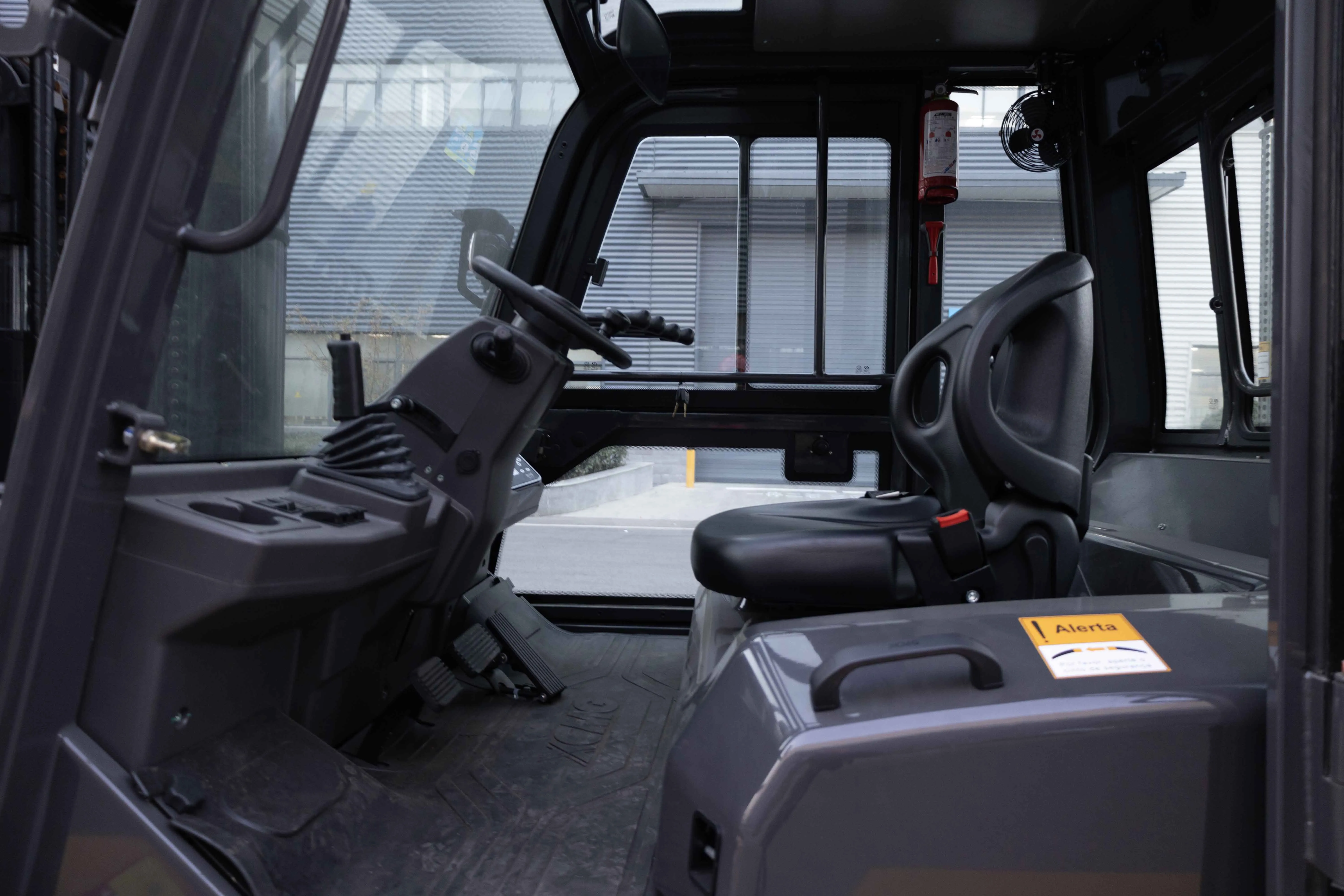

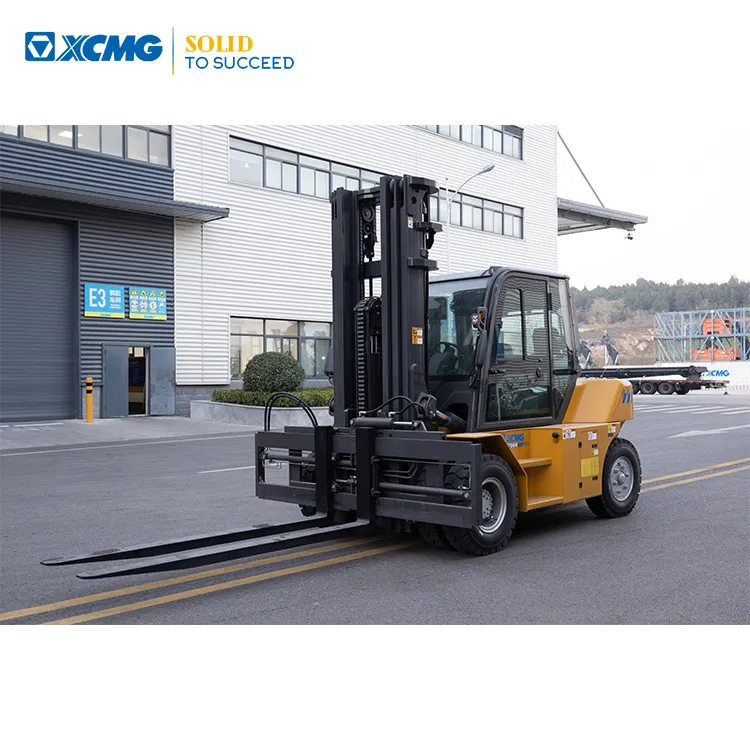

XCMG Official XCF706K Inter Combustion Forklifts 7 Ton Diesel Fuel Forklift Truck
XCMG's K series internal combustion counterbalanced forklifts are developed using XCMG's proprietary core technologies and components. Adopting a customer-centric research and development approach, we have created a series of high performance forklifts that are suitable for all regions, weather conditions, and working environments. These forklifts are widely used in logistics areas such as ports, docks, freight yards, steel mills, and warehouses.
The whole machine has good stability. With the same lifting weight, it has a greater lift compared to a
shorter wheelbase, while reducing the load on the steering axle and extending the service life of the steering tires. The integral hood is adopted, and the internal frame rib plate structure has high strength and reliable quality. A more reliable frame structure increases rigidity. The frame is made of manganese steel, making the frame structure more reliable.
Specification
|
Item
|
Unit
|
Parameter
|
|
|
Specification
|
Drive
|
-
|
Diesel
|
|
Rated load
|
kg
|
7000
|
|
|
Load center distance
|
mm
|
600
|
|
|
Wheelbase
|
mm
|
2250
|
|
|
Weight
|
Service weight
|
kg
|
9600
|
|
Axle load, loaded front/rear
|
kg
|
14710/1890
|
|
|
Axle load, unloaded front/rear
|
kg
|
4122/5478
|
|
|
Wheels
|
Tyres type
|
-
|
Pneumatic
|
|
Tread, front
|
mm
|
1470
|
|
|
Tread, rear
|
mm
|
1700
|
|
|
Dimension
|
Free lifting height
|
mm
|
140
|
|
Height, mast lowered
|
mm
|
2480
|
|
|
Max lift height (standard)
|
mm
|
3000
|
|
|
Overall length
|
mm
|
4770
|
|
|
Overall width
|
mm
|
1995
|
|
|
Fork size (Length/Width/Thickness)
|
mm
|
1220/150/65
|
|
|
Ground clearance
|
mm
|
175
|
|
|
Min turning radius
|
mm
|
3460
|
|
|
Perfomance
|
Travel speed, loaded/unloaded
|
km/h
|
27/30
|
|
Lift speed, loaded/unloaded
|
mm/s
|
430/510
|
|
|
Gradeability
|
%
|
25
|
|
|
Engine
|
Rating/RPM
|
kW/rpm
|
85/2200
|
|
Torque/RPM
|
N.m/rpm
|
500/1320-1650
|
|
