XCMG Official XE335C Crawler Excavator for sale
Summary
- Dimension(L*W*H):11388×3190×3515mm
- Weight:33800kg
- Model Number:XE335C
- Brand Name:XCMG
- Place of Origin:China
- Power Type:Diesel
- Type:Crawler Excavator
- Certification:CE/ISO9001
Specifications
- Weight:33800.000kg
- Condition:New
- Moving Type:Crawler
- Operating weight:33800Kg
- Bucket capacity:1.4m³
- Rotating speed:9.7r/min
- Ground pressure:66kPa
- Bucket digging force:263kN
- Max. digging height:10074mm
- Max. dumping height:6898mm
- Max. digging depth:6972mm
- Max. digging reach:10650mm
- Min. swing radius:4424mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

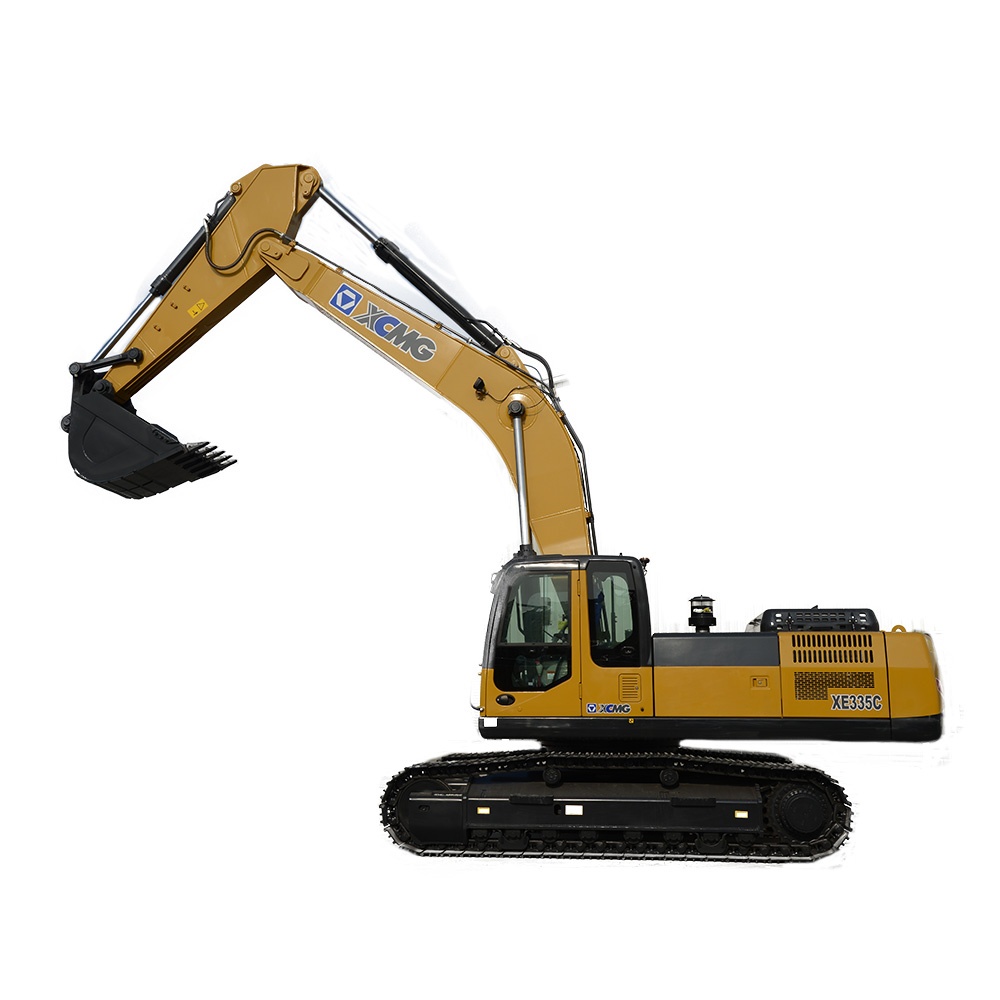

XE335C Crawler Excavator
1、The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2、The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3、The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4、The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.
|
Description |
Unit |
Parameter value |
|||
|
Operating weight |
kg |
33800 |
|||
|
Bucket capacity |
m³ |
1.4 |
|||
|
Engine |
Model |
Engine |
ISUZU AA-6HK1XQP |
||
|
Style |
Direct injection |
--- |
√ |
||
|
Four strokes |
--- |
√ |
|||
|
Water cooling |
--- |
√ |
|||
|
Turbo-charging |
--- |
√ |
|||
|
Air to air intercooler |
--- |
√ |
|||
|
No. of cylinders |
--- |
6 |
|||
|
Output power |
kW/ r/min |
190.5/2000 |
|||
|
torque/speed |
N.m |
872.8/1700 |
|||
|
Displacement |
L |
7.79 |
|||
|
|
Travel speed（H/L) |
km/h |
5.5/3.3 |
||
|
Rotating speed |
r/min |
9.7 |
|||
|
Gradeability |
° |
≤35 |
|||
|
Ground pressure |
kPa |
66 |
|||
|
Bucket digging force |
kN |
263 |
|||
|
Arm digging force |
kN |
225 |
|||
|
Maximum traction |
kN |
261 |
|||
|
Hydraulic system |
Main pump |
-- |
2 |
||
|
Rated flow of main pump |
L/min |
2×280 |
|||
|
Pressure of prime valve |
MPa |
34.3/37 |
|||
|
Pressure of travel system |
MPa |
34.3 |
|||
|
Pressure of swing system |
MPa |
26.5 |
|||
|
Pressure of pilot system |
MPa |
3.9 |
|||
|
Oil Capacity |
Fuel tank capacity |
L |
630 |
||
|
Hydraulic tank capacity |
L |
350 |
|||
|
Engine oil capacity |
L |
28 |
|||
|
|
Overall length |
mm |
11388 |
||
|
Overall width |
mm |
3190 |
|||
|
Overall height |
mm |
3515 |
|||
|
Width of platform |
mm |
2950 |
|||
|
Length of crawler |
mm |
4725 |
|||
|
Overall width of chassis |
mm |
3190 |
|||
|
Width of crawler |
mm |
600 |
|||
|
Wheel base of crawler |
mm |
3183 |
|||
|
Crawler gauge |
mm |
2590 |
|||
|
Clearance under counterweight |
mm |
1700 |
|||
|
Min. ground clearance |
mm |
495 |
|||
|
Min. tail swing radius |
mm |
3570 |
|||
|
|
Max. digging height |
mm |
10074 |
||
|
Max. dumping height |
mm |
6898 |
|||
|
Max. digging depth |
mm |
6972 |
|||
|
Max. digging depth at the range of level 8 feet |
mm |
6728 |
|||
|
Max. vertical wall digging depth |
mm |
5366 |
|||
|
Max. digging reach |
mm |
10650 |
|||
|
Min. swing radius |
mm |
4424 |
|||
|
|
Standard |
Length of boom |
mm |
6400 |
|
|
Length of arm |
mm |
2670 |
|||
|
Bucket capacity |
m³ |
1.4 |
|||
|
Length of arm |
m³ |
2900 |
|||
|
Bucket capacity |
m³ |
1.6 /1.4 |
|||
