180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale

  • 180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale
  • 180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale
  • 180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale
  • 180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale
  • 180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale
  • 180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale

Share:

180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale

$10000.00-$1000000.00 1 / EA (Min. Order)
Model: XR180D
Engine: Cummins
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

  • Certification:CE/ISO9001
  • Dimension(L*W*H):14255*3000*3455mm
  • Weight:58000kg
  • Power(W):133KW
  • Model Number:XR180D
  • Brand Name:XCMG
  • Place of Origin:Xuzhou, Jiangsu,China
  • Power Type:Diesel

Specifications

  • Weight:58000.000kg
  • Condition:New
  • Moving Type:Crawler
  • Max. output torque:180kN.m
  • Max. Pulling force:180kN
  • Max. traveling speed:1.5km/h
  • Max gradeability:35%
  • Rotational speed:7-27r/min

180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale

180kN XCMG crawler hydraulic rotary drilling rig XR150DIII.

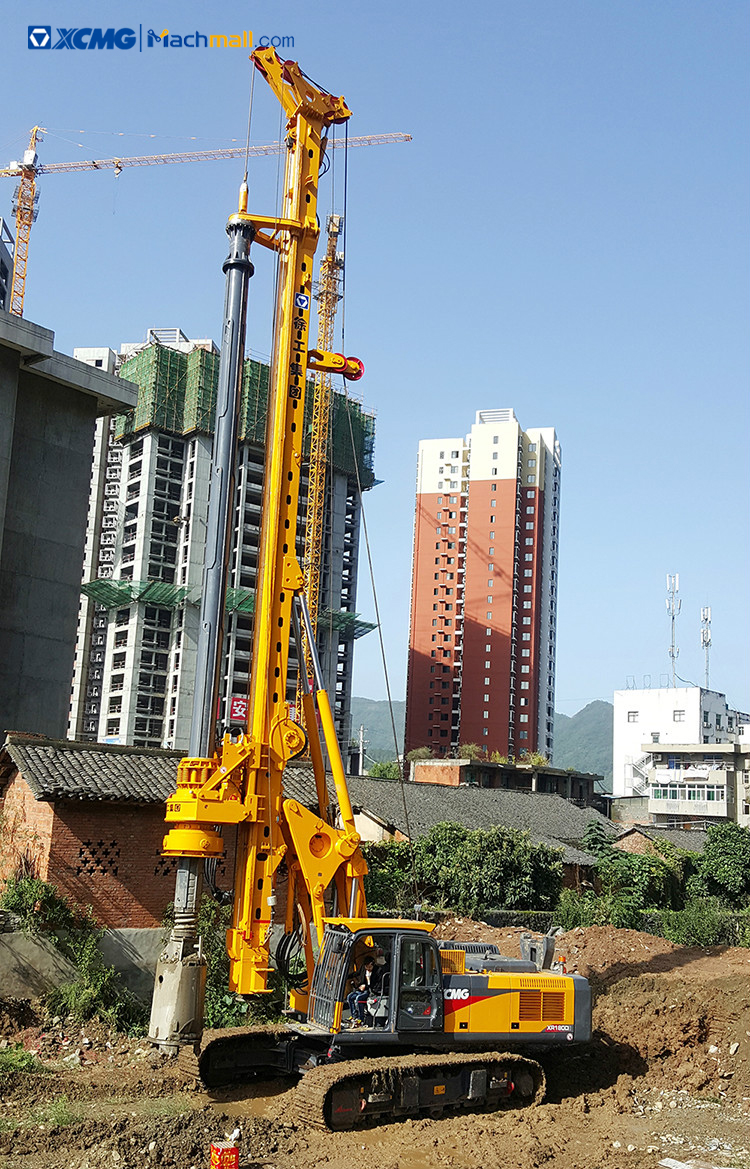

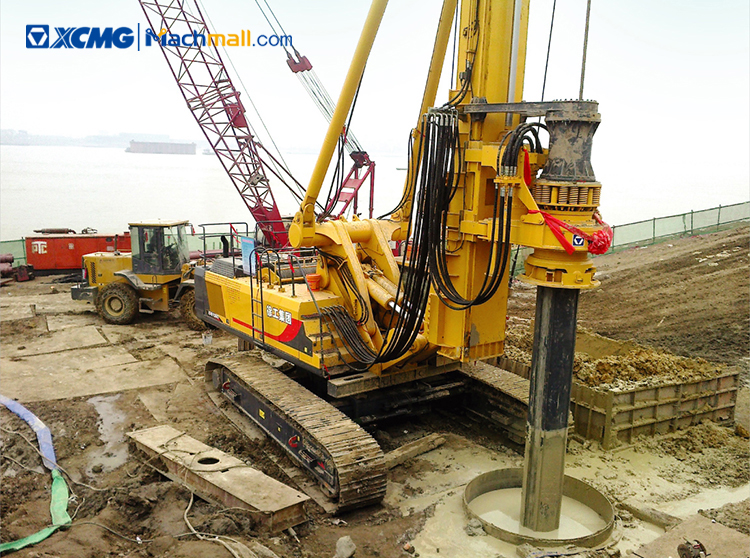

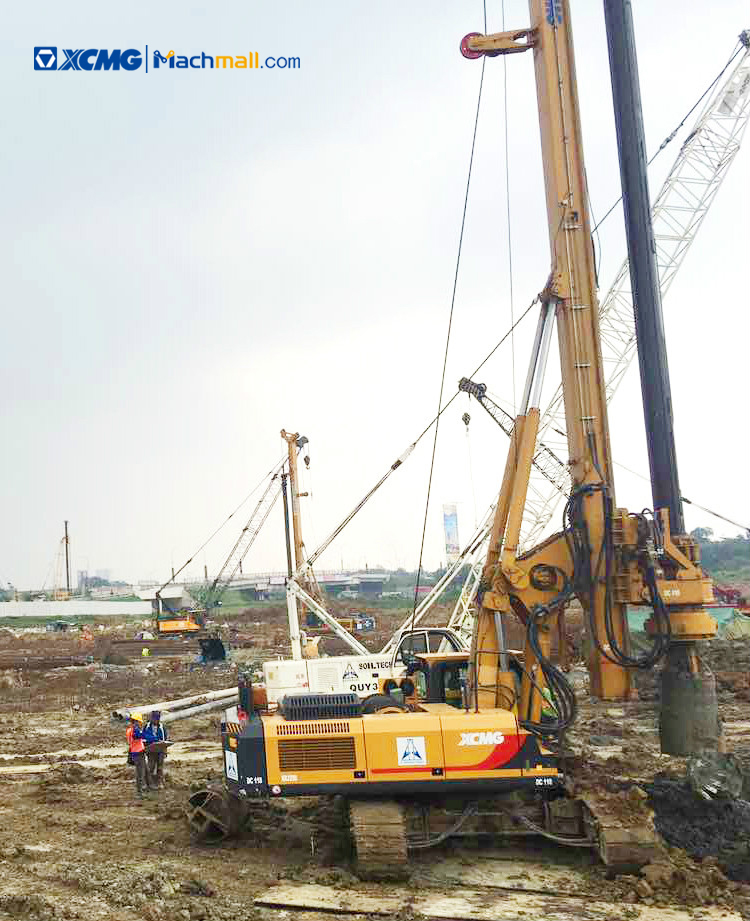

XCMG Rotary Drilling Rig XR180D widely used in boring operation of bored concrete pile in foundation engineering of highway, railways, bridges, ports, docks and high-rise buildings.



Performance Characteristics:



1. XCMG Rotary Drilling Rig XR180D hydraulic telescopic (TDP series) track chassis and large diameter of slewing bearing which is special for rotary drilling rig is used, and meets super strong stability and convenience of transportation.



2. The original imported electronic-controlled turbocharged engine is used with strong power, and the emission meets North America Tier 4 Final, Europe stageⅣ emission standard.



3. German hydraulic system is used, and for which the positive flow control, load sensing control and power limit control is used to make the hydraulic system more energy efficient.



4. XCMG Rotary Drilling Rig XR180D windshield wiper with water spray function and color LCD with powerful function.

180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale

Description
Unit
Parameter value
Max. drilling diameter
mm
1800
Max. drilling depth
m
standard configuration
(5-section friction Kelly bar)46
optional configuration
(4-section-locking Kelly bar)
Allowable luffing scope (from center of drill rod to slewing center)
mm
3560~3900
Drilling rig dimension in working condition (L*W*H)
mm
8350*4200*20480
Drilling rig dimension in transport condition (L*W*H)
mm
14255*3000*3455
Weight of overall unit (standard configuration, excluding drilling tool)
t
58
Engine
Model

QSB6.7
Rated power/speed
kW
194/(2200r/min)
Max. working pressure of hydraulic system
MPa
35
Rotary drive
Max. torque
kN.m
180
Rotational speed
r/min
7~27
Crowd cylinder
Max. Pushing force
kN
160
Max. Pulling force
kN
180
Max. stroke
mm
5000
Main winch
Max. pulling force
kN
180
Max. single-rope speed
m/min
65
Diameter of the steel wire rope
mm
180
Auxiliary winch
Max. pulling force
kN
50
Max. single-rope speed
m/min
70
Diameter of the steel wire rope
mm
16
Rotary table slewing angle
°
360
Traveling
Max. traveling speed of the overall unit
km/h
1.5
Max. climbable gradient of the overall unit
%
35
Crawler
Width of crawler plate
mm
700
External width of crawler (min.-max.)
mm
2960~4200
Center distance between two longitudinal wheels of crawler
mm
4270
Average ground pressure
kPa
94

180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale



uMore xcmg rotary drilling rig



180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale180kN XCMG crawler hydraulic rotary drilling rig XR150DIII for sale
