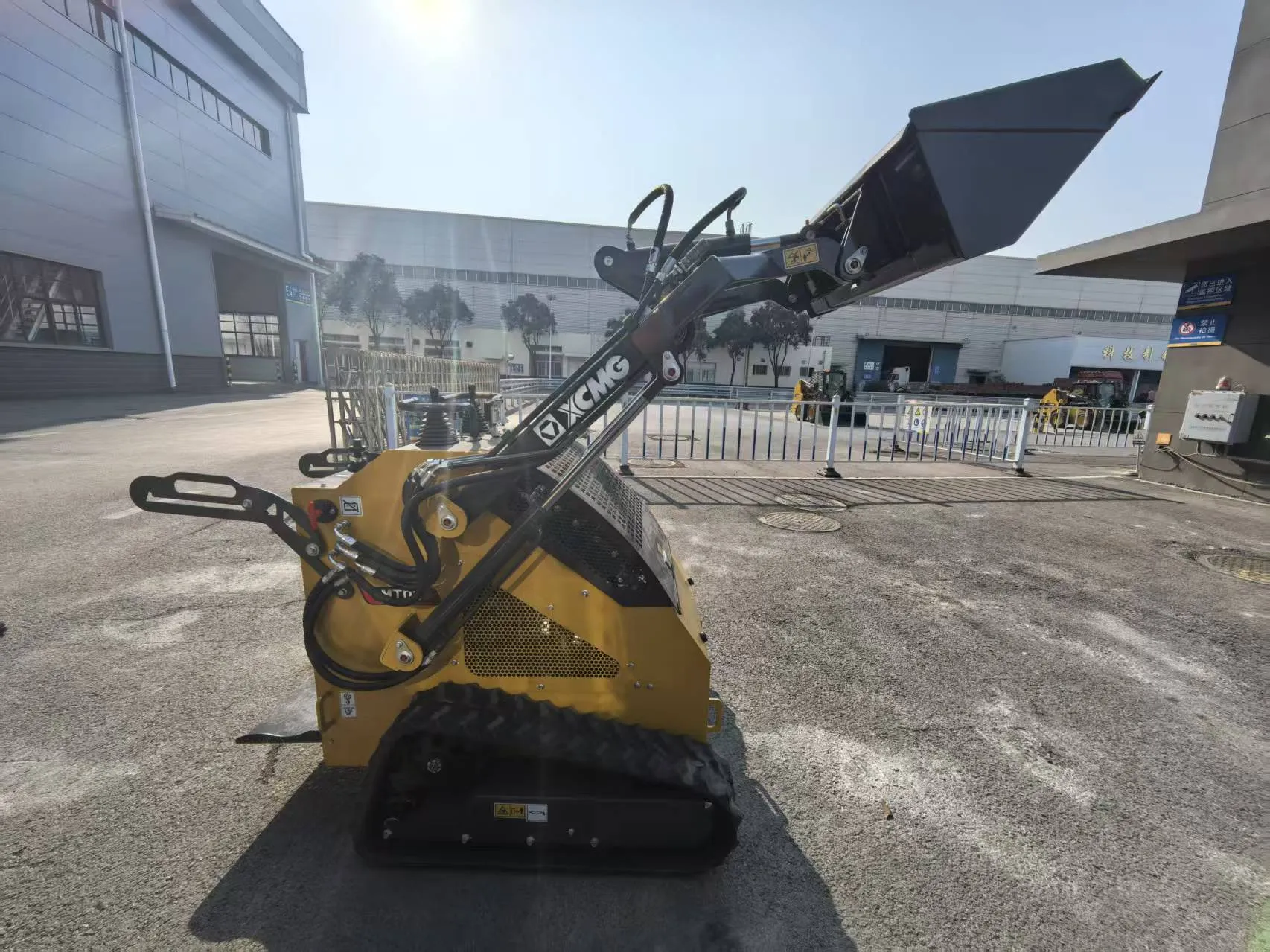

XCMG skid steer loader MT03 mini loader skid steer Price For Sale
MT03
Specs & Compare
Details
Select 3 models for comparison
Rated Load
Dimension(Long*Breadth*High)
Type
Place of Origin
Model Number
Brand Name
Certification
Engineering & Construction Machinery
MT03
300kg
2180*1050*1200mm
Skid Loaders
Jiangsu, China
MT03
XCMG
--
+ Add a Product
+ Add a Product
Summary
- Rated Load:300kg
- Dimension(Long*Breadth*High):2180*1050*1200mm
- Type: Skid Loaders
- Place of Origin:Jiangsu, China
- Model Number:MT03
- Brand Name:XCMG
Specifications
- Weight:815.000kg
- Condition:New
- Moving Type:Other
- Bucket capacity:0.1m³
- Core Components:Engine
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG skid steer loader MT03 mini loader skid steer Price For Sale
Adopting internationally renowned brand engines, the power is strong, the noise is low, the reliability is high, and the whole machine meets stricter green environmental protection requirements. It is a high-quality product specially designed, manufactured, and verified for the working conditions of construction machinery, with safe and reliable performance.
The core components of the hydraulic system, the walking hydraulic pump and the walking motor, are all well-known brands. The hydraulic hoses are made of high-strength rubber hoses, which are safe and reliable. The control mode of the working hydraulic system adopts mechanical operation, and the overall operation of the machine is sensitive and accurate.

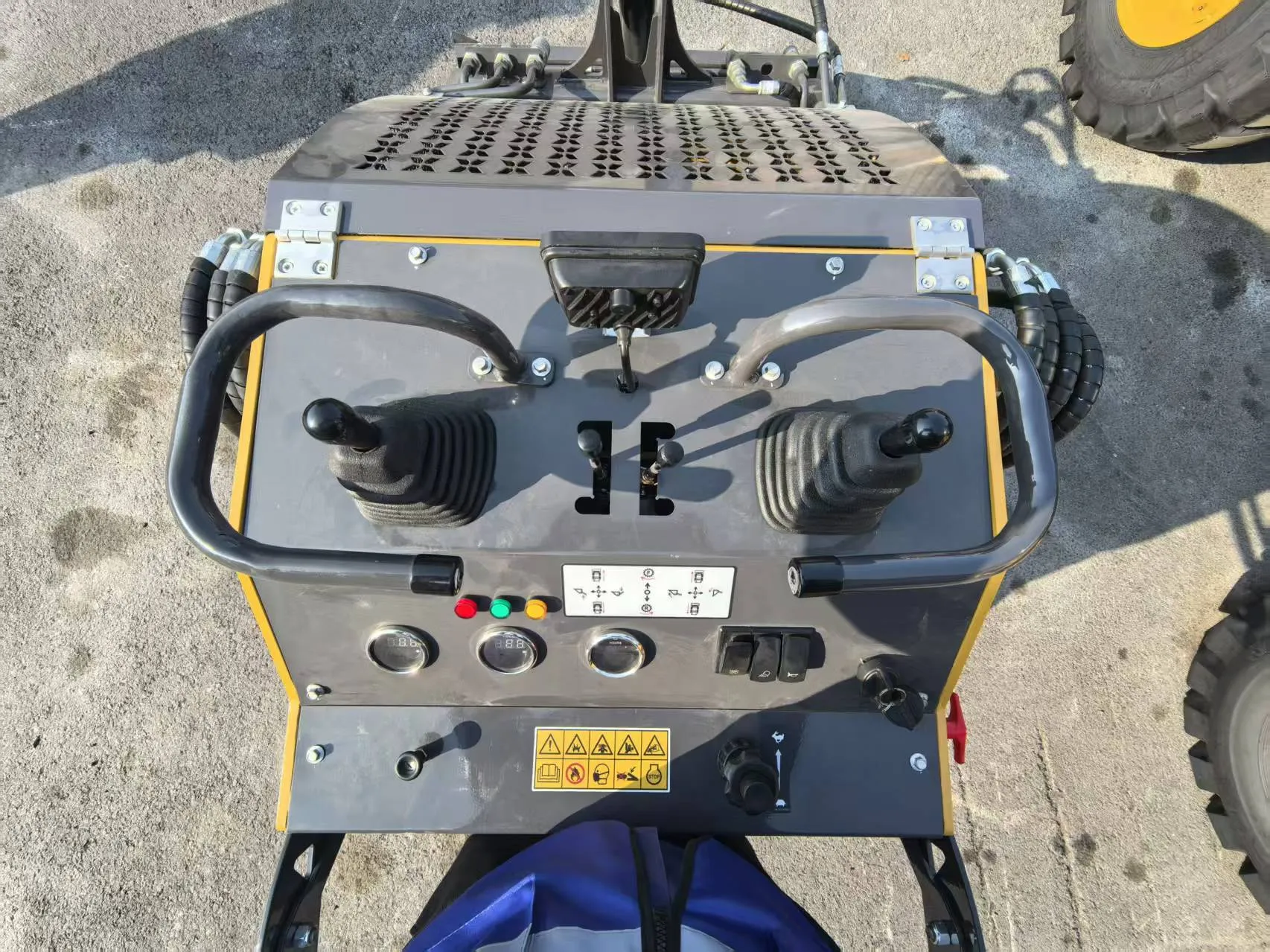

Adopting a standing operation, equipped with foot pedals, shock-absorbing cushions, guardrails, and control handrails to achieve very intuitive operation, it can also be easily controlled by inexperienced equipment operators.
The MT03 skid steer loader can be equipped with various types of work tools such as forks, rotary drills, crushers, trenchers, sweepers, and rakers to meet the needs of different working conditions.
|
Item
|
Unit
|
Parameter
|
|
Rated load
|
kg
|
300
|
|
Operating weight
|
kg
|
815
|
|
Max. breakout force
|
kN
|
4.5
|
|
Max. traction force
|
kN
|
5.44
|
|
Maximum gradeability
|
°
|
25
|
|
Dimension
|
mm
|
2180*1050*1200
|
|
Engine model
|
-
|
R740D
|
|
Rated power
|
kW
|
16.8
|
|
Rated speed
|
rpm
|
3600
|
|
Cylinder amount
|
-
|
1
|
|
Bore
|
mm
|
82
|
|
Stroke
|
mm
|
70
|
|
Displacement
|
mL
|
739.3
|
|
Max. torque
|
Nm/rpm
|
47/2500
|
|
Track
|
mm
|
180*72*35
|
|
Speed
|
km/h
|
5
|
|
Hydraulic flow
|
bar
|
160
|
|
Hydraulic pressure
|
mm
|
2230
|
|
Height to the hinge pin
|
mm
|
1684
|
|
Height to top of cab
|
mm
|
1200
|
|
Clearance: level bucket
|
mm
|
1474
|
|
Overall length (without bucket)
|
mm
|
1800
|
|
Overall length (without bucket)
|
mm
|
2180
|
|
Dumping angle
|
°
|
38
|
|
Max.dumping height
|
mm
|
1200
|
|
Rollback angle: on the ground
|
°
|
24.5
|
|
Rack angle at full lift
|
°
|
140
|
|
Dumping reach
|
mm
|
490
|
|
Wheelbase
|
mm
|
678
|
|
Departure angle
|
°
|
25
|
|
Ground clearance
|
mm
|
175
|
|
Front turning radius (without bucket)
|
mm
|
789
|
|
Front turning radius (with bucket)
|
mm
|
1274
|
|
Rear turning radius
|
mm
|
1078
|
|
Length: rear
|
mm
|
554
|
|
Wheel track
|
mm
|
862.5
|
|
Width over track
|
mm
|
1042.5
|
|
Width over bucket
|
mm
|
1050
|
