- Summary
- Specifications
- Overall Dimensions:6890*2500*2815mm
- Max Lifting Height:16.7m
- Rated Loading Capacity:4500kg
- Power Source:Diesel
- Type:Telehandler
- Model Number:XT680
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
- weight:13600.000kg
- Condition:New
- Moving Type:Wheel
- Maximum travel speed:37.17km/h
- Maximum horsepower:100HP
- Wheelbase:2060mm
- Engine power:82kW

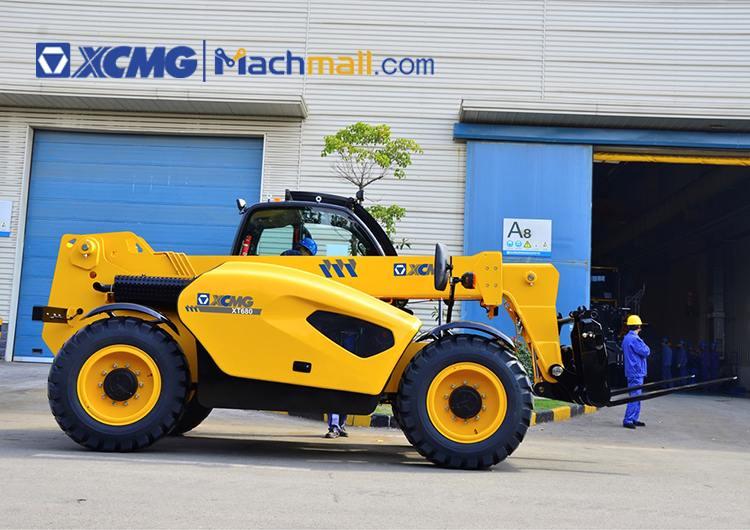

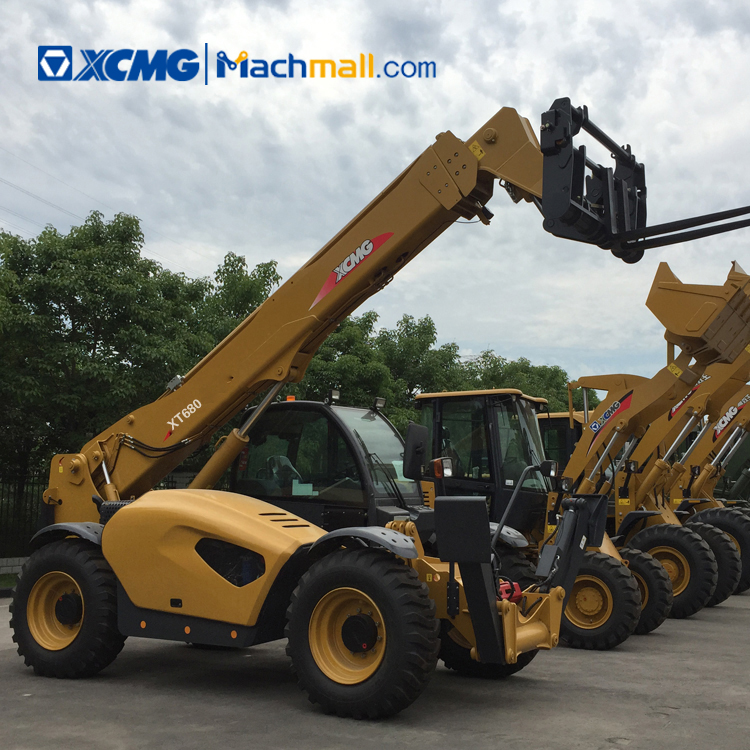

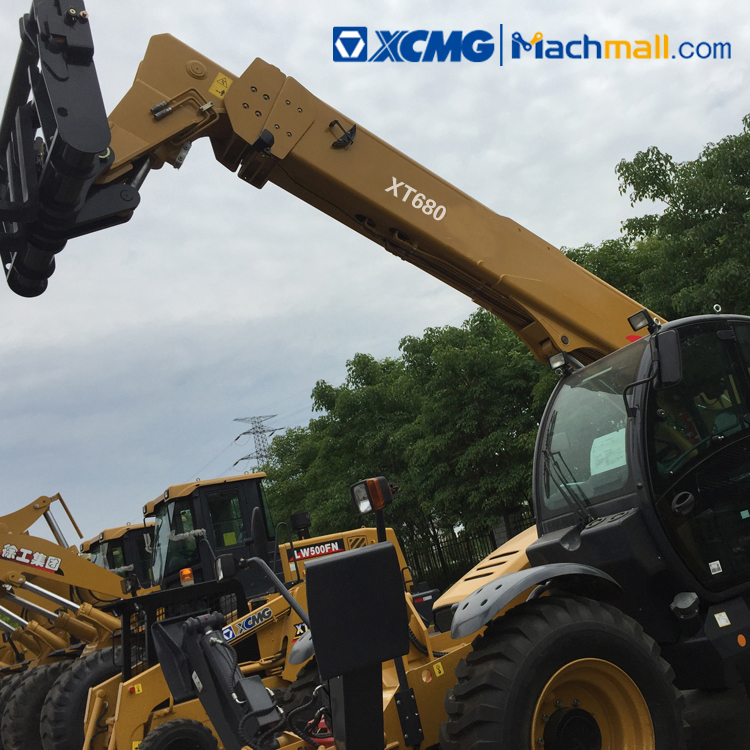

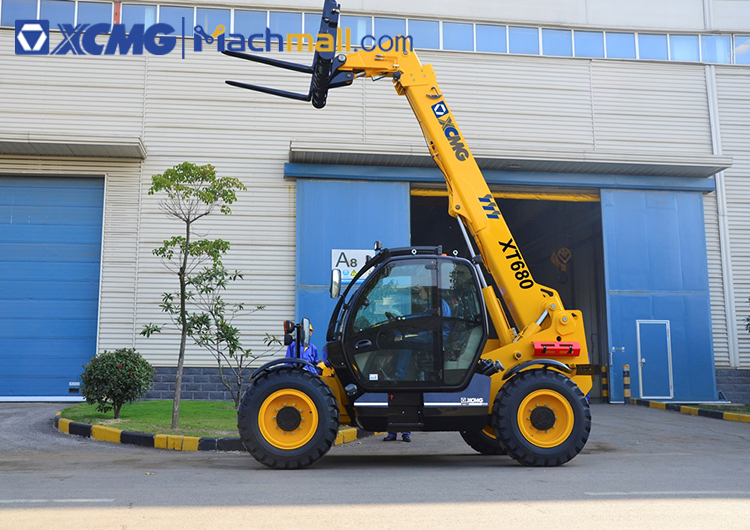

XCMG 4.5 ton telescopic forklift XT680.
XCMG telescopic forklift XT680 is equipped with imported Cummins engine of strong and reliable power and imported axles and transmission of stable drive. XCMG telescopic forklift XT680's a multifunctional high-efficiency small-sized construction machinery product.
The full-hydraulic wet brake is applied to ensure driving safety. The four-section telescopic boom structure features flexible operations, accurate forklifting, and automatic leveling, with the maximum lifting height up to 16.7m.
Advantages and Characteristics:
1. The panoramic cab and the XCMG’s visual identity appearance design feature good fashion and elegance.
2. Powerful international brand engines; Special CARRARO transmissions and axles for smooth drive.
3. The international top-level full-hydraulic wet brake system features stable and reliable braking and guarantees driving safety.
4. The four-wheel drive and multiple steering modes realize super-strong off-road capability and adapt to diversified working conditions.
5. XCMG telescopic forklift XT680 realizes powerful site adaptability and meets the needs of diversified working conditions.
6. The special overload control system guarantees operation safety and reliability.
7. Optional aerial working platform, bucket and various tools to meet customer needs.
|
Item |
Unit |
XT680 |
|
Basic performance |
||
|
Engine power |
kW |
82 |
|
Operating weight |
kg |
13600 |
|
Rated load |
kg |
4500 |
|
Max.horsepower |
HP |
100 |
|
Max.load |
kg |
4500 |
|
Job parameters |
||
|
Max.lifting capacity |
kg |
4500 |
|
Lifting angle range Min/Max |
。 |
-0.054794521 |
|
Max.lifting height |
m |
16.7 |
|
Max.external elongation |
m |
12.6 |
|
Max.lifting height tipping load |
kg |
2269 |
|
Max.external extension and tipping load |
kg |
453 |
|
Transmission system |
||
|
Gear |
|
Front 4 After 4 |
|
Maximum travel speed |
km/h |
37.17 |
|
Gradeability |
% |
33.2 |
|
Dimensions |
||
|
Overall Dimension |
mm |
6890*2500*2815 |
|
Wheelbase |
mm |
3900 |
|
Ground clearance |
mm |
400 |
|
Departure angle |
。 |
46 |
