XCMG 130 ton mobile truck crane machine QY130K-I price
Summary
- Model Number:QY130K-I
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Span:7.6m
- Max. Lifting Height:87m
- Max. Lifting Load:130ton
- Rated Lifting Moment:4998kN.m
- Rated Loading Capacity:130 ton
- Application:Construction
- Certification:CE/ISO9001
Specifications
- Weight:54900.000kg
- Condition:New
- Moving Type:Wheel
- Overall dimension:14980*3000*3950mm
- Engine rated power:162/2100kW/(r/min)
- Engine rated torque:1054/1500N.m/(r/min)
- Max. travel speed:80km/h
- Min. turning diameter:26m
- Min. ground clearance:301mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

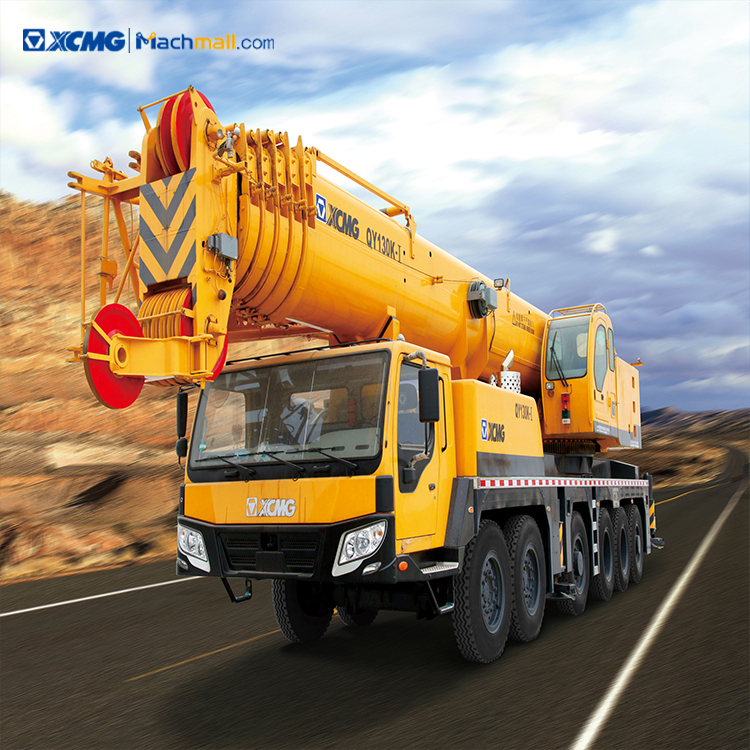

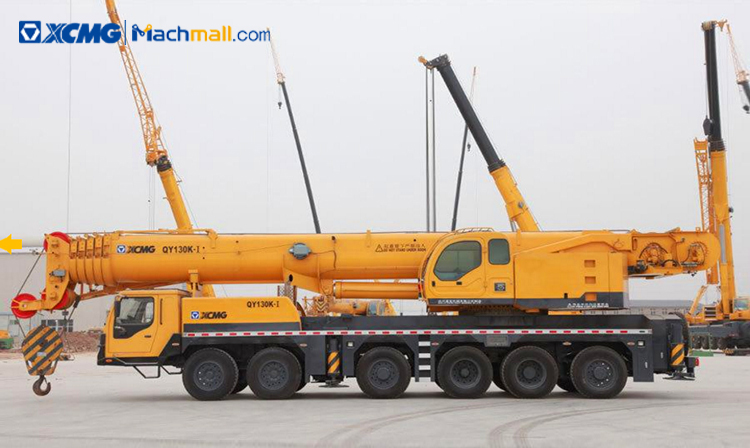

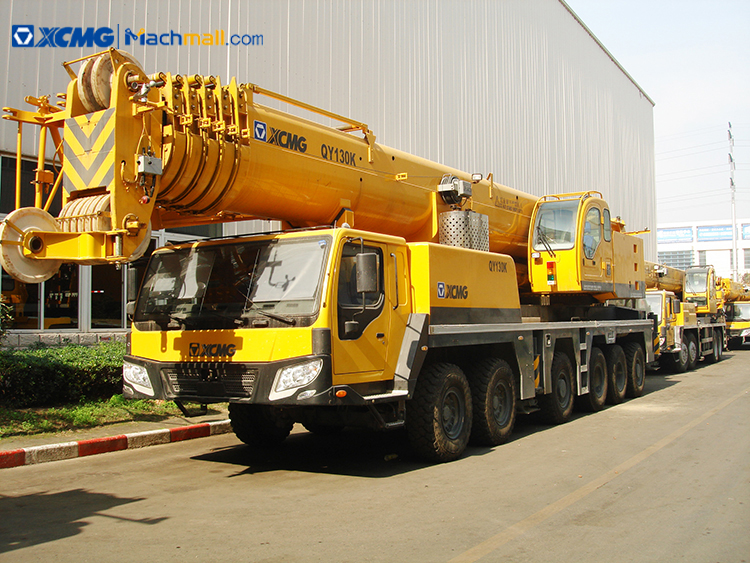

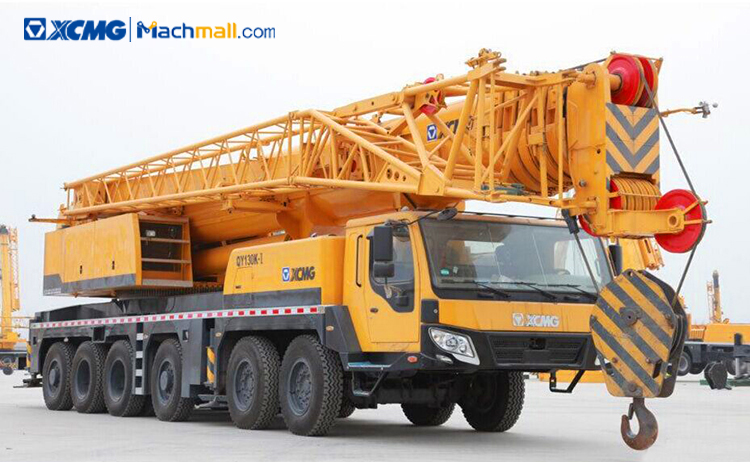

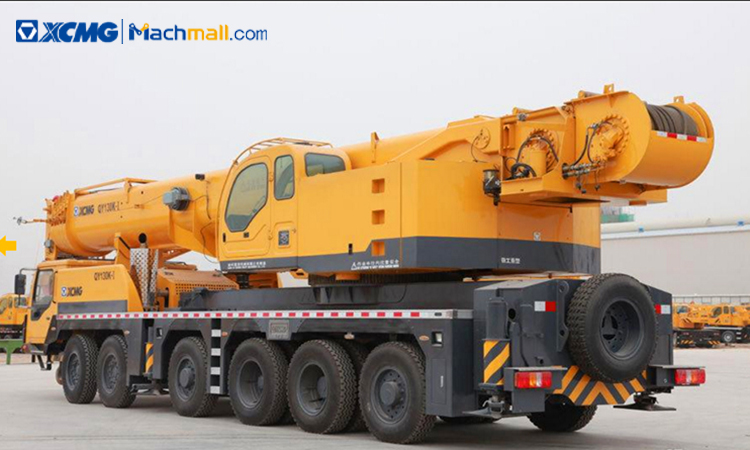

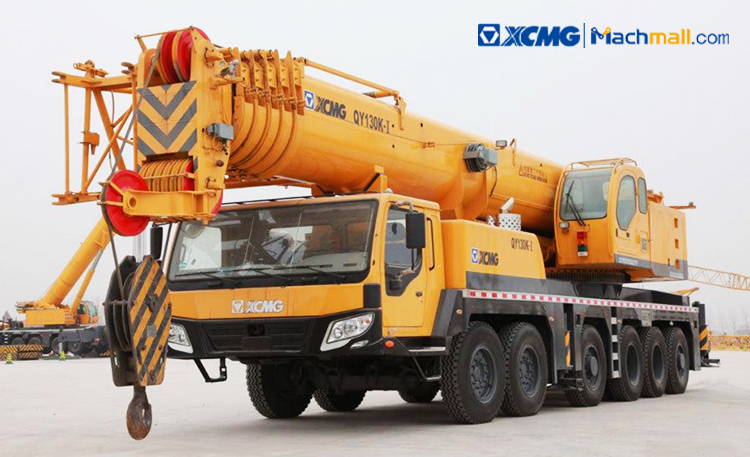

XCMG 130 ton mobile truck crane machine QY130K-I.
XCMG truck crane QY130K-I is positioned for the installation and maintenance of large petrochemical projects. XCMG truck crane QY130K-I adopts a 6-axle automobile special chassis with two-stage outrigger structure; precise multi-axle steering and emergency braking technology integrating mechanical, electrical, and hydraulic, and superior driving performance.
Performance Characteristics:
1. Structural optimization technology improves performance by 5%.
2. Added emergency steering system to improve driving safety.
3. Optimize the electrical control form to solve the system reliability problem.
4. Multi-axle vehicle leaf spring balance suspension technology to improve vehicle driving performance.
5. Integrated mode of auxiliary brake for truck crane, extending the service life of brake.
|
Item |
Unit |
QY130K-I |
||
|
Outline dimension |
Overall length |
mm |
14980 |
|
|
Overall width |
mm |
3000 |
||
|
Overall height |
mm |
3950 |
||
|
Mass |
Total mass in travel state |
kg |
54900 |
|
|
Axle load |
Axle 1, Axle 2 |
kg |
7500/7500 |
|
|
Axle 3, Axle 4 |
kg |
8300/12000 |
||
|
Axle 5, Axle 6 |
kg |
12000/7600 |
||
|
Power |
Crane superstructure engine |
Rated power |
kw/(r/min) |
162/2100 |
|
Rated torque |
N.m/(r/min) |
1054/1500 |
||
|
Crane carrier engine |
Rated power |
kw/(r/min) |
390/1800 |
|
|
Rated torque |
N.m/(r/min) |
2400/1080 |
||
|
Travel |
Max. travel speed |
km/h |
80 |
|
|
Min. turning diameter |
m |
25 |
||
|
Min. ground clearance |
mm |
301 |
||
|
Approach angle |
° |
20 |
||
|
Departure angle |
° |
14 |
||
|
Max. grade ability |
% |
40 |
||
|
Fuel consumption for 100km |
L |
80 |
||
|
Lifting performance |
Max. rated total lifting capacity |
t |
130 |
|
|
Min. rated working radius |
m |
3 |
||
|
Turning radius at turntable tail |
m |
4.6 |
||
|
Max. lifting torque |
kN.m |
4998 |
||
|
Working speed |
Max.slewing speed |
r/min |
1.8 |
|
|
Main winch with no load(single line) |
m/min |
115 |
||
|
Auxiliary winch with no load(single line) |
m/min |
115 |
||
