XCMG Official 200 ton truck crane XCT220 China big mobile lifting cranes for sale
.jpg)
Summary
- Model Number:XCT220
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Span:8.5m
- Max. Lifting Height:107m
- Rated Lifting Moment:6820kNm
- Rated Loading Capacity:220t
- Application:Construction
- Certification:CE/ISO9001
Specifications
- Weight:220000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official 200 ton truck crane XCT220 China big mobile lifting cranes.

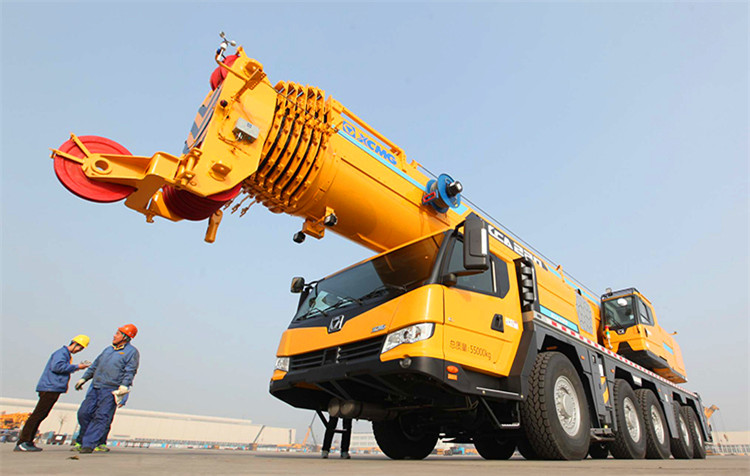

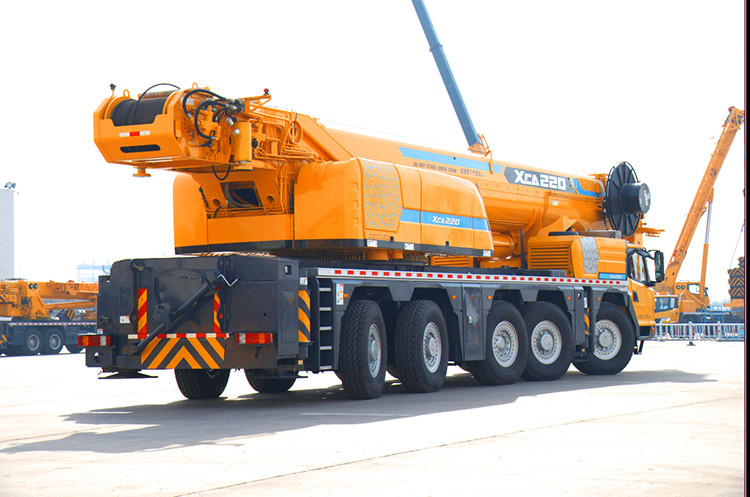

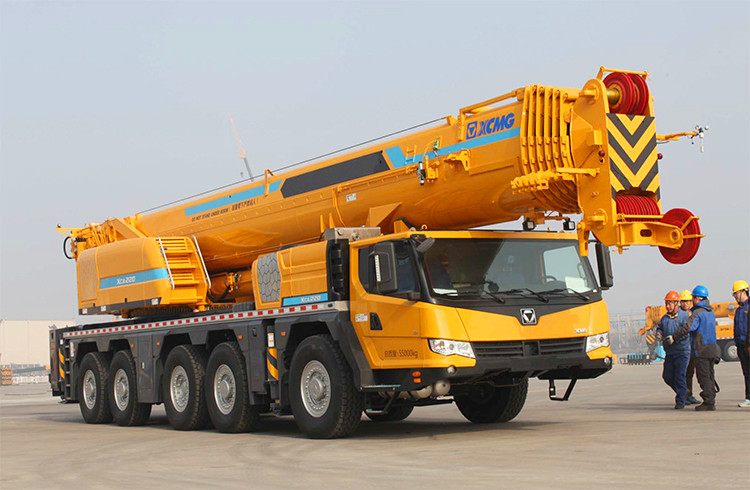

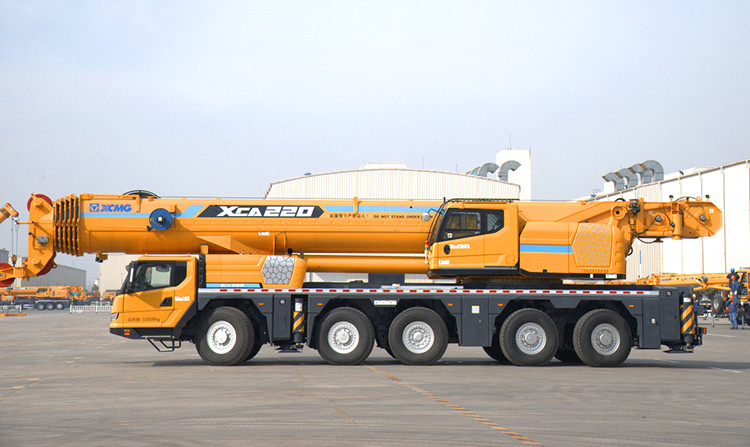

The crane is a five-axle 220 t All Terrain Crane with leading lifting performance.
Advantages and highlights:
1. Power and traveling performance
* Diesel engine, rated power 360kw, max. torque 2200N.m.
* 12-speed ZF automatic gearbox.
* Max. travel speed 84Km/h, Max. grade ability 67%.
2. Large tonnage crane's mono-engine system
* The whole vehicle shares the chassis engine. The power is transferred via the mechanic transmission to the upper body and supplies it with the power.
* Maintenance is to be carried out only on the mono-engine chassis system thus reducing the workload of maintenance.
*The annual maintenance cost of dynamic system is saved for more than 40%.
3. New highly efficient energy-saving hydraulic system
* Closed hydraulic system for lifting and slewing system, equipped with large-displacement pump, lifting speed with heavy load highly.
* Mature double-variable mechanism with fine control tactic, matching perfectly stably.
* Min. stable lifting speed (at drum) 2.5m/min, and min. stable slewing speed 0.1°/s.
|
Item |
Specification |
Unit |
|
|
Overall Length |
16721 |
mm |
|
|
Overall Width |
2990 |
mm |
|
|
Overall Height |
3930 |
mm |
|
|
Total vehicle mass in travel configuration |
54990 |
kg |
|
|
Engine rated power |
356/1900 |
kw/(r/min) |
|
|
Engine rated torque |
2300/1400 |
N.m/(r/min) |
|
|
Max. travel speed |
≥85 |
km/h |
|
|
Min. turning diameter |
≤24 |
m |
|
|
Min. ground clearance |
327 |
mm |
|
|
Approach angle |
18 |
° |
|
|
Departure angle |
13 |
° |
|
|
Braking distance (at 30 km/h, full load ) |
≤10 |
m |
|
|
Oil consumption per 100km |
≤37 |
L |
|
|
Exterior noise level during acceleration traveling |
≤88 |
dB (A) |
|
|
Noise level at seated position |
≤90 |
dB (A) |
|
|
Max. rated total lifting capacity |
220 |
t |
|
|
Min. rated working radius |
3000 |
mm |
|
|
Turning radius at turntable tail |
3065 |
mm |
|
|
Max. load moment |
Base boom |
7431 |
KN.m |
|
Fully-extended boom |
3423 |
KN.m |
|
|
Outrigger Span |
Longitudinal |
8.1 |
m |
|
Lateral |
8.3 |
m |
|
|
Boom Length |
Base boom |
14.4 |
m |
|
Fully-extended boom |
68.2 |
m |
|
|
Fully-extended boom+Jib |
106.8 |
m |
|
|
Jib offset angle |
0, 20, 40 |
° |
|
|
Time for boom raising |
≤60 |
s |
|
|
Time for boom extending fully |
≤660 |
s |
|
|
Max. slewing speed |
≥1.5 |
r/min |
|
|
Exterior noise level |
≤120 |
dB (A) |
|
|
Noise level at seated position |
≥130 |
dB (A) |
|
