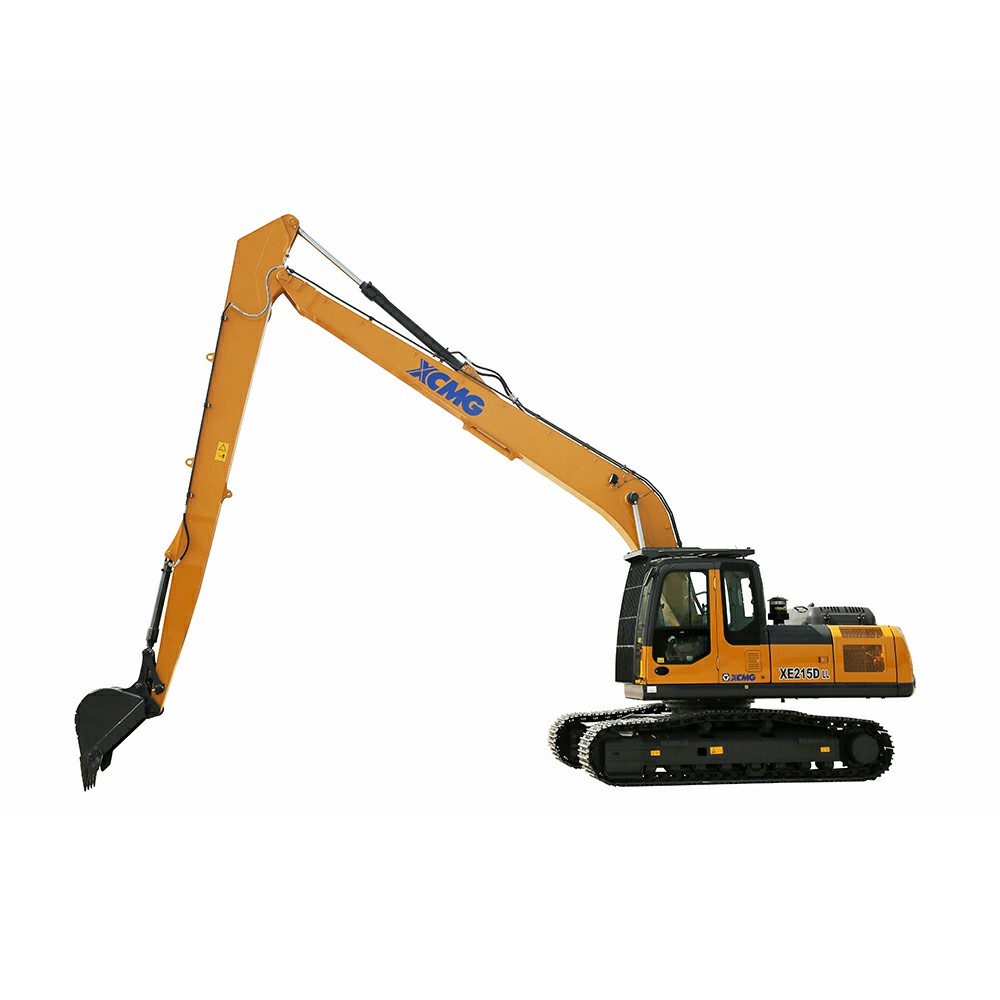

XCMG Official XE215DLL Crawler Excavator for sale
Summary
- Dimension(L*W*H):12140×3190×3130mm
- Weight:23900kg
- Model Number:XE215DLL
- Brand Name:XCMG
- Place of Origin:China
- Power Type:Diesel
- Type:Crawler Excavator
- Certification:CE/ISO9001
Specifications
- Weight:23900.000kg
- Condition:New
- Moving Type:Crawler
- Operating weight:23900Kg
- Bucket capacity:0.4m³
- Rotating speed:11.8r/min
- Ground pressure:38.6kPa
- Bucket digging force:103kN
- Max. digging height:13500mm
- Max. dumping height:11150mm
- Max. digging depth:11610mm
- Max. digging reach:15430mm
- Min. swing radius:4730mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Main Specifications
|
Model |
UOM |
Parameters |
|
Operating weight |
Kg |
23900 |
|
Bucket capacity |
m³ |
0.4 |
|
Engine |
||
|
Model |
/ |
QSB7 |
|
Electronic fuel injection |
/ |
√ |
|
Four stroke |
/ |
√ |
|
Water-cooling |
/ |
√ |
|
Turbo |
/ |
√ |
|
Empty in the cold |
/ |
√ |
|
Number of cylinders |
/ |
√ |
|
Rated power |
kW/rpm |
135/2050 |
|
Maximum torque / speed |
N.m/rpm |
740/1250 |
|
Displacement |
L |
6.7 |
|
Main performance |
||
|
Walking speed |
km/h |
5.4/3.1 |
|
Rotary speed |
r/min |
11.8 |
|
Climbing ability |
° |
30 |
|
Ground pressure |
KPa |
38.6 |
|
Bucket digging force |
KN |
103 |
|
Arm Digging Force |
KN |
57 |
|
Maximum traction |
KN |
184 |
|
Hydraulic system |
||
|
Main pump rated flow |
L/min |
2*225 |
|
Main safety valve pressure |
MPa |
34.3/37 |
|
Travel system pressure |
MPa |
34.3 |
|
Rotary system pressure |
MPa |
27.5 |
|
Pilot system pressure |
MPa |
3.9 |
|
Oil capacity |
||
|
Fuel tank capacity |
L |
400 |
|
Hydraulic tank volume |
L |
220 |
|
Engine oil capacity |
L |
19.5 |
|
Model |
UOM |
Parameters |
|
Outline dimension |
||
|
Total length |
mm |
12140 |
|
Total width |
mm |
3190 |
|
Total height |
mm |
3130 |
|
Table width |
mm |
2830 |
|
Track Shoe Length |
mm |
4255 |
|
Overall width of chassis |
mm |
2990 |
|
Track width |
mm |
800 |
|
Track base |
mm |
34G2 |
|
Gauge |
mm |
2390 |
|
Counterweight clearance |
mm |
1080 |
|
Minimum ground clearance |
mm |
476 |
|
Minimum turning radius |
mm |
2890 |
|
Track Heiqht |
mm |
942 |
|
Scope of work |
||
|
Maximum digging height |
mm |
13500 |
|
Maximum unloading height |
mm |
11150 |
|
Maximum digging depth |
mm |
11610 |
|
Maximum vertical mining depth |
mm |
8800 |
|
Maximum digging radius |
mm |
15430 |
|
Minimum turning radius |
mm |
4730 |
|
Standard |
||
|
Boom length |
mm |
8140 |
|
Arm length |
mm |
6335 |
|
Bucket capacity |
m³ |
0.4 |
Materials and specifications may be changed at any time without prior notice
