Summary
- Rated Speed:5.4/3.2(km/h)
- Max Digging Radius:11114mm
- Machine Weight:36600kg
- Maximum Digging Depth:7423mm
- Maximum Digging Height:10445mm
- Bucket capacity:1.4~1.8m3
- Operating Weight:37ton
- Model Number:XE370CA
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:36600.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

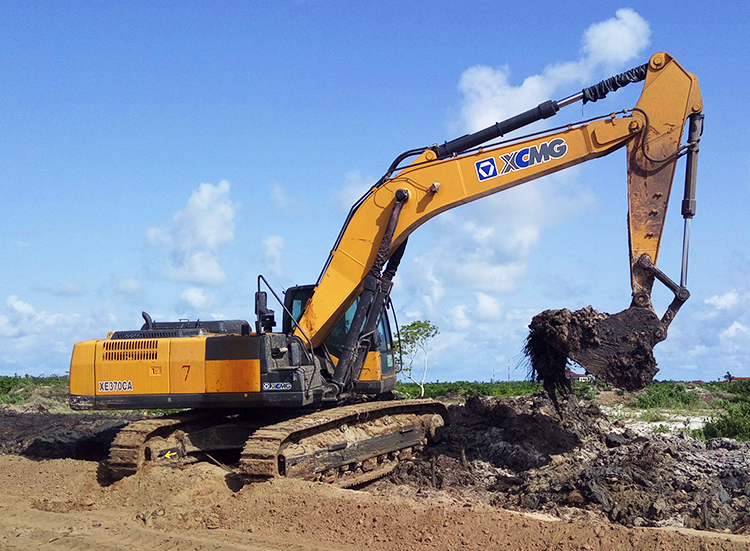

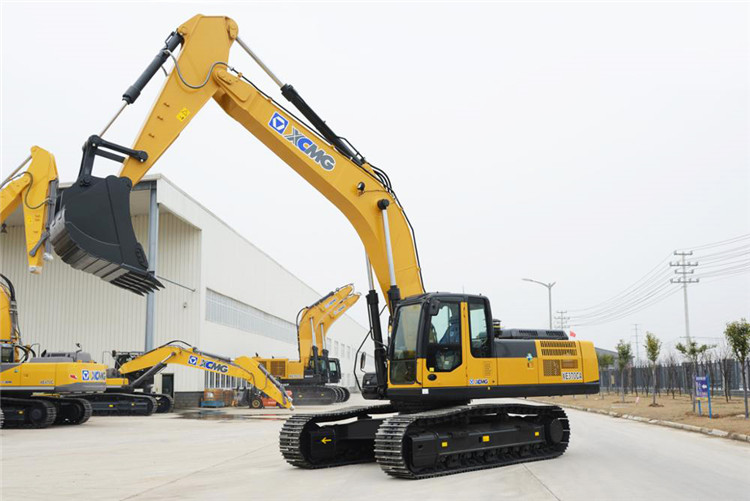

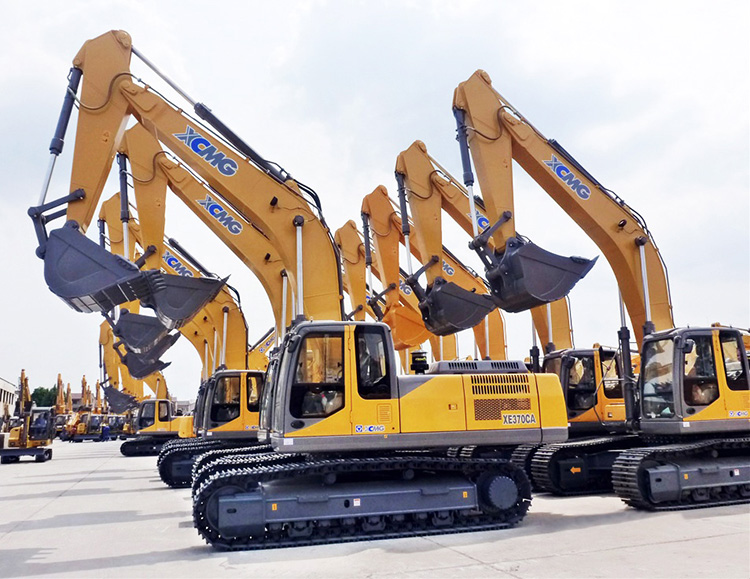

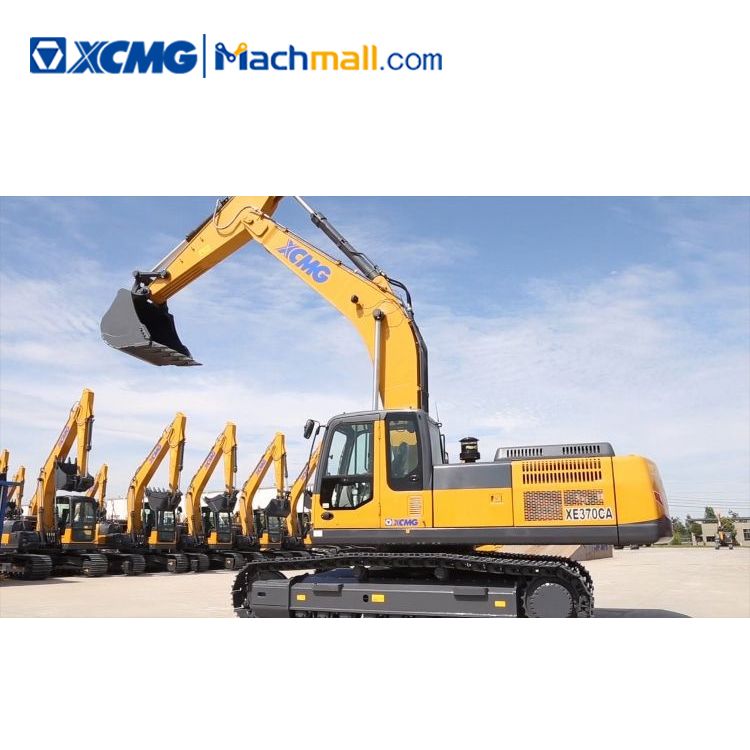

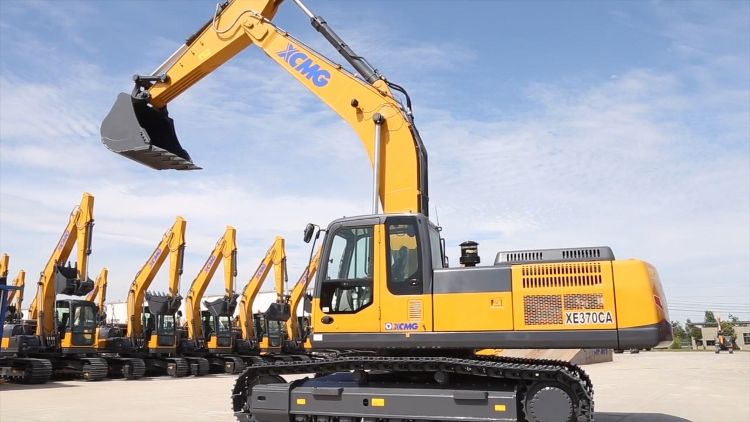

XCMG official 37 ton XE370CA hydraulic excavators Chinese big track excavator.

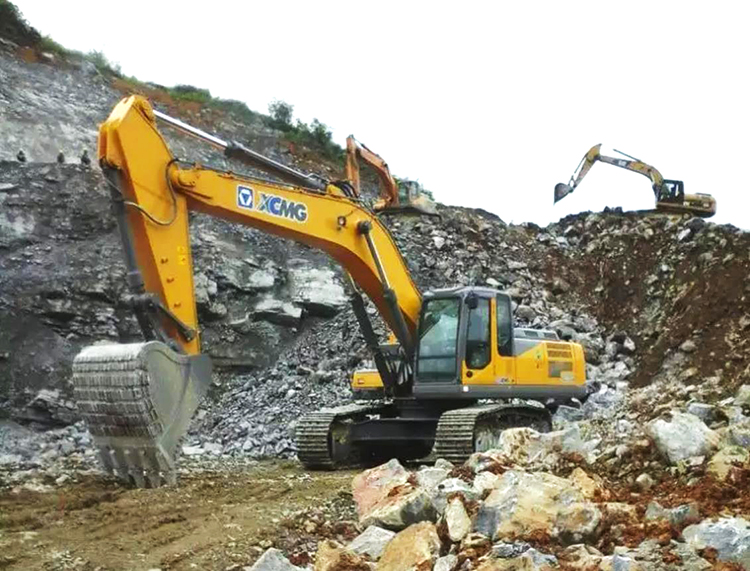

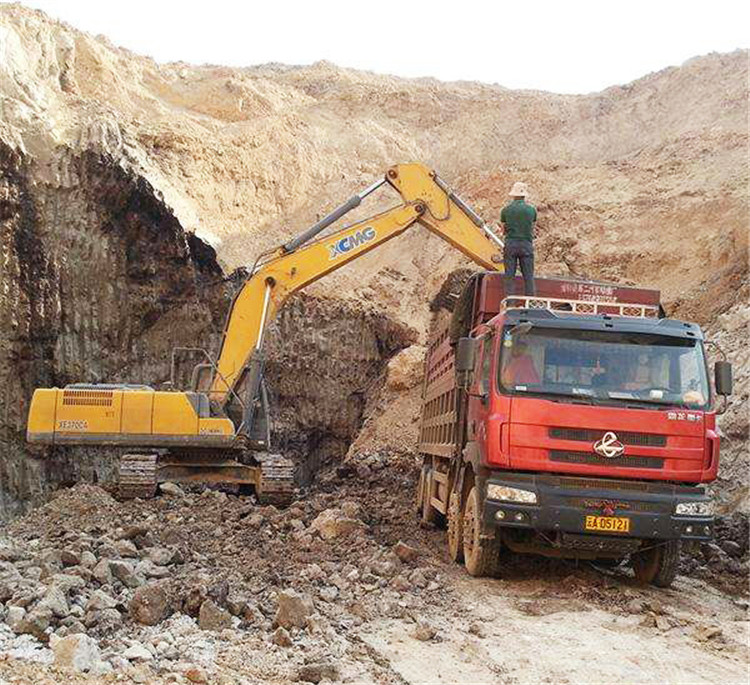

XCMG XE370CA hydraulic excavators as a model featuring strong power, excellent energy saving, outstanding environmental protection and strong durability, etc., and especially suitable for earthwork engineering, tunnels and other harsh construction environment.
Model Characteristics:
1. Ecological and economical
* The ISUZU engine with point-type fuel injection technology provides strong power.
* The negative flow control system with double-pump confluency realizes efficient operating.
* Smart electronic control system can achieve dynamic balance of power and hydraulic system.
2. Multiple applications
* Different boom, arm and bucket combinations to maximize utilization of different conditions.
* Multi-functional machine system meets various job requirements such' as digging, crushing, and thumb clamp.
* ESS microcomputer power control system maintains the best efficiency and economy.
|
Description |
Unit |
Parameter value |
|
|
Operating weight |
kg |
36600 |
|
|
Bucket capacity |
m³ |
1.4～1.8 |
|
|
Engine |
Model |
Engine |
ISUZU AA-6HK1XQP |
|
Direct injection |
--- |
√ |
|
|
Four strokes |
--- |
√ |
|
|
Water cooling |
--- |
√ |
|
|
Turbo-charging |
--- |
√ |
|
|
Air to air intercooler |
--- |
√ |
|
|
No. of cylinders |
--- |
6 |
|
|
Output power |
kW/ r/min |
190.5/2000 |
|
|
torque/speed |
N.m |
872.8/1700 |
|
|
Displacement |
L |
7.79 |
|
|
Travel speed（H/L) |
km/h |
5.4/3.2 |
|
|
Main performance |
Gradeability |
% |
70 |
|
Rotary speed |
r/min |
9.6 |
|
|
Ground pressure |
kPa |
66.6 |
|
|
Bucket digging force |
kN |
263 |
|
|
Arm digging force |
kN |
225 |
|
|
Working scope (2.71m arm) |
Max. dumping height |
mm |
6947 |
|
Max. digging depth |
mm |
6927 |
|
|
Max. digging depth at the range of level 8 feet |
mm |
6709 |
|
|
Max. vertical wall digging depth |
mm |
5312 |
|
|
Max. digging reach |
mm |
10470 |
|
|
Min. swing radius |
mm |
4424 |
|
|
Working scope (2.5m arm) |
Max. digging height |
mm |
9891 |
|
Max. dumping height |
mm |
6820 |
|
|
Max. digging depth |
mm |
6786 |
|
|
Max. digging depth at the range of level 8 feet |
mm |
6666 |
|
|
Max. vertical wall digging depth |
mm |
4914 |
|
|
Max. digging reach |
mm |
10414 |
|
|
Min. swing radius |
mm |
4416 |
|
|
Worker Standard |
Length of boom |
mm |
6400 |
|
Length of arm |
mm |
2670 |
|
|
Bucket capacity |
m³ |
1.6 |
|
|
Worker Optional |
Length of arm |
mm |
2900/3200/4000 |
|
Bucket capacity |
m³ |
1.4/1.5/1.8 |
|
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
