XCMG elevated lift XGS28 28m hydraulic telescopic boom lift
Summary
- Weight:16600kg
- Overall Dimension:12100*2490*3050mm
- Table Size:2400*900mm
- Max Lifting Height:28.2m
- Rated Loading Capacity:230/340kg
- Power:53kw
- Lift Drive / Actuation:hydraulic
- Lift Mechanism:Telescopic lift
- Model Number:XGS28
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:16600.000kg
- Condition:New
- Moving Type:Other
- Wheelbase:3000mm
- Maximum traveling speed:6.1km/h
- Engine brand:Cummins
- Minimum turning radius:6.7m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG elevated lift XGS28 28m hydraulic telescopic boom
lift.

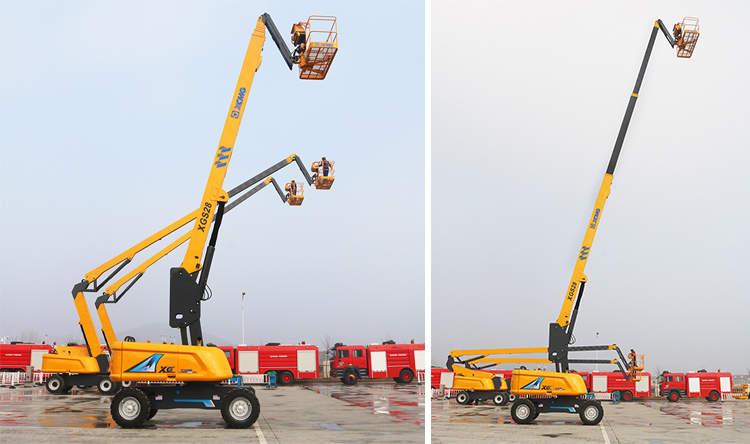

XGS28 elevated lift telescopic boom lift developed with
Max. working height at 28.2m, max. payload at 340kg, max. gradeability at 45%.
This vehicle is structured as three sections of
telescopic arms and tower arm mechanism, with a small fly jib, featuring wide
work range. Dual payload control system is adopted to adjust the work range
depending on the payload, meeting the different loading requirements and thus
becoming an ideal selection in the construction of building, bridges, steel
structures and stadiums.
Product Highlights:
1.Adjust the work range by itself according to the
payload, meeting the different loading requirements.
2.Making the construction more effective, suitable for
the relatively low and narrow site.
3.Greatly dropping the fault ratio and extend the service
life of complete vehicle.
4.Making the fault diagnosis and maintenance easier.
|
Item |
Unit |
XGS28 |
|
a. Overall
length of complete machine |
mm |
12100 |
|
b. Overall width
of complete machine |
mm |
2490 |
|
c. Overall
height |
mm |
3050 |
|
d. Wheelbase |
mm |
3000 |
|
Maximum working
height |
m |
28.2 |
|
Maximum platform
height |
m |
26.2 |
|
Maximum working
range |
m |
23.2 |
|
Maximum carrying
weight |
kg |
230/340 |
|
Luffing range of
boom |
° |
-5~+75 |
|
Slewing angle of
turntable |
° |
360 |
|
Maximum tail
swing |
mm |
1500 |
|
Platform size |
mm |
2400×900 |
|
Slewing angle of
platform |
° |
160 |
|
Overall weight |
kg |
16600 |
|
Maximum
traveling speed |
km/h |
6.1 |
|
Minimum turning
radius |
m |
6.7 |
|
Minimum ground
clearance |
mm |
310 |
|
Maximum
gradeability |
% |
45 |
|
Tire
specification |
- |
Foam tire
385/65-22.5 |
|
Engine model |
- |
QSF2.8t3TC71 |
|
Engine rated
power |
kW/(r/min) |
53/(2200) |
