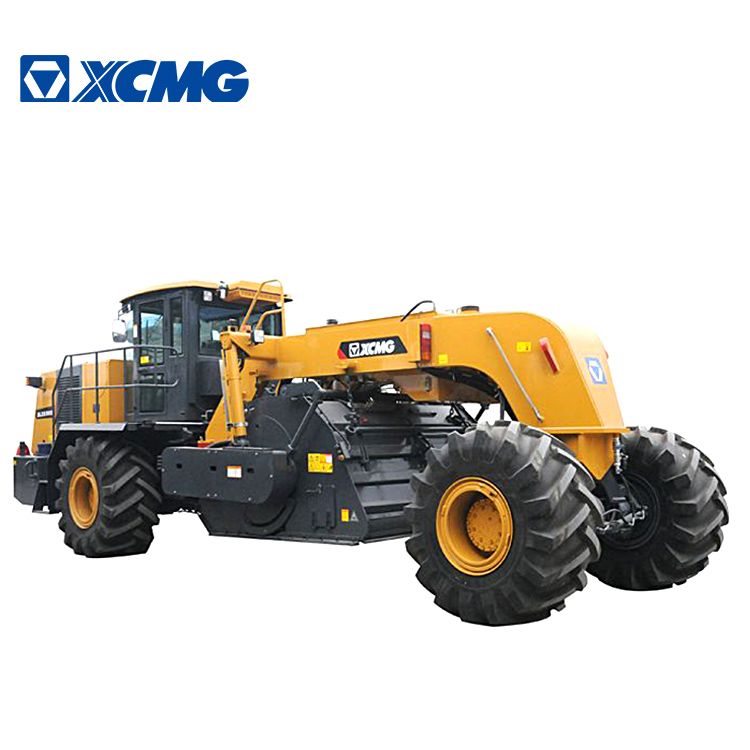

XCMG manufacturer new soil stabilizers XLZ2303 China Xuzhou soil stabilizer machine for road price
.jpg)
Summary
- Rated Power:447kw/2100rpm
- Model Number:XLZ2303
- Place of Origin:Jiangsu, China
- Rated Speed:0-10km/h
- Certification:CE/ISO
Specifications
- Weight:29500.000kg
- Condition:New
- Moving Type:Other
- Milling width: 2300mm
- Brand Name: XCMG
- Dimension(L*W*H):10193*3161*3450mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG manufacturer new
soil stabilizers XLZ2303 China Xuzhou soil stabilizer machine for road.
XLZ2303
road reclaimer is a set of multi-functional road maintenance equipment. It is
mainly used for upgrading and reconstruction of old asphalt pavement. It is
mainly used for mixing fillers, cement, limes and other objects with natural
soil, So as to improve mechanical and physical properties of soil. It can be
also used for milling damaged asphalt or asphalt concrete pavement with the
thickness of 200mm and below.
Performance and
characteristics：
*
The undercarriage system has two speed modes (high speed mode and low speed mode);
it adopts dual full-bridge driver and four-wheeled walking mode. Its low-pres-
sure wide-base big tread pattern tires have a good road holding capacity.
*
Sprinkling system has the functions of sprinkling water. The sprinkling system
can manually and intelligently control flow of sprinkled medium.
*
Automatic depth control: built- in sensor of hydraulic cylinder is used for
detection, and milling depth can be displayed on display.
*
The intelligent control system can achieve on-line display, fault diagnosis,
fault alarm, maintenance. hints and other advanced functions in working mode
and walking mode; at the same time, various data can be directly read through
display.
|
Item |
Unit |
XLZ2303 |
|
Milling width |
mm |
2300 |
|
Maximum milling depth |
mm |
400 |
|
Cutter spacing |
mm |
17 |
|
Diameter of milling wheel (with cutter) |
mm |
1380 |
|
Manufacturer |
Imported Cummins |
|
|
Cooling type |
Water-cooling |
|
|
The quantity of cylinder stator |
6 |
|
|
Rated power |
kW |
447 |
|
Engine speed |
rpm |
2100 |
|
Oil consumption: Full load |
kg/h |
98.3 |
|
Working speed |
km/h |
0-2.5 |
|
Traveling speed |
km/h |
0-10 |
|
Theoretical gradeability (working gear) |
% |
40 |
|
Front axle load |
kg |
21000 |
|
Rear axle load |
kg |
10000 |
|
Shipping weight |
kg |
29500 |
|
Working weight |
kg |
/ |
|
Fuel tank |
L |
1000 |
|
Hydraulic oil tank |
L |
400 |
|
Water tank |
L |
750 |
|
Voltage of electric system |
V |
24 |
|
Machinery(length*width*height) |
mm |
10193x3161x3450 |
