XCMG mini light road roller XMR083 China 1 ton small double drum road roller compactor machine price
Summary
- Weight:800kg
- Dimension(L*W*H):2695*708*1195mm
- Power(W):5000
- Model Number:XMR083
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Grade Ability:30%
- Travel Speed:0~3.6km/h
- Type:Double Drum Roller
- Certification:CE/ISO9001
Specifications
- Weight:8000.000kg
- Condition:New
- Moving Type:Other
- Exciting Force:15.8KN
- Vibrational frequency:55hz
- Drum width:708mm
- Diesel tank volume:5.5L
- Hydraulic tank volume:16L
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
mini light road roller XMR083 China 1 ton small double drum road roller compactor machine.

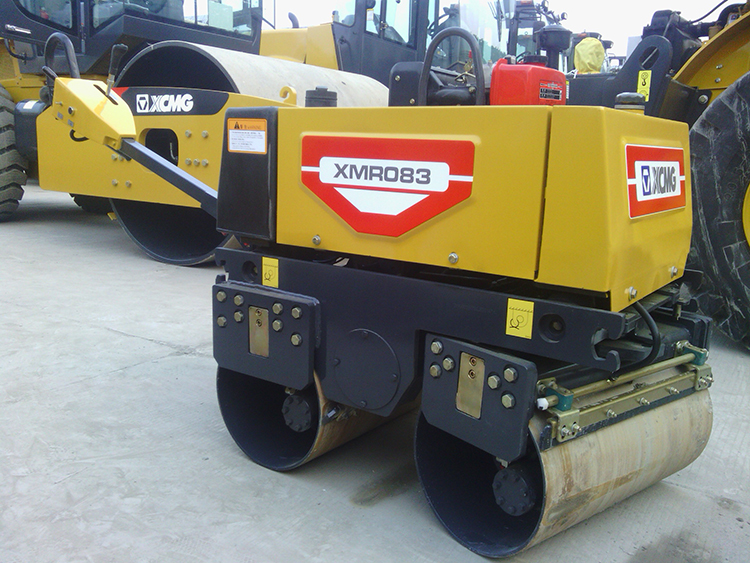

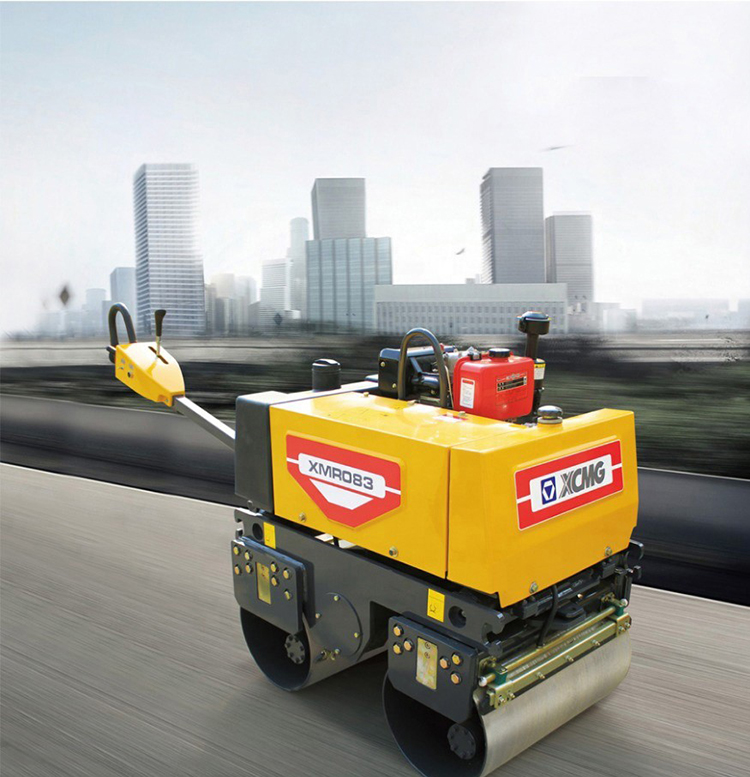

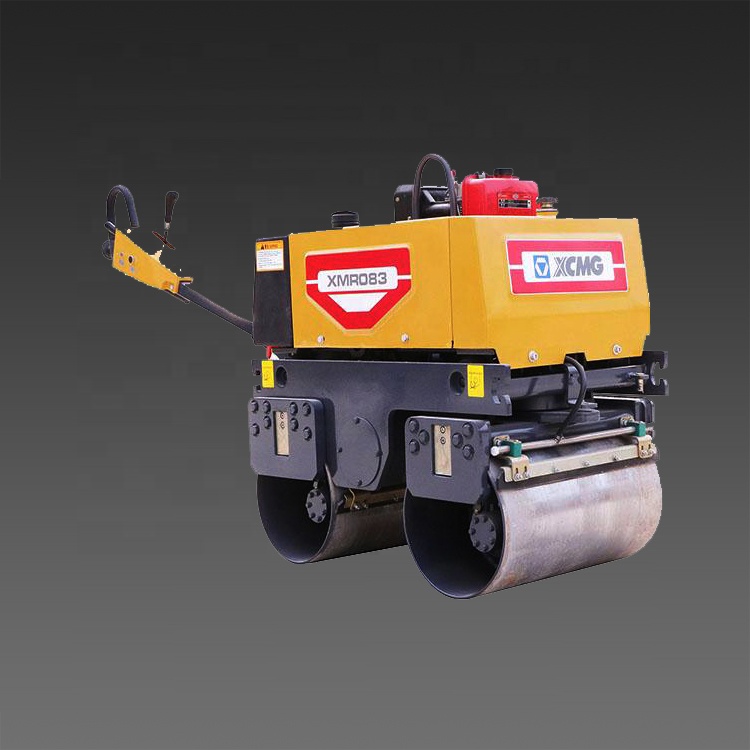

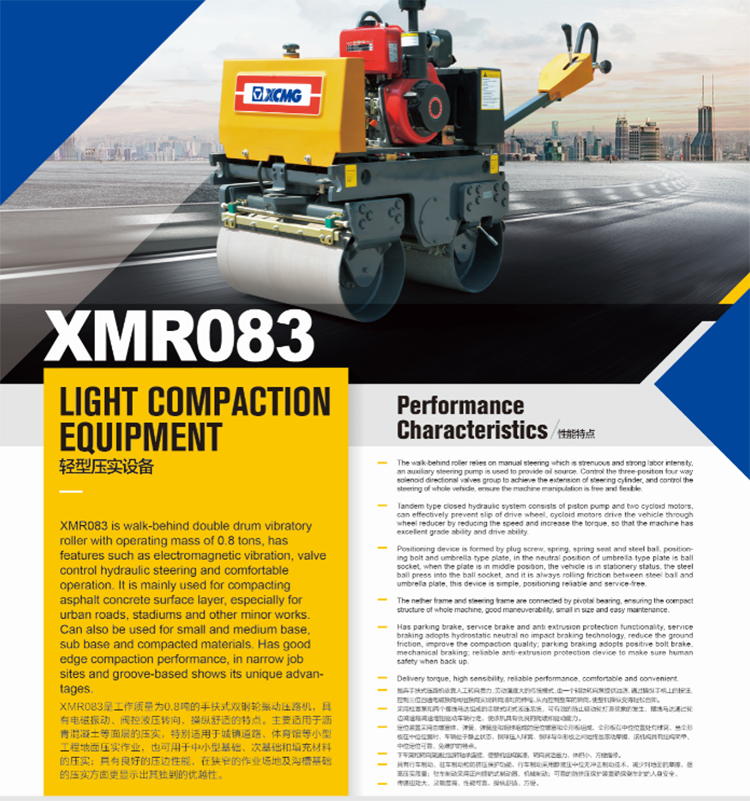

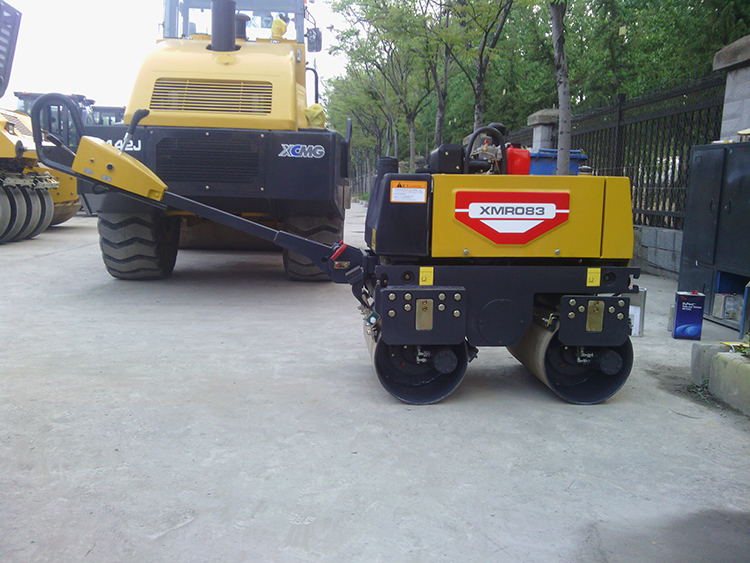

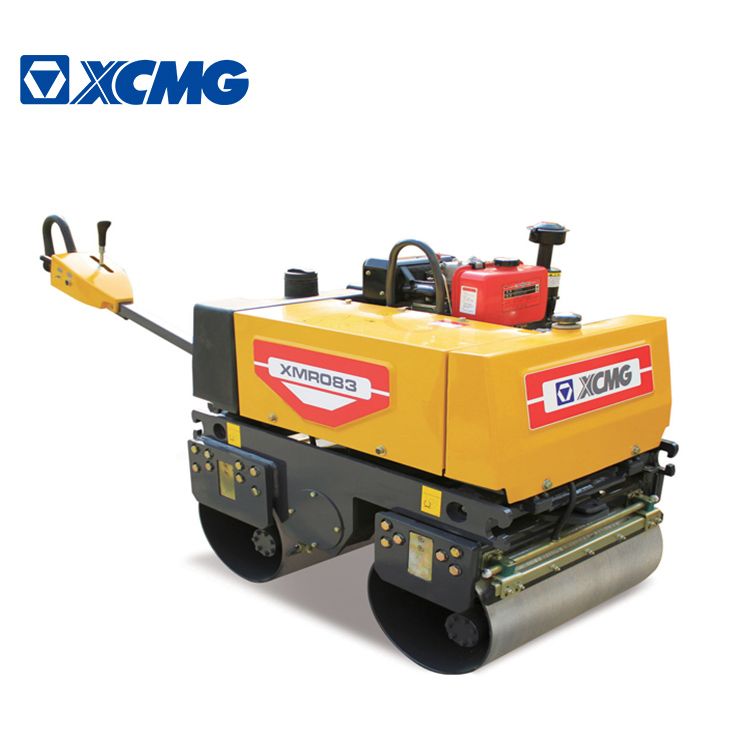

XCMG XMR083 is walk-behind double drum vibratory roller with operating mass of 0.8 tons, has features such as electromagnetic vibration, valve control hydraulic steering and comfortable operation. It is mainly used for compacting asphalt concrete surface layer, especially for urban roads, stadiums and other minor works.
Performance Characteristics:
* Has good edge compaction performance, in narrow job sites and groove-based shows its unique advantages.
* Achieve the extension of steering cylinder, and control the steering of whole vehicle, ensure the machine manipulation is free and flexible.
* Can effectively prevent slip of drive wheel, so that the machine has excellent grade ability and drive ability.
* The device is simple, positioning reliable and service-free.
* Ensure the compact structure of whole machine, good maneuverability, small in size and easy maintenance.
|
Item |
XMR083 |
|
Operating mass |
800kg |
|
Drum diameter |
400mm |
|
Drum width |
708mm |
|
Speed range |
0～3.6km/h |
|
Theoretical gradeability |
30% |
|
Minimum turning radius |
3135mm |
|
Minimum ground clearance |
250mm |
|
Wheel base |
720mm |
|
Steering angle |
±15° |
|
Vibrational frequency |
55Hz |
|
Nominal amplitude |
0.32mm |
|
Exciting force |
15.8kN |
|
Engine type |
186F |
|
Rated speed |
2600r/min |
|
Engine rated power |
5kW |
|
Engine fuel consumption |
280g/kW.h |
|
Overall dimension(length× width× height) |
2695×760×1200mm |
|
Hydraulic tank volume |
16L |
|
Diesel tank volume |
5.5L |
|
Water tank volume |
40L |
