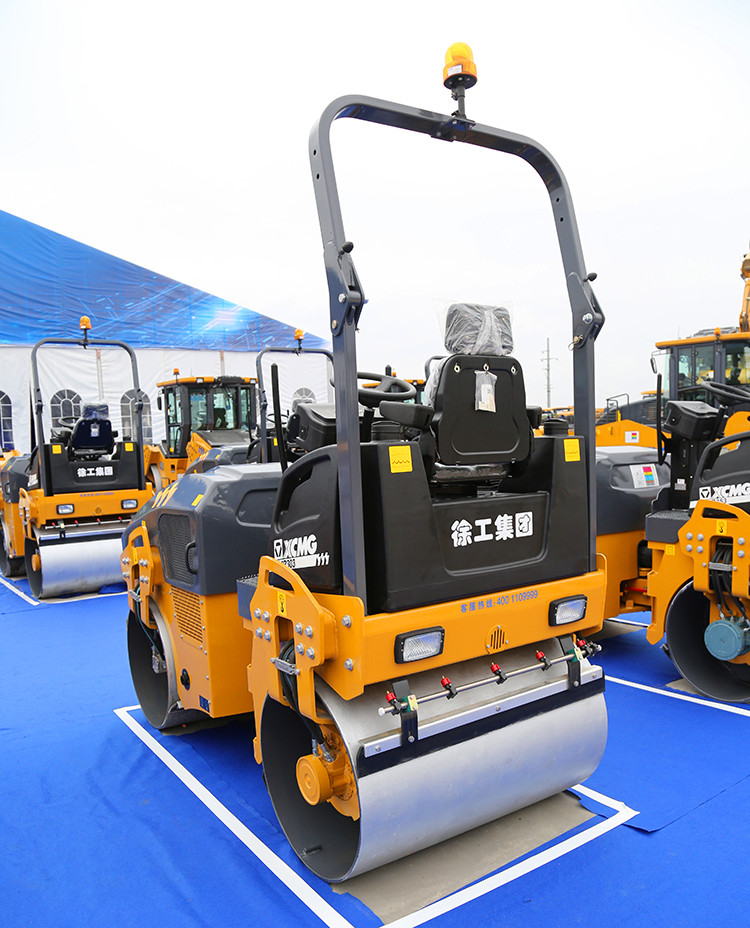

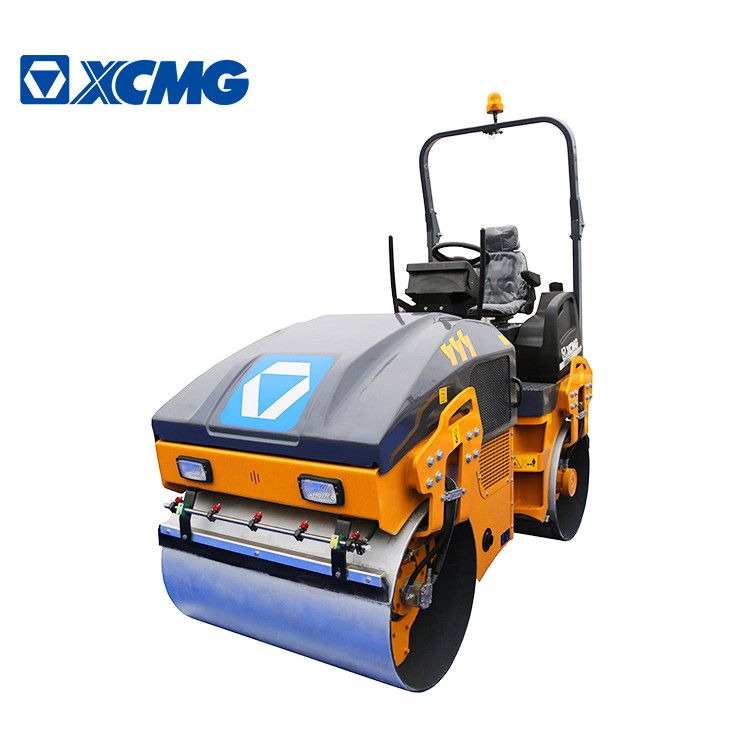

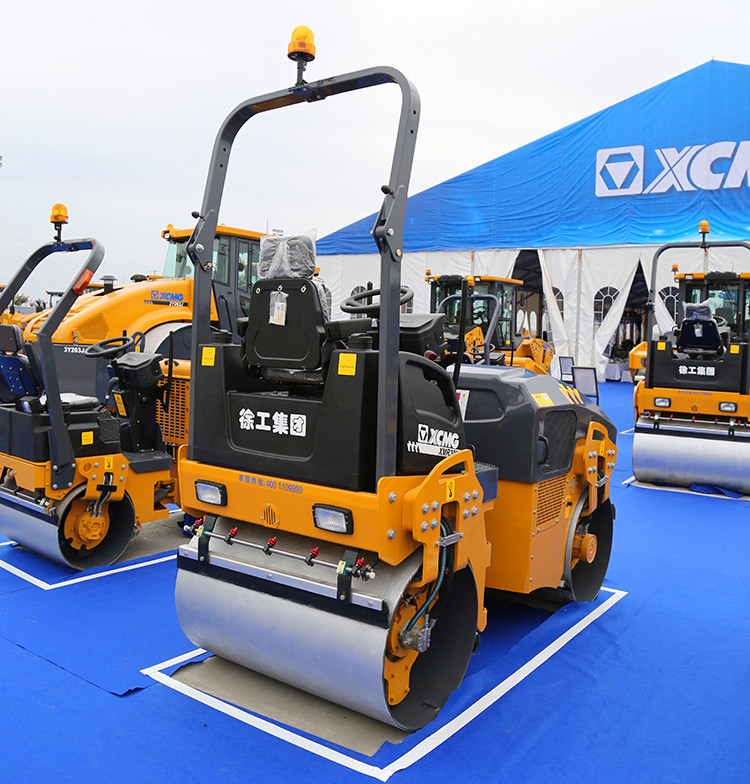

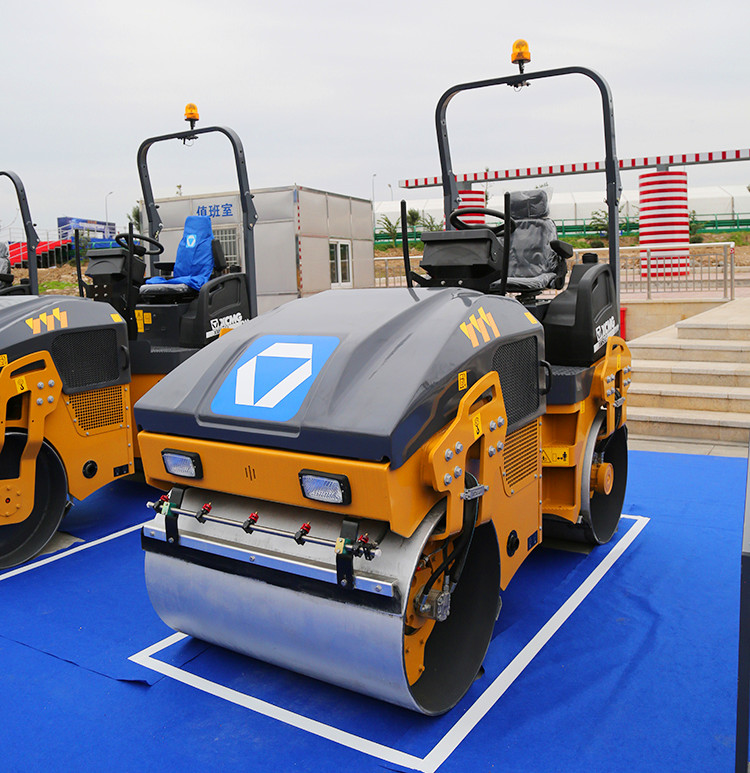

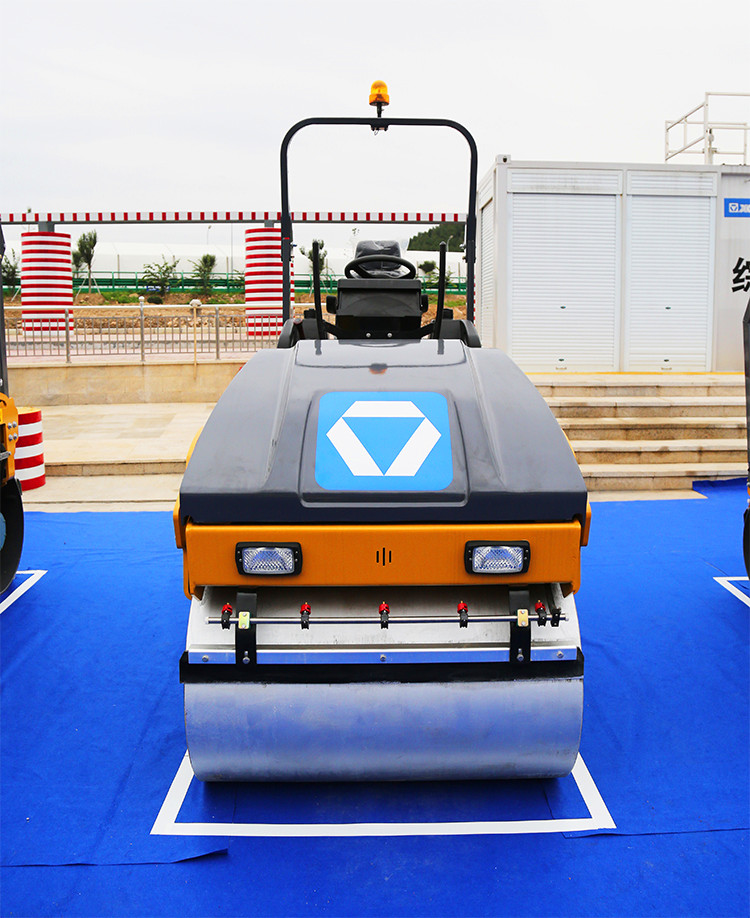

XCMG Official XMR303 China 3 Ton Mini Double Drum Vibratory Road Roller Compactor
.jpg)
Summary
- Weight:3t
- Dimension(L*W*H):2682*1328*2722mm
- Power(W):28.5kW
- Model Number:XMR303
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Grade Ability: 30%
- Travel Speed: 0-9.5km/h
- Static Linear Pressure:129N/cm
- Type:Vibratory Roller
- Certification:CE/ISO9001
Specifications
- Weight:3000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official XMR303 China 3 Ton Mini Double Drum Vibratory Road Roller Compactor.
XMR303 is a light vibratory roller with operating weight of 3 tons. This machine is suitable for surface and edge compaction construction for asphalt engineering, cement engineering and So on, also suitable for sub-base and base, sand and gravel material compaction work, is the idealist compaction machinery for all sorts of parking lot construction, road, sidewalks and bikeway compaction, as well as a variety of road maintenance engineering.
Performance Characteristics:
* Closed hydraulic drive system is adopted to realize stepless speed change.
* Brake system uses the neutral position braking, emergency braking and parking brake, short braking distance and high braking torque, ensuring the safety of the product.
* The front vision of machine is less than 1 x 0.75 m, rear view without any shade, which provides drivers with a good sight range.
* The vibration system can realize the simultaneous vibration and independent vibration of the rear and front drum, and meets the different working conditions.
* High frequency vibration and excitation force design, high working efficiency, good compaction effect.
* Vibration drum width is larger than frame width, convenient to observe compaction condition of drum edge in the construction.
|
Parameter |
Unit |
XMR303 |
|
Working weight |
kg |
3000 |
|
Static line load (front/rear) |
N/cm |
129/129 |
|
Vibration frequency |
Hz |
60 |
|
amplitude |
mm |
0.46 |
|
Exciting force |
kN |
32 |
|
Vibration wheel (diameter x width) |
mm |
746×1200 |
|
Theoretical climbing ability |
% |
30 |
|
Speed of work |
km/h |
0～ 9.5 |
|
Wheelbase |
mm |
1870 |
|
Steering angle |
° |
±30 |
|
Swing angle |
° |
±10 |
|
Minimum turning radius (inner) / (outside) |
mm |
2990 / 4190 |
|
Minimum ground clearance |
mm |
290 |
|
engine model |
|
ZN390B |
|
rated power |
kW |
28.5 |
|
Rated speed |
r/min |
2600 |
