XCMG Official drilling machine 150 kn rotary drilling rig XR150D III piling rig for sale



Summary
- Certification:CE/ISO
- Dimension(L*W*H):3140*3262*18592mm
- Weight:46000kg
- Power(W):133kW
- Voltage:380V
- Usage:Water Well
- Model Number:XR150D III
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Power Type:Electric
- Type:Rotary Drilling Rig
Specifications
- Weight:46000.000kg
- Condition:New
- Moving Type:Other
- Operating weight:63t
- Max. output torque:205 kN m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

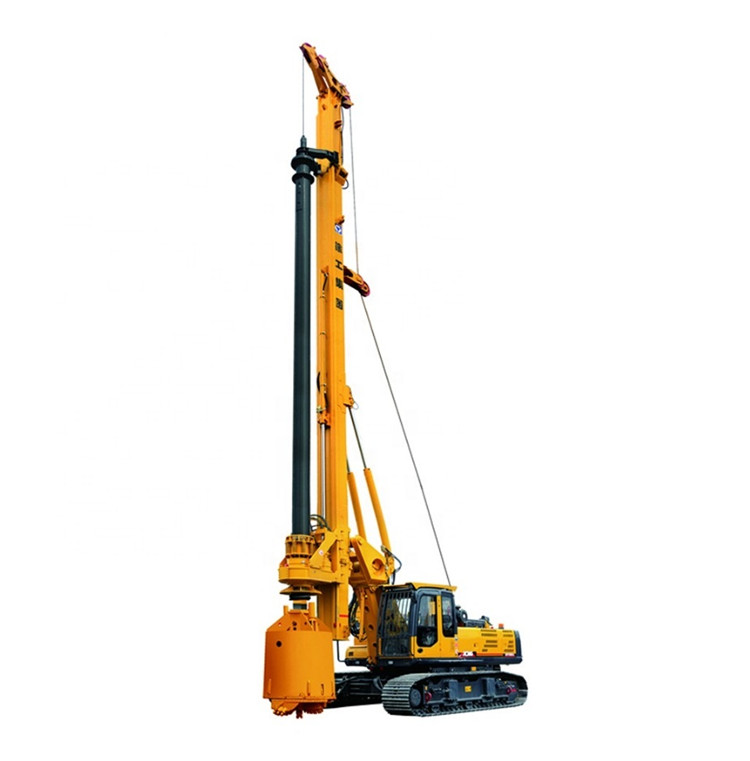

XCMG Official Rotary Drilling Rig XR150D III.
XR150DⅢ rotary drilling rig is widely applied in pore-forming work of the cast-in-place concrete pile in construction of foundation works, such as highways, railways, bridges, ports and high-rise buildings. Drilling with friction type and machine-locked drill rods.
1.Chassis
XR150DⅢ is equipped with the dedicated chassis of extraordinary stability. The chassis adopts a heavy-duty hydraulic retractable crawler to provide transport convenience and excellent traveling performance.
2.Engine system
It adopts the guangxi electric control turbo-supercharged engine to provide strong power and conformity with Euro III emission standard.
3.Hydraulic system
With the hydraulic pressure system adopted threshold power control and negative flow control, the system acquired high efficiency and higher energy conservation.
4.Rotary drive
The power unit is controlled by a pressurizing or pulling hydraulic cylinder, installed with drilling hydraulic motor, spring shock absorber at the upper part and the drive head (opening the drill head) at the lower part, in addition, it’s also equipped with the driver set suitable for friction-type and internal locking type drill rods, as well as a drill rod guide frame with bearings.
Main Technical Specification |
|||
Engine |
Model |
|
B5.9-C |
Rated Power |
kW |
133 |
|
Rotary Drive |
Max. output torque |
kN·m |
150 |
Rotary speed |
r/min |
6~28 |
|
Max. Drilling Diameter |
mm |
13,001,500 |
|
Max. Drilling Depth |
m |
48,55 |
|
Pull-Down Cylinder |
Max.pull-down piston push |
kN |
120 |
Max.pull-down piston pull |
kN |
160 |
|
Max.pull-down piston stroke |
m |
3.5 |
|
Main Winch |
Max.Pulling force |
kN |
145 |
Max.line speed |
m/min |
75 |
|
Auxiliary Winch |
Max.Pulling force |
kN |
50 |
Max.line speed |
m/min |
60 |
|
Mast Rake |
Side/forwards/backwards |
±3°/5°/15° |
|
Undercarrige |
Max. traveling speed |
km/h |
3.2 |
Max.grade ability |
% |
40 |
|
Min. Clearance |
mm |
352 |
|
Track shoe width |
mm |
800 |
|
Distance between tracks |
mm |
3200~4200 |
|
Hydraulic System |
Working pressure |
Mpa |
32 |
Overall Drilling Weight |
t |
47 |
|
Dimension |
Working condition |
mm |
7122X4200X17250 |
Transportation condition |
mm |
12300X3200X3060 |
|
