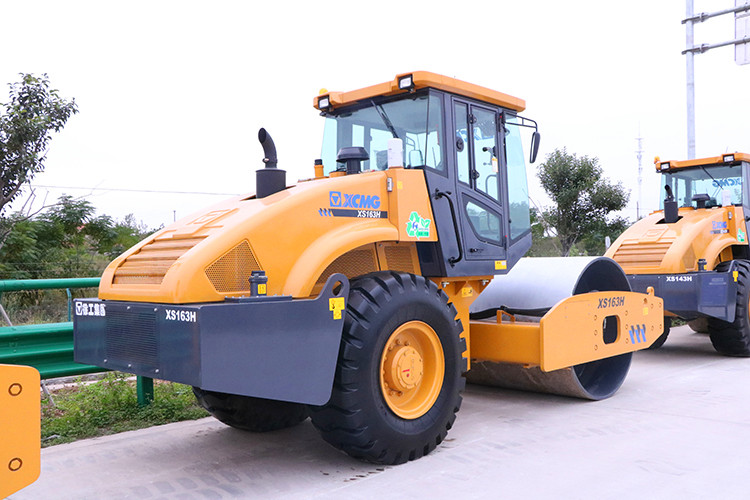

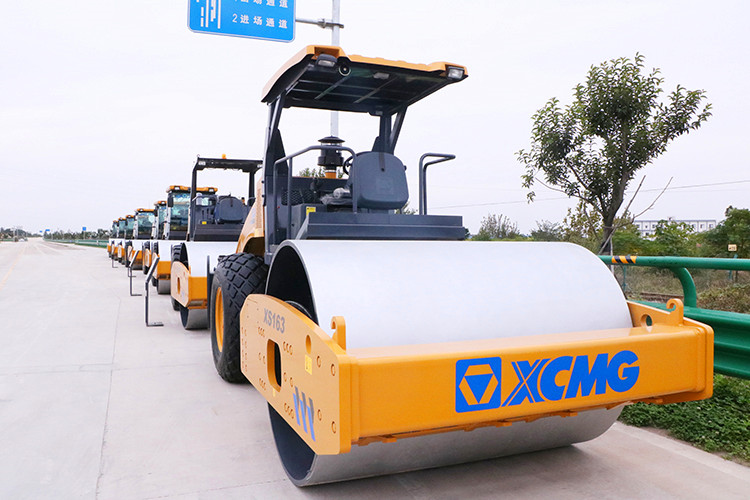

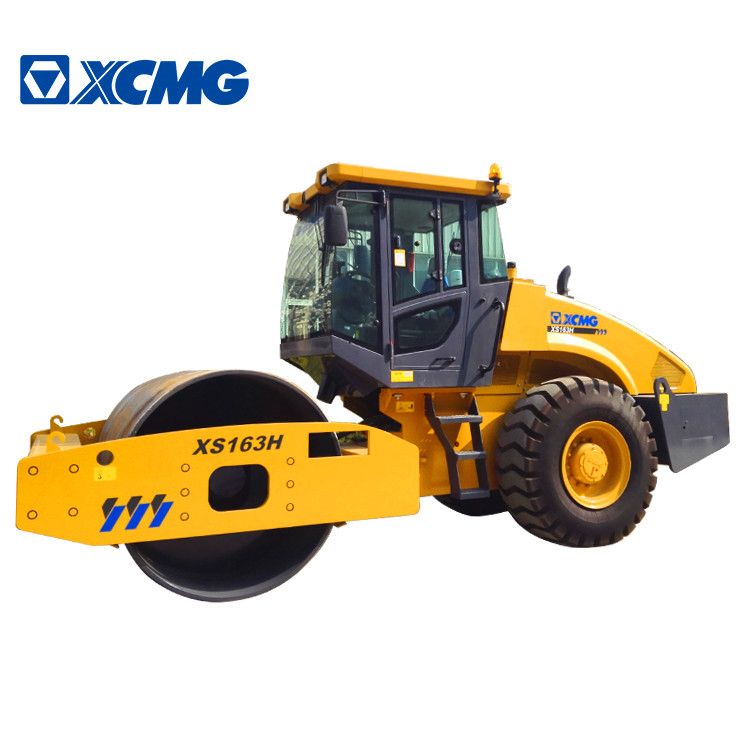

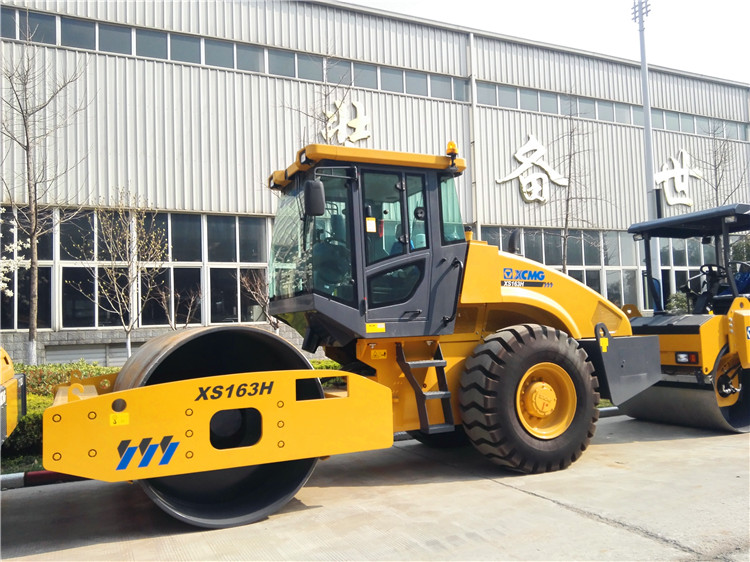

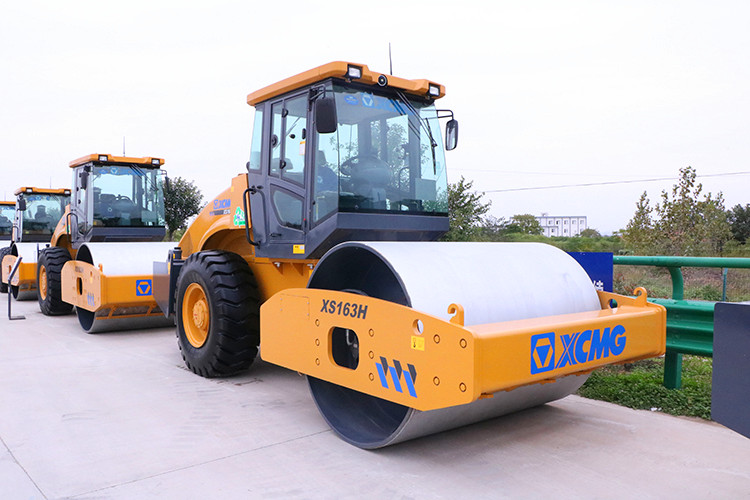

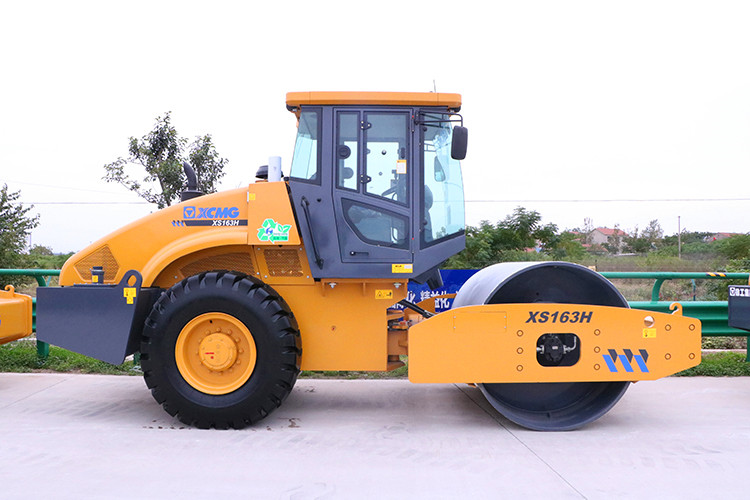

XCMG Official 16 ton single drum road rollers XS163H China hydraulic compactor machine price
.jpg)
Summary
- Weight:16000kg
- Dimension(L*W*H):6150*2300*3200mm
- Power(W):110kW
- Model Number:XS163H
- Brand Name:XCMG
- Place of Origin:China
- Grade Ability:30%
- Travel Speed:0-7.3km/h
- Type:Single Drum Roller
- Certification:CE/ISO9001
Specifications
- Weight:16000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official 16 ton single drum road rollers XS163H China hydraulic compactor machine.
XS163H has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc. and it is also suitable to the compaction of concrete and stabillized soil base materials in various large projects, with the maximum working depth up to 1.0m and above. Thus, it is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.
Performance Characteristics:
* Use the H-series, water cooling, four-cylinder four-stroke, direct injection turbo charged and air-air intercooling low-speed diesel engine manufactured by Shanghai. This kind of diesel engine has a large power reserve and has the function of energy saving and noise reduction.
* Rear drum hydraulic drive, adopt closed hydraulic drive system composed of variable displacement piston pump and piston motor to ensure better drive performance and gradeability.
* One gear infinitely variable speeds to ensure optimized working speed under different working conditions.
* Dual frequency and dual amplitude, meeting the requirements of different working conditions.
* Optimized vibration drum structure and vibration parameters to guarantee smoother compaction surface and higher compaction efficiency.
* Providing service, parking and emergency function and ensures driving safety.
|
Item |
Unit |
Parameter |
|
|
Work weight |
kg |
16000 |
|
|
Drive wheel distribution weight |
kg |
8000 |
|
|
Vibratory drum distribution weight |
kg |
8000 |
|
|
Static line load |
N/cm |
362 |
|
|
Vibration frequency |
Hz |
28/33 |
|
|
Theoretical amplitude |
mm |
1.8/0.9 |
|
|
Exciting force |
kN |
290/200 |
|
|
Speed range |
km/h |
0~7.3 |
|
|
Wheelbase |
mm |
3040 |
|
|
Compaction width |
mm |
2130 |
|
|
Theoretical climbing ability |
% |
30 |
|
|
Minimum turning radius |
mm |
6800 |
|
|
Vibratory drum diameter |
mm |
1523 |
|
|
Minimum ground clearance |
mm |
431 |
|
|
Engine |
model |
|
SC7H150G2 |
|
Rated speed |
r/min |
2200 |
|
|
Rated power |
kW |
110 |
|
|
Dimensions |
mm |
6150×2300×3200 |
|
|
Vibration system pressure |
MPa |
18 |
|
|
Steering system pressure |
MPa |
16 |
|
