XCMG official 20 ton road roller compactor XS203 Chinese heavy duty vibratory road rollers for sale

.jpg)

Summary
- Weight:20000kg
- Dimension(L*W*H):6781*2390*3200mm
- Power(W):140kw
- Model Number:XS203
- Brand Name:XCMG
- Place of Origin:China
- Grade Ability:50%
- Travel Speed:0-10.4 km/h
- Type:Vibratory Roller
- Certification:CE/ISO9001
Specifications
- Weight:200000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

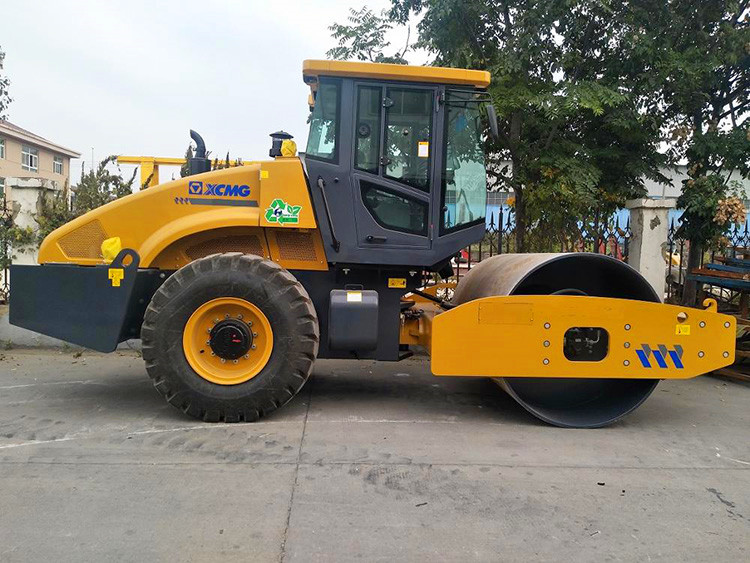

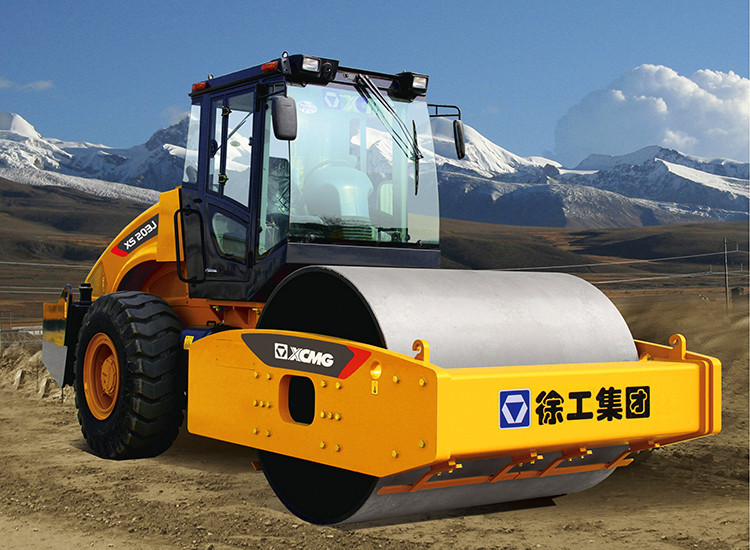

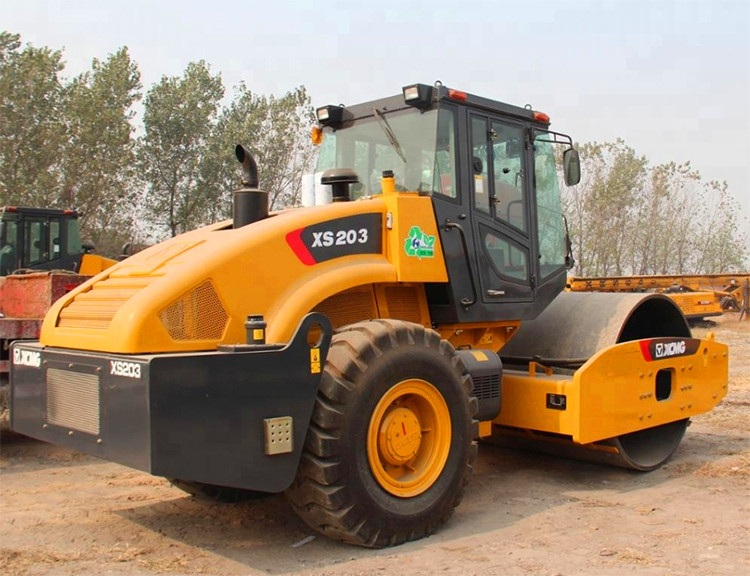

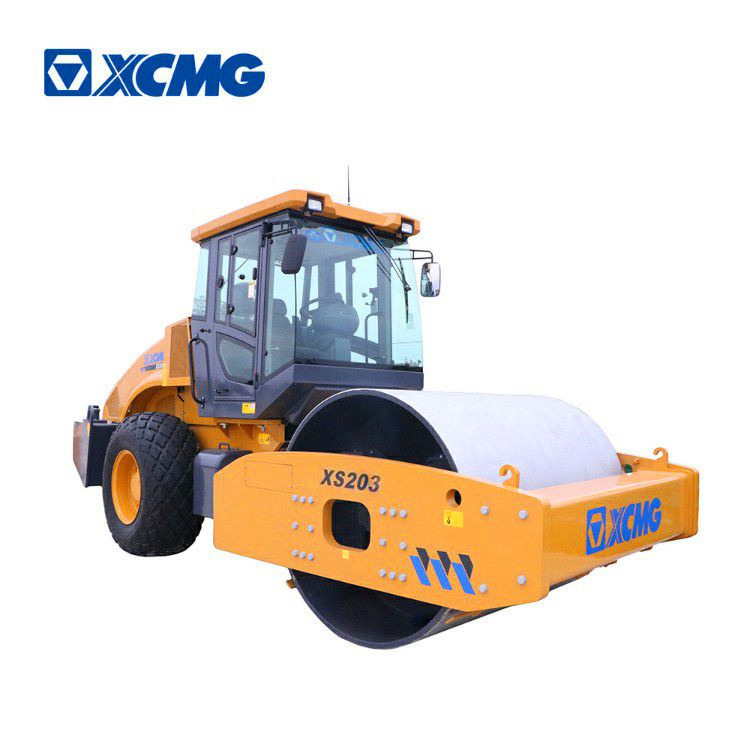

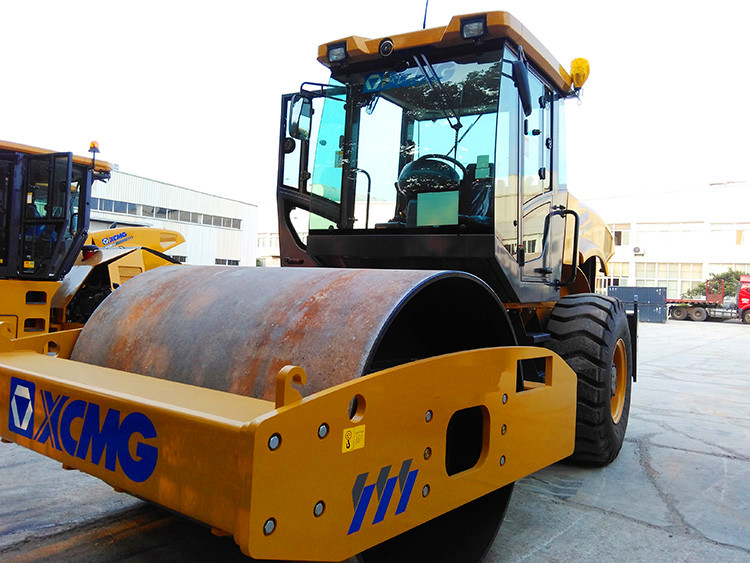

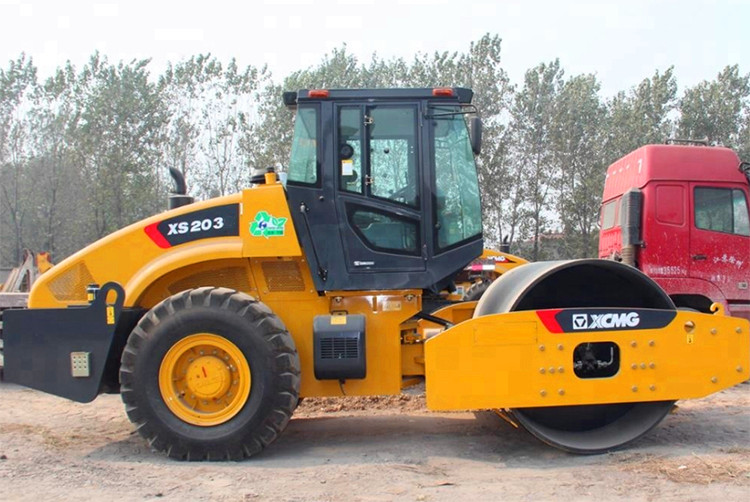

XCMG official 20 ton road roller compactor XS203 Chinese heavy duty vibratory road rollers.
XS203 self-propelled vibratory road roller is a super-heavy-duty vibratory road roller is mainly applicable for compacting the base and sub-base layers and landfill of various materials and is an ideal compacting machine for high-grade roads, airports, ports, dams, and industrial construction sites. This machine adopts high power engine and slip-resistant hydraulic drive system to better meet the construction needs in diversified regions.
Performance Characteristics:
* It's equipped with Shangchai Chinese-Ill water-cooled engine, featuring high power reserve, low fuel consumption, and low noise.
* The four-speed continuously variable transmission guarantees the working at most appropriate speed under diversified working conditions.
* The home-made heavy-duty drive axle is applied, With anti-skid differential.
* Using Imported The variable displacement pump and the variable displacement motor form a closed-type hydraulic system, Dual vibrating frequency and amplitude.
* The hydraulic vibrating system adopts the damping controlled anti-shock technology, which can not only reduce the hydraulic shock of vibrating system and improve the system reliability, but also realize the stable start and stop of vibration, avoid the impact on the compacted material, and promote the compacting uniformity.
* The XCMG's vibrating drum adopts the drum type vibrating chamber structure, with the application of long-life vibrating drum design technology and extreme uniform pressure technology.
Item |
Unit |
XS203 |
Operating mass |
kg |
20000 |
Distributed mass of driving wheel |
kg |
13500 |
Distributed mass of vibration wheel |
kg |
6500 |
Static line load |
N/cm |
621 |
Vibration frequency |
Hz |
28/33 |
Theoretical amplitude |
mm |
1.86/0.93 |
Exciting force |
kN |
370/255 |
Speed range |
km/h |
0-10.4 |
Wheel base |
mm |
3310 |
Compaction width |
mm |
2130 |
Theoretical gradeability |
% |
50 |
Minimum turn radius |
mm |
6500 |
Drum diameter |
mm |
1600 |
Minimum ground clearance |
mm |
466 |
Engine Rated speed |
r/min |
2000 |
Engine Rated power |
kW |
140 |
Overall dimension (length*width*height) |
mm |
6781*2390*3200 |
