Zoomlion 100m Drilling Depth Second Hand Hydraulic Rotary Drilling Rig ZR360L Hot Sale, MACHMALL

Used Equipment > Used Engineering & Construction Machinery > Used Rotary Drilling Rig

Zoomlion 100m Drilling Depth Second Hand Hydraulic Rotary Drilling Rig ZR360L Hot Sale

FOB Price: $230000.000

View All >

Model： ZR360L

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

Zoomlion 100m Drilling Depth Second Hand Hydraulic Rotary Drilling Rig ZR360L Hot Sale

Quantity:

- + /Unit

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

I agree to the 《Privacy Policy》

ZR360L

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Certification

Model Number

Brand Name

Place of Origin

Span

Max. Lifting Height

Max. Lifting Load

Rated Lifting Moment

Rated Loading Capacity

Application

Model Number

Brand Name

Place of Origin

Machine Weight

Maximum Digging Depth

Maximum Digging Height

Bucket capacity

Operating Weight

Max Digging Radius

Rated Speed

Certification

Used Equipment

ZR360L

Zoomlion

ZR360L

Zoomlion

108000 Kg

100m

108000 Kg

+ Add a Product

Summary

Model Number:ZR360L
Brand Name:Zoomlion
Model Number:ZR360L
Brand Name:Zoomlion
Place of Origin:-
Machine Weight:108000 Kg
Maximum Digging Depth:100m
Maximum Digging Height:100m
Bucket capacity:-
Operating Weight:108000 Kg
Max Digging Radius:-
Rated Speed:-
Certification:-

Specifications

Weight:108000.000kg
Condition:Used
Moving Type:Other
Year:2022

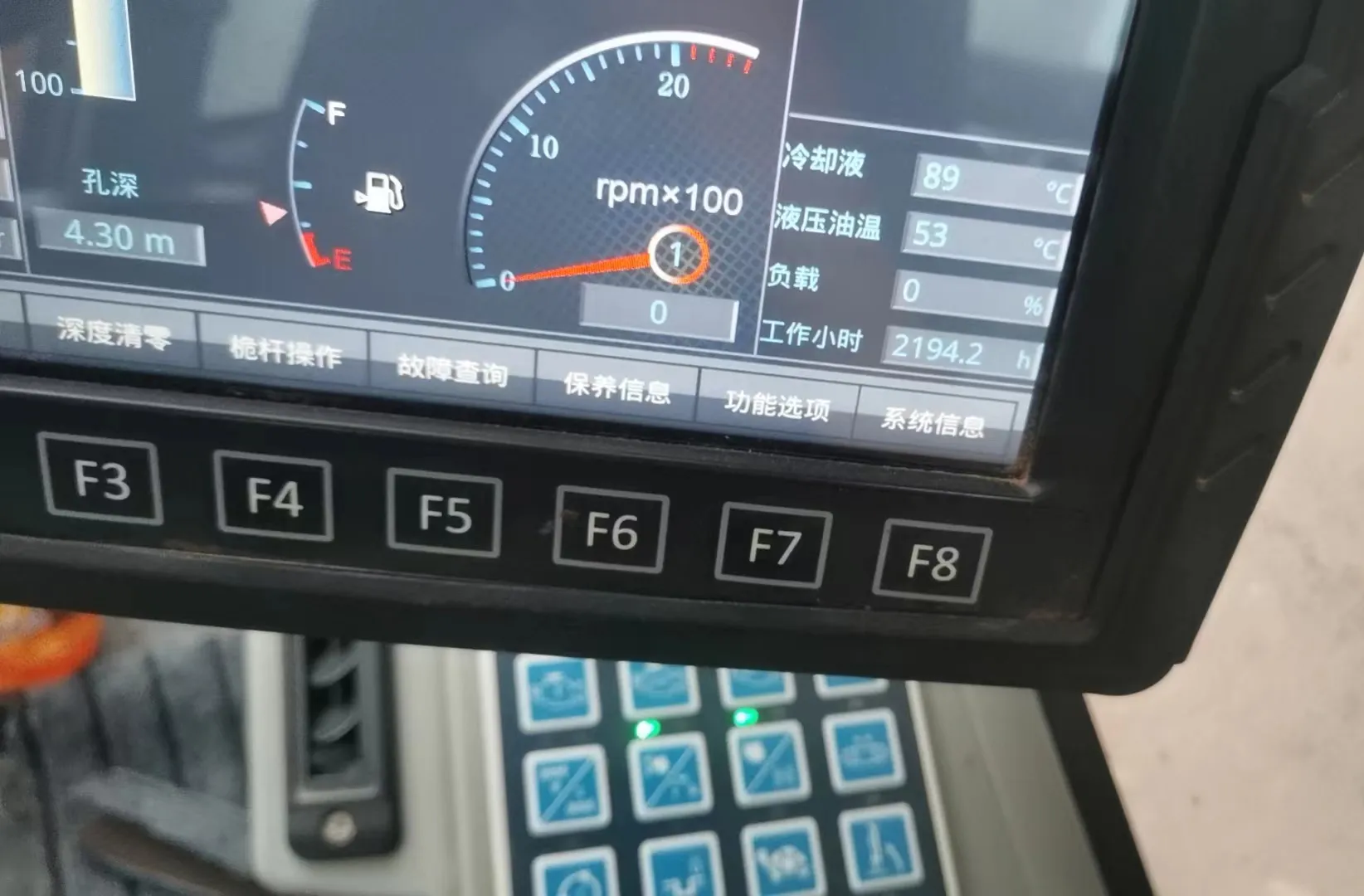

Working Hours:2194.2
Drilling Diameter:2500mm(98.43in)
Rated power/speed:298/(2200r/min)kW

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Delivery Port:Any Port In China

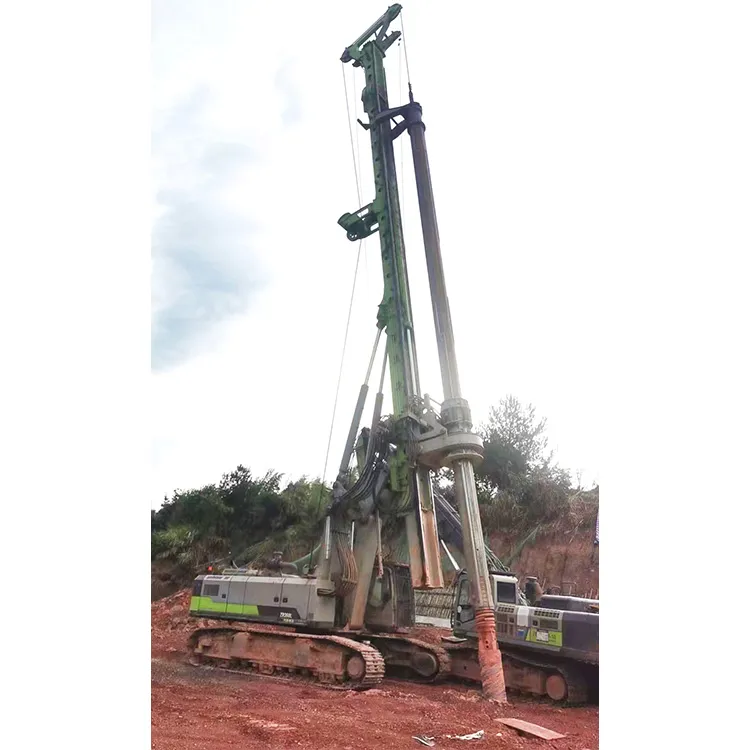

Zoomlion 100m Drilling Depth Second Hand Hydraulic Rotary Drilling Rig ZR360L Hot Sale

(1) Mast folding, the whole machine height is 3580mm;

(2) The anchor frame can be folded with one button, and the mast support does not need to be removed, making the transfer convenient and quick;

(3) The large mast cross-section, double boom quadrilateral variable amplitude mechanism, large diameter slewing bearing, and reinforced chassis make the machine structure more stable and have stronger load-bearing capacity;

(4) The three-power head reducer has large torque, high reserve coefficient, and stronger construction capacity;

(5) The use of large flow main pump, multi-speed power head, and two-speed pressurized oil cylinder has higher construction efficiency;

(6) The central single-row rope main winch and two machines on one drum have stronger lifting capacity; the single-layer wire rope can maximize the service life of the wire rope;

(7) The use of a new generation cab and a new human-machine interaction interface has good visibility and more comfortable operation;

(8) The new generation electronic control platform has 360-degree full-view monitoring and pushes equipment information to the mobile phone APP, which is safe and convenient.

Torque(KN.M)		360
Drilling Diameter(mm)		2500
Drilling Depth(m)	inter-locking	58/65
	Friction	88/100
Drilling Speed(r/min)		6~28
Engine Model		Imported QSM11
Rated Power(kw)		298
Rated Engine Speed(r/min)		1900
Max.Crowd Force(kN)		300
Max.Crowd Cylinder Pull(kN)		360
Line Pull(main winch)(kN)		340
Line Speed(main winch)(m/min)		72
Line Pull(aux.winch)(kN)		90
Line Speed(aux.winch)(m/min)		70
Operating Mass(t)		108
Traction Force(kN)		560
Rope diameter(Main winch)(mm)		36
Rope diameter(auxiliary winch)(mm)		22
