XCMG microtunneling machine 500mm hydraulic pipe jacking machine for sale
Summary
- Certification:CE/ISO
- Weight:2850kg
- Dimension(L*W*H):2260*1585*1070mm
- Model Number:XDN500
- Brand Name:XCMG
- Place of Origin:Xuzhou, China
Specifications
- weight:2850.000kg
- Condition:New
- Moving Type:Other
- Outer diameter× length:Φ690*3200mm
- Jacking system Motor power:15kw
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

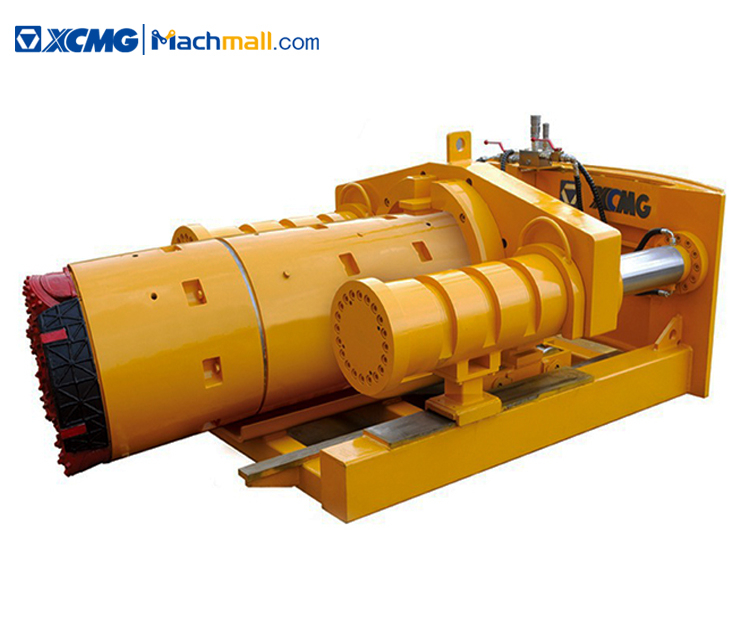

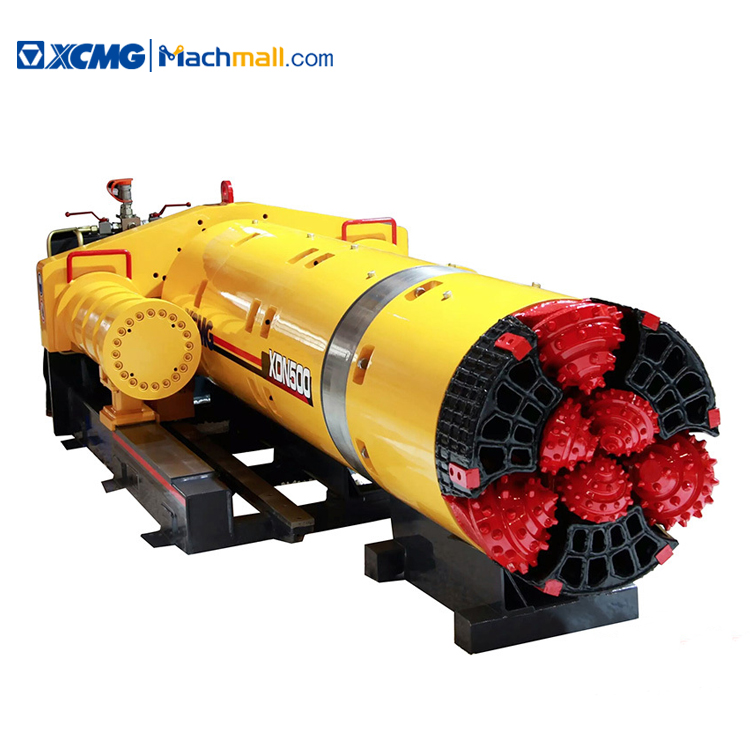

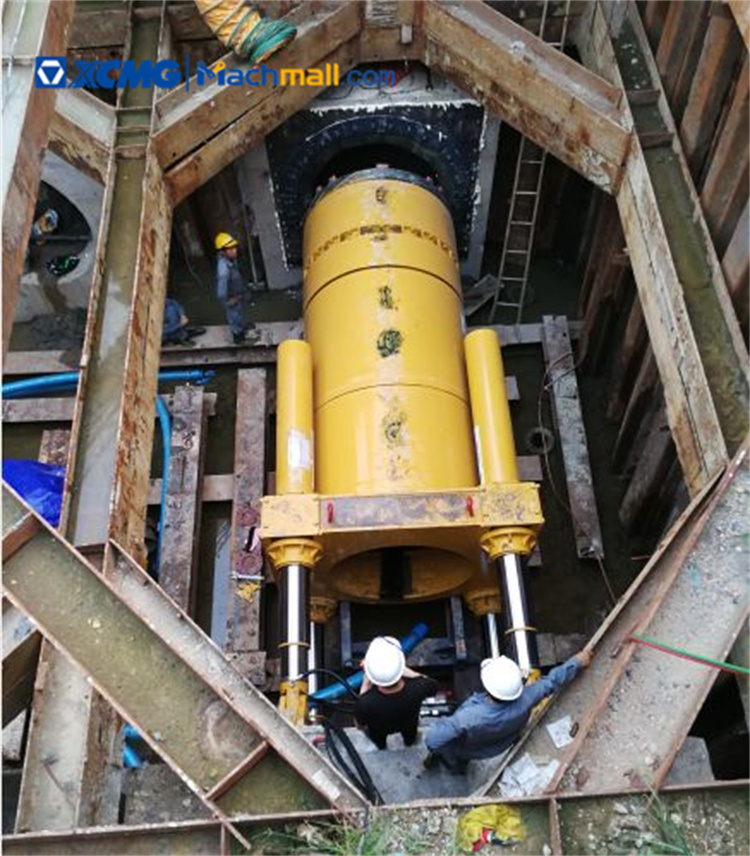

XCMG microtunneling machine 500mm hydraulic pipe jacking machine.
1.Small space：The design of lightweight compact disassembled structure make occupation smaller which can greatly reduce the impact on road traffic.
2.Visual remote control：When jacking operation, operator in the operating room can be real-time monitoring of the whole construction process and accurately master the exact cutting speed, travel path and work conditions, etc., realize visualization of remote control.

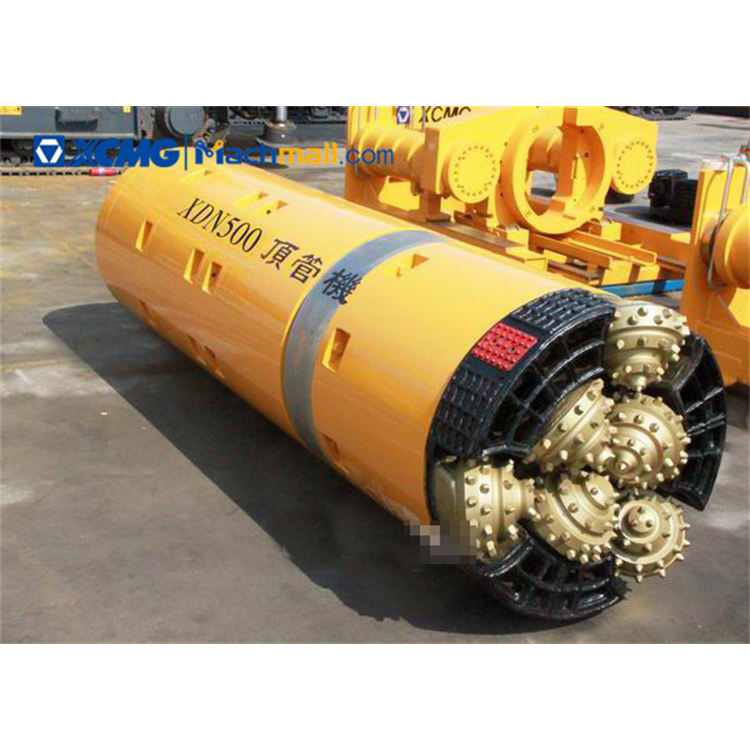

3.Rock breaking ability：The pipe jacking machine can break rock hardness up to 300MPa with conical butterfly hob.
4.Eccentric cone crusher：The special design of large eccentric cone crusher can raise the working efficiency with secondary crushing.
5.Infinite speed：According to the conditions, the operator can control the speed of jacking cylinders and the flow of slurry by adjusting the frequency converter,which makes great adaptability and safety.
|
Description |
|
Unit |
Parameter value |
|
Pipe diameter |
ID |
mm |
Φ500 |
|
OD |
|
Φ670 |
|
|
Outer diameter*length |
|
mm |
Φ690*3200 |
|
Rotation system |
Motor power |
kW |
37 |
|
Torque |
kN.m |
22 |
|
|
Revolution |
r/min |
14 |
|
|
Roll correction system |
Force per cylinder |
kN |
150 |
|
Cylinder number |
EA |
3 |
|
|
Steering angle |
。 |
3 |
|
|
slurry line diameter |
|
mm |
Φ75 |
|
Weight |
|
kg |
3500 |
|
Jacking system Motor power |
|
kW |
15 |
|
Jacking cylinders |
Thrust |
kN |
1000 |
|
Number |
EA |
2 |
|
|
Stroke |
mm |
760*2 |
|
|
Launch shaft dimensions |
|
mm |
Φ2800 |
|
Reception shaft dimensions |
|
mm |
Φ1900 |
|
Charge pump Motor power |
|
kW |
5.5 |
|
Discharge pump Motor power |
|
kW |
11 |
|
Injection pump Motor power |
|
kW |
4 |
