XCMG Official 500mm Pipe Jacking Machine XDN500 Tunnel Boring Machine price list

View All >

Model： XDN500

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG Official 500mm Pipe Jacking Machine XDN500 Tunnel Boring Machine price list

Quantity:

- + /Unit

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

I agree to the 《Privacy Policy》

XDN500

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Certification

Weight

Dimension(L*W*H)

Model Number

Brand Name

Place of Origin

Engineering & Construction Machinery

XDN500

CE/ISO

3500kg

690*3200mm

XDN500

XCMG

Jiangsu,China

+ Add a Product

Summary

Certification:CE/ISO
Weight:3500kg
Dimension(L*W*H):690*3200mm
Model Number:XDN500
Brand Name:XCMG
Place of Origin:Jiangsu,China

Specifications

Weight:3500.000kg
Condition:New
Moving Type:Other

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

XCMG Official 500mm Pipe Jacking Machine XDN500 Tunnel Boring Machine price list

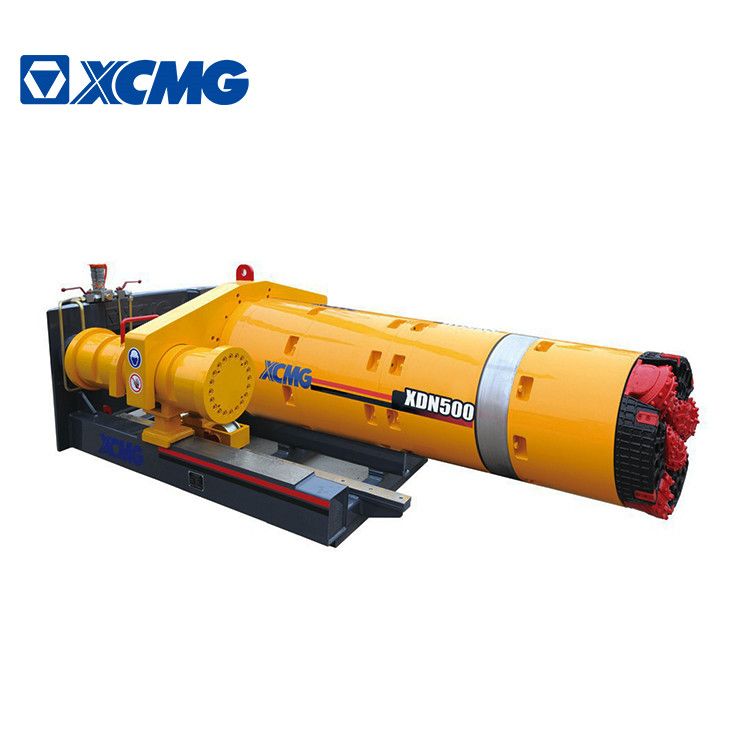

XCMG Pipe Jacking Machinery XDN500.

1. High reliability: Hydraulic overload protection system is reliable and safer, and the water proof is good.

2. Great geology adaptability: Revolution can be adjusted without grade and different cutting wheels are designed for different ground conditions. So, it makes great adaptability.

3. High rock breaking efficiency: The special design of large eccentric cone crusher can raise the working efficiency with secondary crushing which also makes rock pieces easier to discharge.

4. Good construction operability: Jacking speed and slurry flow can be continuously adjusted that makes it easier to achieve.

XCMG Official 500mm Pipe Jacking Machine XDN500 Tunnel Boring Machine price list

Description		Unit	Parameter value
Pipe diameter	ID	mm	Φ500
Pipe diameter	OD	mm	Φ670
Outer diameter× length		mm	Φ690×3200
Rotation system	Motor power	kW	37
	Torque	kN.m	22
	Revolution	r/min	14
Roll correction system	Force per cylinder	kN	150
	Cylinder number	EA	3
	Steering angle	°	3
slurry line diameter		mm	Φ75
Weight		kg	3500
Jacking system Motor power		kW	15
Jacking cylinders	Thrust	kN	1000
	Number	EA	2
	Stroke	mm	760×2
Launch shaft dimensions		mm	Φ2800
Reception shaft dimensions		mm	Φ1900
Charge pump Motor power		kW	5.5
Discharge pump Motor power		kW	11
Injection pump Motor power		kW	4
