XCMG 600mm Hard Rock Pipe Jacking Tunnel Boring Micro Tunneling Machine XDN600
Summary
- Certification:CE/ISO9001
- Weight:4100.000kg
- Dimension(L*W*H):770×3200mm
- Model Number:XDN600
- Brand Name:XCMG
- Place of Origin:China
Specifications
- Weight:1000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

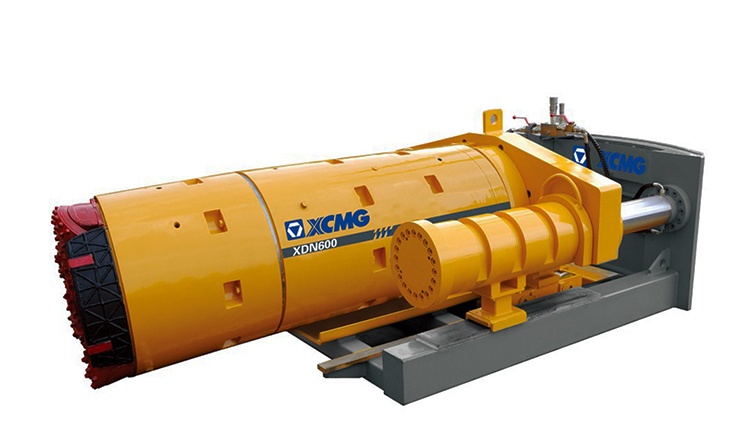

XCMG 600mm Hard Rock Pipe Jacking Tunnel Boring Micro Tunneling Machine XDN600.
1.High reliability:
Hydraulic overload protection system is reliable and safer,and the water proof is good.
2.Great geology adaptability:
Revolution can be adjusted without grade and different cutting wheels are designed for different ground conditions.So it makes great adaptability.
3.High rock breaking efficiency:
The special design of large eccentric cone crusher can raise the working efficiency with secondary crushing which also makes rock pieces easier to discharge.
4.Good construction operability:
Jacking speed and slurry flow can be continuously adjusted that makes it easier to achieve a balance of jacking speed and delivery of slurry flow.
|
Description |
Unit |
Parameter value |
|
|
Pipe diameter |
ID |
mm |
Φ600 |
|
OD |
Φ750 |
||
|
Outer diameter× length |
mm |
Φ770×3200 |
|
|
Rotation system |
Motor power |
kW |
37 |
|
Torque |
kN.m |
34 |
|
|
Revolution |
r/min |
12 |
|
|
Roll correction system |
Force per cylinder |
kN |
217 |
|
Cylinder number |
EA |
3 |
|
|
Steering angle |
° |
3 |
|
|
slurry line diameter |
mm |
Φ75 |
|
|
Weight |
kg |
4100 |
|
|
Jacking system Motor power |
kW |
15 |
|
|
Jacking cylinders |
Thrust |
kN |
1000 |
|
Number |
EA |
2 |
|
|
Stroke |
mm |
760×2 |
|
|
Launch shaft dimensions |
mm |
Φ2900 |
|
|
Reception shaft dimensions |
mm |
Φ1900 |
|
|
Charge pump Motor power |
kW |
5.5 |
|
|
Discharge pumpMotor power |
kW |
11 |
|
|
Injection pump Motor power |
kW |
4 |
|
