Summary
  • Certification:CE/ISO9001
  • Dimension(L*W*H):8968×4400×22180mm
  • Weight:58000kg
  • Power(W):194kw
  • Model Number:XR180D
  • Brand Name:XCMG
  • Place of Origin:Jiangsu,China
  • Power Type:Diesel
  • Type:Rotary Drilling Rig
Details
  • weight:58000.000kg
  • Condition:New
  • Moving Type:Crawler
  • Max. Drilling Depth:46m
  • Rotary table slewing angle:360°

Chinese XCMG portable crawler rotary drilling rig machine XR180D for sale

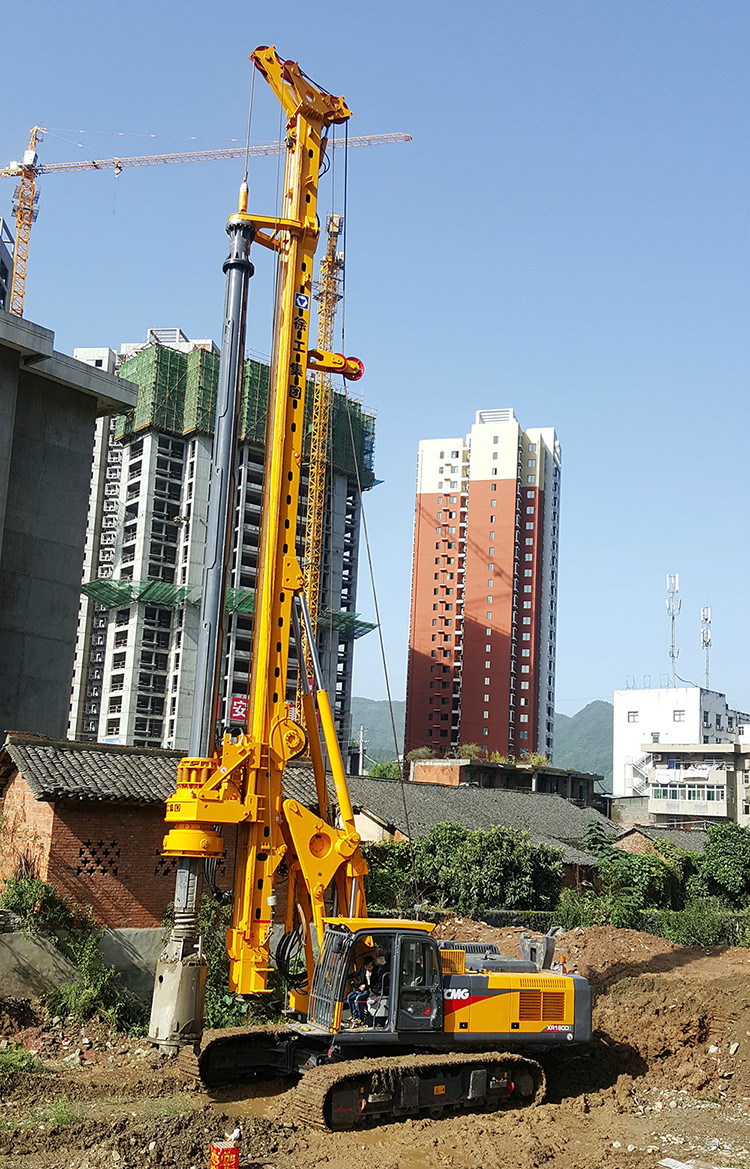

Chinese XCMG portable crawler rotary drilling rig machine XR180D.

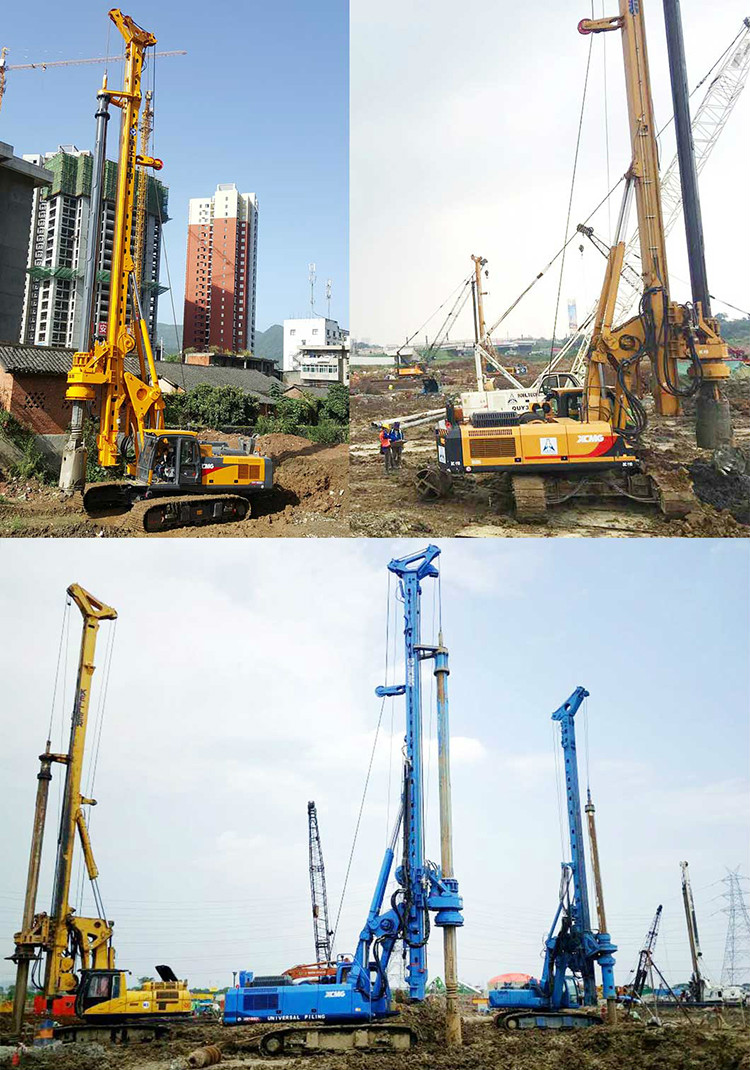

XCMG XR180D Rotary Drilling Rig widely used in boring operation of bored concrete pile in foundation engineering of highway, railways, bridges, ports, docks and high-rise buildings.



Performance Characteristics:

1. Hydraulic telescopic (TDP series) track chassis and large diameter of slewing bearing which is special for rotary drilling rig is used, and meets super strong stability and convenience of transportation.

2. The original imported electronic-controlled turbocharged engine is used with strong power, and the emission meets North America Tier 4 Final, Europe stage emission standard.

3. German hydraulic system is used, and for which the positive flow control, load sensing control and power limit control is used to make the hydraulic system more energy efficient.

4. Single row of rope and master winch is used to solve effectively the wear issue of steel wire rope and increase effectively the service life of steel wire rope.

Chinese XCMG portable crawler rotary drilling rig machine XR180D for sale

Description

Unit

Parameter value

Max. drilling diameter

mm

1800

Max. drilling depth

m

standard configuration

(5-section friction Kelly bar)46

optional configuration

(4-section-locking Kelly bar)

Allowable luffing scope (from center of drill rod to slewing center)

mm

3560~3900

Drilling rig dimension in working condition (L*W*H)

mm

8350*4200*20480

Drilling rig dimension in transport condition (L*W*H)

mm

14255*3000*3455

Weight of overall unit (standard configuration, excluding drilling tool)

t

58

Engine

Model

CUMMINS QSB6.7

Rated power/speed

kW

194/(2200r/min)

Max. working pressure of hydraulic system

MPa

35

Rotary drive

Max. torque

kN.m

180

Rotational speed

r/min

7~27

Crowd cylinder

Max. Pushing force

kN

160

Max. Pulling force

kN

180

Max. stroke

mm

5000

Main winch

Max. pulling force

kN

180

Max. single-rope speed

m/min

65

Diameter of the steel wire rope

mm

180

Auxiliary winch

Max. pulling force

kN

50

Max. single-rope speed

m/min

70

Diameter of the steel wire rope

mm

16

Rotary table slewing angle

°

360

Traveling

Max. traveling speed of the overall unit

km/h

1.5

Max. climbable gradient of the overall unit

%

35

Crawler

Width of crawler plate

mm

700

External width of crawler (min.-max.)

mm

2960~4200

Center distance between two longitudinal wheels of crawler

mm

4270

Average ground pressure

kPa

94
