- Model Number: XCA2000
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Span: 360
- Max. Lifting Height:155m
- Max. Lifting Load:2000T
- Rated Lifting Moment:11000kN.M
- Rated Loading Capacity:2000T
- Application: Construction works
- Certification:CE ISO9001
- Moving Type:Other

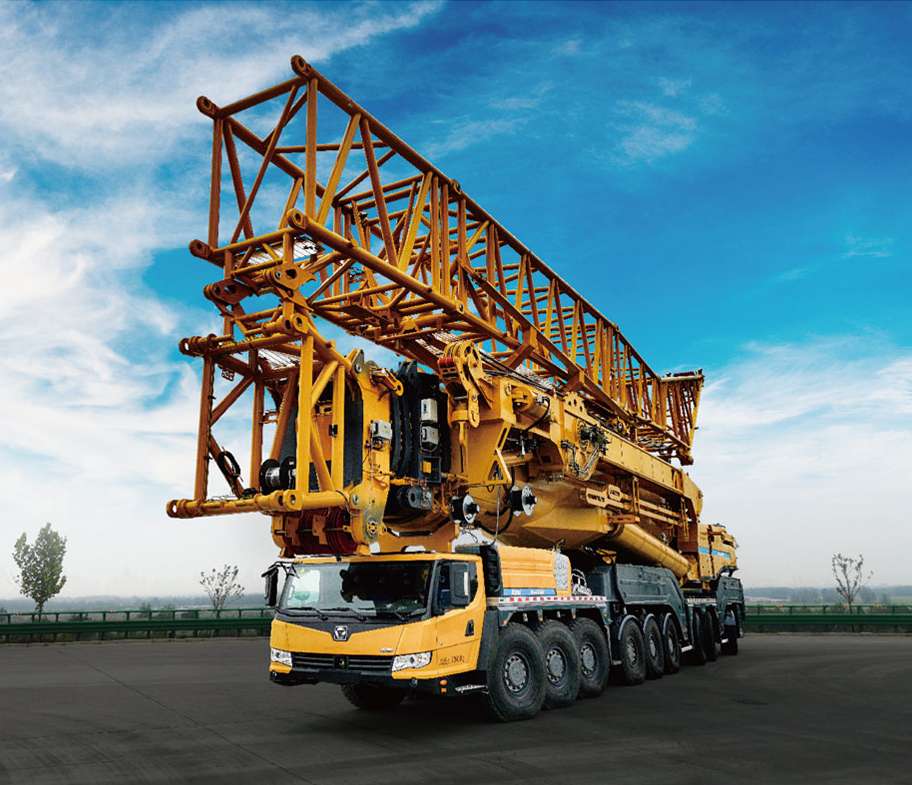

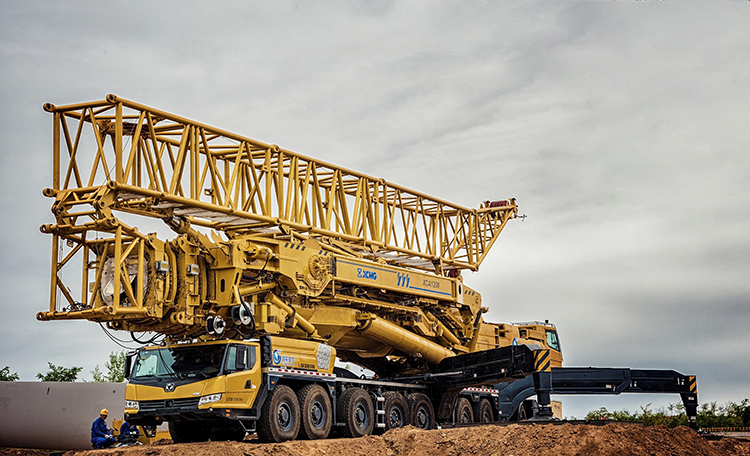

XCMG 2000 ton all terrain mobile crane XCA2000
A thousand-tonnage class all terrain crane with best load charts and efficiency in its class. It is mounted on a nine-axle all terrain chassis with eight axles driven, and grade ability under heavy load up to 30%, leading in the world; seven-section boom and specialized self-folding wind power jib facilitate to install wind turbines with hub height up to 140 m.
(1)Excellent capacity for lifting wind turbines
Nine-axle 1600 t all terrain crane with best-in-class load charts. With various combined specialized wind power jib, lifting wind turbines with hub of 140 m is available, performance leading in the industry.
(2)Outstanding heavy-load job site transfer capacity
Global unique dual-power eight-axle drive system, six-axle mechanical drive+two-axle high speed ratio hydraulic drive, contributes to heavy-load job site transfer, i.e. with boom, super lifting device, wind power jib and outriggers attached and grade ability of 30%;
Innovative heavy-duty single-transverse arm independent suspension system, min. ground clearance of 500 mm and 30% improvement in pass ability facilitate to handle the terrains in mountainous areas during job site transfer.
(3)High efficiency moving from a wind turbine location to another one in a job site
With no need to remove the innovative self-folding wind power jib, only 2 hours are required for stowing the crane, high transfer efficiency and cost saving.
(4)Multi-mode brake, safe and comfortable
Innovative multi-mode braking system automatically estimates machine's driving status while driving on roads, or during short-distance job site transfer or heavy-load job site transfer, comfort and safety while braking under various conditions are optimized.
Note: due to the continuous modification and improvement of products, we reserve the rights to modify product model, parameters and configuration without any notice.
|Max. rated lifting capacity||t||2000|
|Max. travel speed||km/h||80|
|Grade ability under heavy load||%||30|
|Engine rated power||kW /(r/min)||480/1800|
