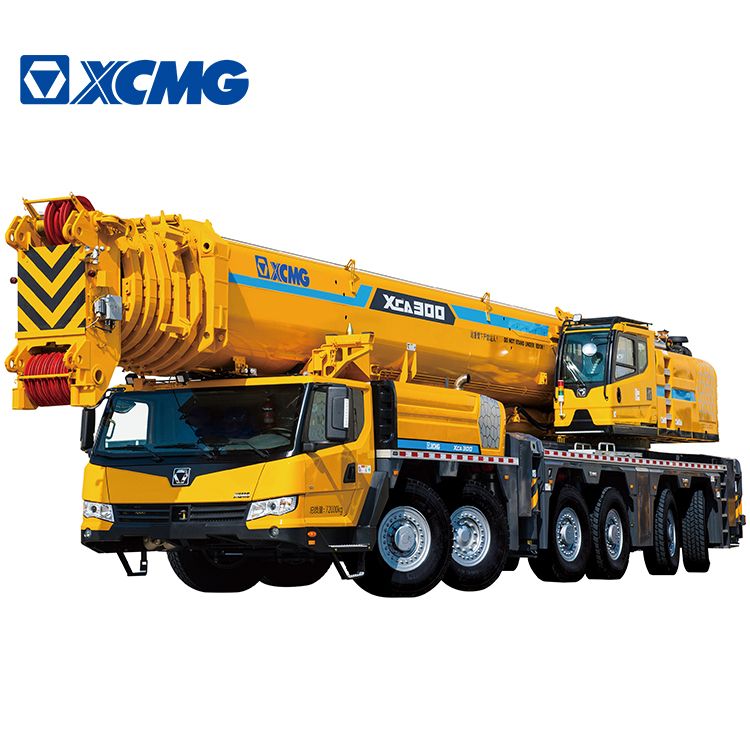

XCMG Official 300 Ton hydraulic truck crane XCA300 New All Terrain Crane Price
.jpg)
Summary
- Model Number:XCA300
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Max. Lifting Height:112m
- Rated Lifting Moment:9270kN.M
- Rated Loading Capacity:300t
- Application:Construction
- Certification:CE/ISO9001
Specifications
- Weight:300000.000kg
- Condition:New
- Moving Type:Wheel
- Color:Red
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official 300 Ton hydraulic truck crane XCA300 New All Terrain Crane Price.
The lifting capacity takes the lead in the industry with strong power, the 6-axle all terrain crane with high intelligent level.
Performance Characteristics:
1. Super lifting performance * 7-section boom of 80m, fixed jib of 6-36m, fixed-length tensioning technology of super lifting device brings 5-8% higher performance. * Automatic rope ordering technology contributes to smooth and orderly wire rope.
2. Work condition of wind power * Boom 69.8m+ Super lifting device + luffing jib of 8m for wind power maintenance, the working radius is 16m, the rated lifting load is 33.2t.
* Less product auxiliaries for 1.5MW wind power maintenance operation and more efficient and convenient assembly, contributing to much lower cost.
3. New highly efficient energy-saving hydraulic system * Closed hydraulic system for lifting and slewing system, equipped with large-displacement pump, lifting speed with heavy load highly. * Min. stable lifting speed (at drum) 2.5m/min, and min. stable slewing speed 0.1°/s.
4. Power and traveling performance * Rated power 442.6kw, max. torque 2800N.m. * Max. travel speed 80Km/h, Max. grade ability 57%.
|
Item |
Unit |
Parameter |
|
Overall Length |
(mm) |
17674 |
|
Overall Width |
(mm) |
3000 |
|
Overall Height |
(mm) |
4000 |
|
Wheel Base |
(mm) |
1650+3100+1650+2440+1650 |
|
Wheel Tread |
(mm) |
2590/2540 |
|
Travelling Weight |
(kg) |
72000 |
|
Axle Load |
(kg) |
12000*6 |
|
Engine Model(Upper) |
OM906LA.E3A/1 |
|
|
Rated Power |
(kw/(r/min)) |
205/2200 |
|
Rated Torque |
(N.m/(r/min)) |
1100/1200-1600 |
|
Engine Model(Chassis) |
OM502LA.E3B/2 |
|
|
Rated Power |
(kw/(r/min)) |
442/1800 |
|
Rated Torque |
(N.m/(r/min)) |
2800/1300 |
|
Max.Travelling Speed |
(km/h) |
80 |
|
Min.Stable Travelling Speed |
(km/h) |
2 |
|
Min Diameter of Turning Circle |
(m) |
23 |
|
Max Gradeability |
(%) |
57 |
|
Minimum Ground Clearance |
(mm) |
280 |
|
Approach Angle |
(°) |
16 |
|
Departure Angle |
(°) |
15 |
|
Braking Length |
(m) |
≤10 |
|
Fuel Consumption Per Hundred Kilometers |
(L) |
89.2 |
|
Max.Rated Lifting Capacity |
(t) |
300 |
|
Min.Rated Range |
(m) |
3 |
|
Max. Lifting Moment of Basic Boom |
(kN·m) |
9270 |
|
Turning Radius of Platform Tail |
(mm) |
3690 |
|
Lengthways |
(m) |
8.93 |
|
Transverse |
(m) |
8.53 |
|
Basic Boom |
(m) |
16.3 |
|
Full-extend boom |
(m) |
79.1 |
|
Full-extend boom + jib |
(m) |
112 |
|
Basic Boom |
(m) |
15 |
|
Full-extend boom |
(m) |
80 |
|
Full-extend boom + jib |
(m) |
112.8 |
|
Max Rotating Speed |
(r/min) |
1.2 |
|
Main Hoisting Mechanism |
(m/min) |
127 |
|
Auxiliary Hoisting Mechanism |
(m/min) |
127 |
