- Summary

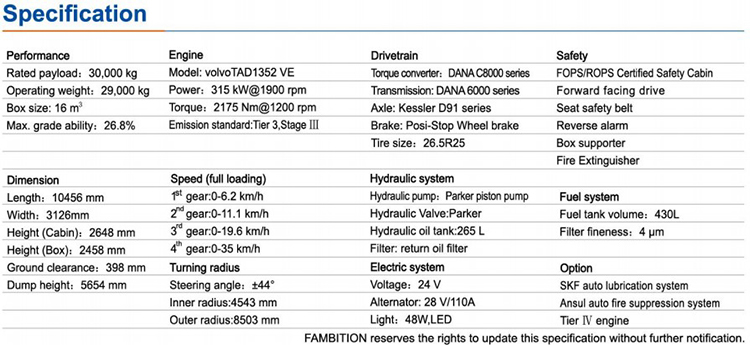

- Specifications
- Certification:FOPS/ROPS
- Dimension(L*W*H):10456*3126*2648mm
- Weight:29000kg
- Power(W):315000W
- Model Number:FT30
- Place of Origin:Qingdao, Shandong
- Brand Name:Fambition
- weight:29000.000kg
- Condition:New
- Moving Type:Wheel
- Rated payload:30000kg
- Box size:16 m³
- Dump height:5654mm
- Steering radius:±44°
- Tire size:26.5R25
- Hydraulic oil tank volume:265L
- Fuel tank volume:430L

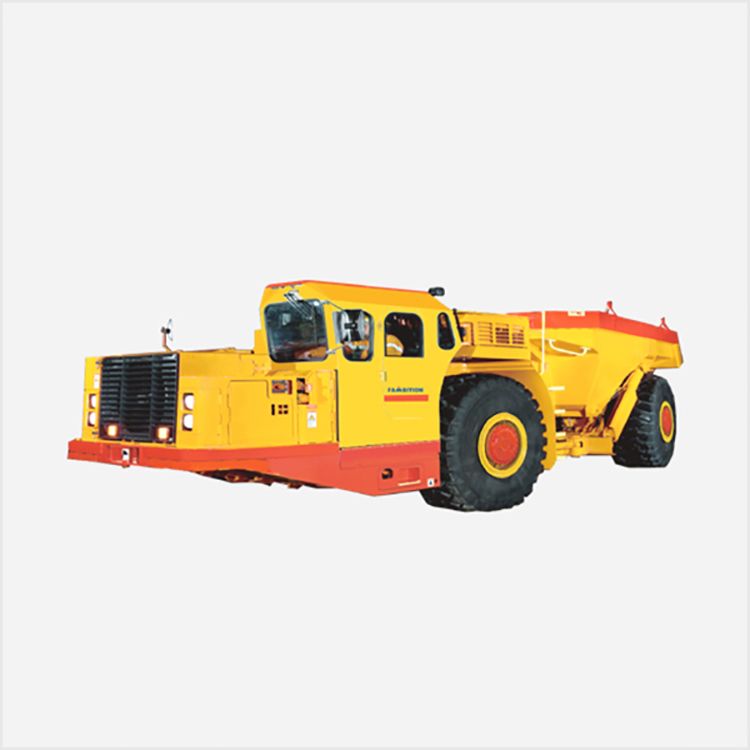

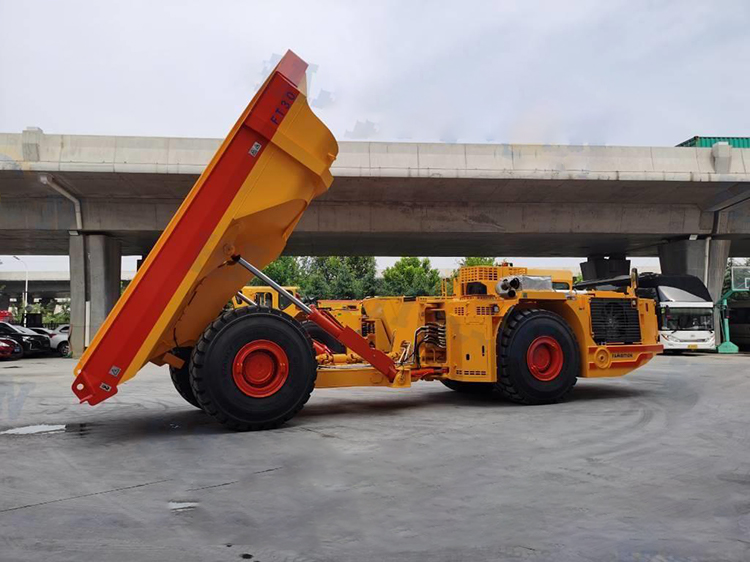

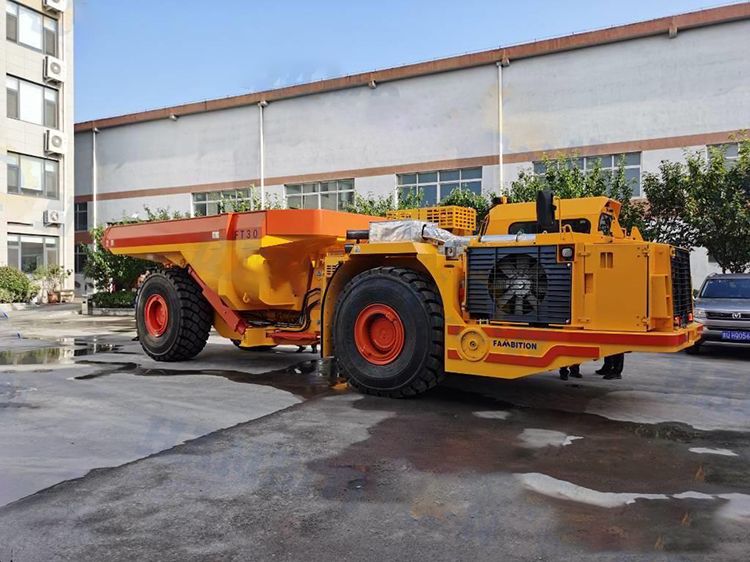

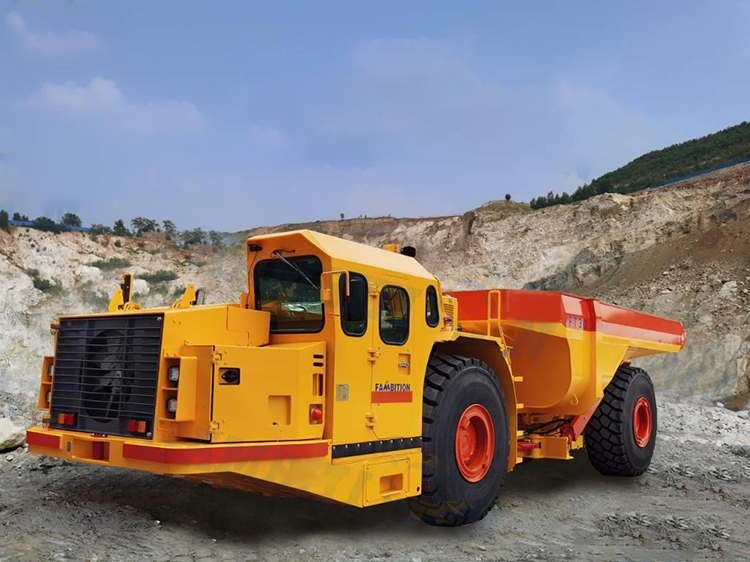

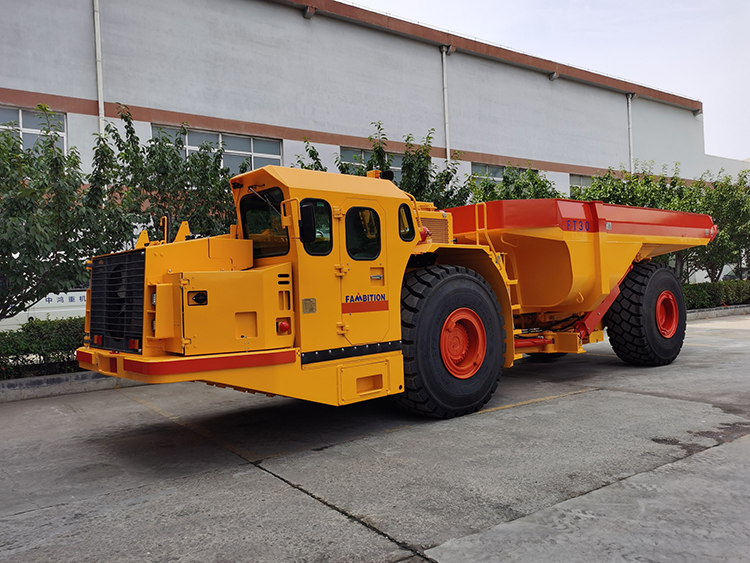

China brand FT30 underground truck 30 ton truck.
China brand FT30 underground truck 30 ton truck has a rated payload of 30 ton, standard with fully enclosed forward-facing cabin with AC, which has wide visual field and comfort for driver.
The whole vehicle control system adopts CAN-bus communication technology,Fambition Electronic Technician, electro-hydraulic proportional pilot control and variable hydraulic system.
The control system is designed on the basis of CAN-bus. The on-board display screen can display the operating parameters of the scraper in real time, and has the functions of fault warning and self-diagnosis.The truck adopts Volvo water-cooled EFI engine to meet Euro IIIB emission standards, and other parts adopt internationally well-known brands to meet the tough conditions and climbing requirements for underground. Lincoln auto lubrication system and Ansul auto fire suppression system are optional.
