Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):7270*2280*3345mm
- Weight: 6905kg
- Power(W): 140000W
- Model Number:G04K
- Brand Name:XCMG
- Place of Origin: Jiangsu, China
Specifications
- Weight:6905.000kg
- Condition:New
- Moving Type:Wheel
- Drum length: 3595mm
- Max. diameter of drum:1980mm
- Port:Any China port
- Packaging Details:Comply with export packaging requirements

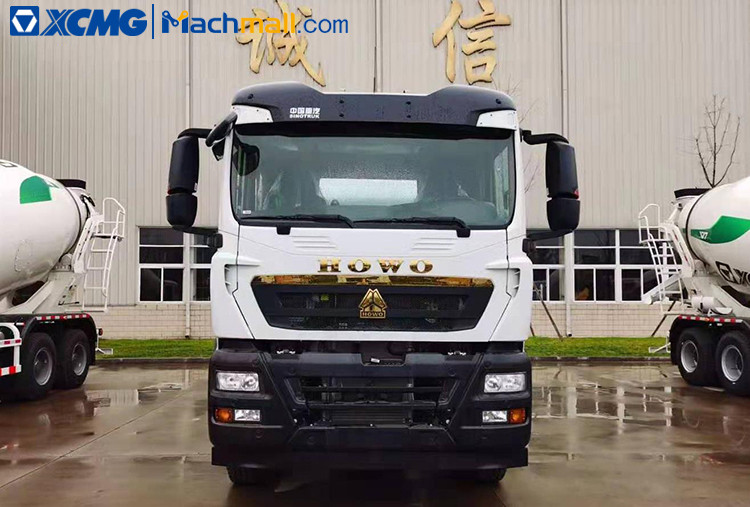

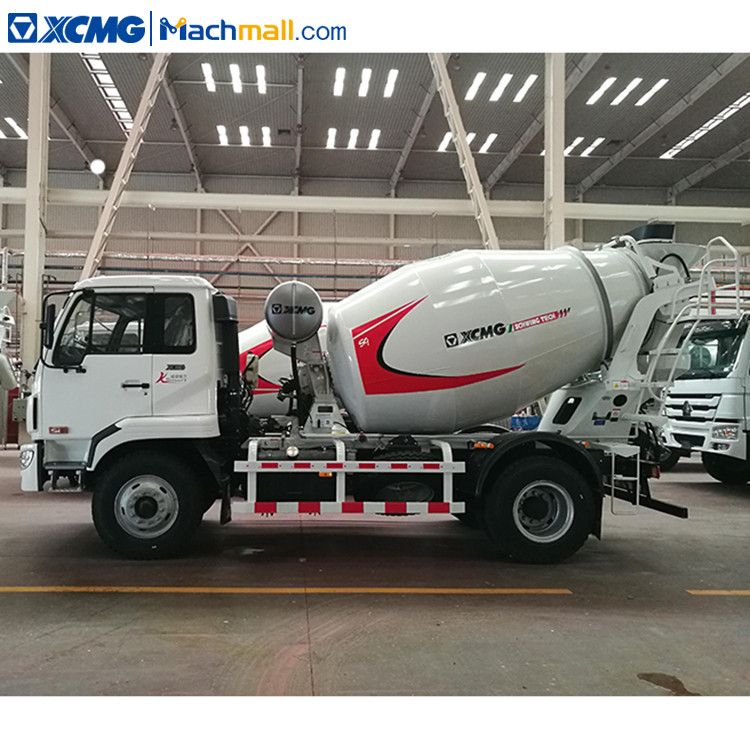

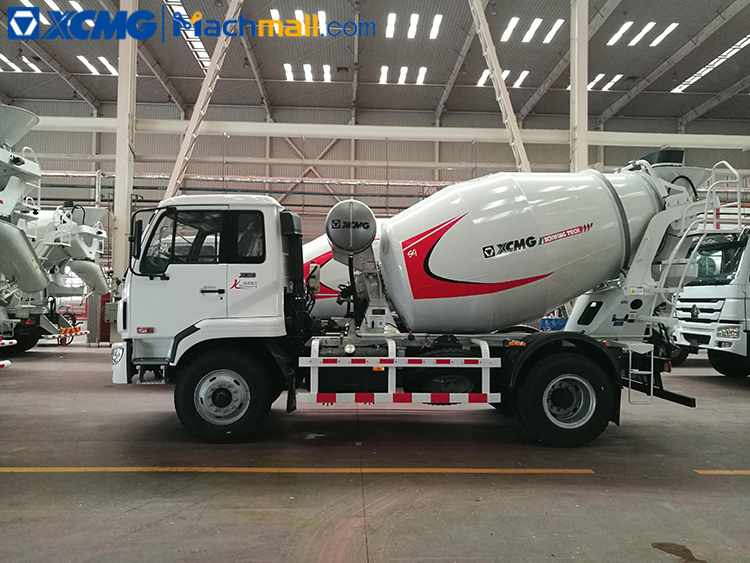

China XCMG 4 cubic meters concrete mixer truck with HOWO chassis G04K.
* On the basis of in-depth and integrative research on theindustry, the XCMG new generation 4 cubic meters concrete mixer truck with HOWO chassis are system optimized by taking the integrated modularization design totruly realize the integrated innovation.
* Particular mixing technology with continuous trace,original double log spiral technology with changeable lift angle and changeable screw pitch and optimized auxiliary blades and pressure-reducing hole design can make the operation path of the spiral in perfect state and can ensure the best concrete flowing trend in mixing drum and more uniformly discharging.It can effectively solve the blocking problems in concrete pumps caused bynonuniform concrete.
* Optimized HOWO chassis matches with upper parts and such parts as front base andaccessory beam, rear base and tilted beam, rear base and accessory beam adopt integration design.
* Hydraulic pump, motor and speed reducer of such world-famous brands as ZF, Rexroth, Bonfiglioli, PMP, TOP are adopted to make the power more sufficient, system more steady and reliable and service life longer.
|
Catagory |
Item |
Unit |
Parameter |
|
Overall Parameter
|
Model |
|
G04K |
|
Curb weight |
kg |
6905 |
|
|
Max.total weight |
kg |
16000 |
|
|
Outline dimension |
(L×W×H) mm |
7270×2280×3345 |
|
|
Chassis
|
Chassis brand |
|
XCMG |
|
Chassis model |
|
NXG3160D3AZAX |
|
|
Steering position |
|
LHD |
|
|
Driving type |
|
4×2 |
|
|
Wheel base |
mm |
3800 |
|
|
Tire |
|
10.00R20 |
|
|
Power take-off |
|
Flywheel |
|
|
Engine
|
Model |
|
YC6J190-33 |
|
Max.power |
kW |
140 |
|
|
Displacement |
L |
6.494 |
|
|
Emission standard Euro Ⅲ |
|
Euro Ⅲ |
|
|
Drum system
|
Geometric volume |
m³ |
7.7 |
|
Agitating volume |
m³ |
4 |
|
|
Max.diameter of drum |
mm |
1980 |
|
|
Mixing drum length |
mm |
3595 |
|
|
Slanting angle |
° |
15 |
|
|
Rotating speed |
r/min |
0~14 |
|
|
Feeding speed |
m³/min |
≥ 3 |
|
|
Discharge speed |
m³/min |
≥ 2 |
|
|
Discharge residual rate |
% |
< 0.4 |
|
|
Slump scope |
mm |
50~210 |
