XCMG official new 45 ton reach stacker for containers XCS4531K port machine price
Specifications
- weight:71200.000kg
- Max lifting speed:420/250mm/s
- Max lowering speed:360/360mm/s
- Overall weight:71.2 ton
- Overall length:11340mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

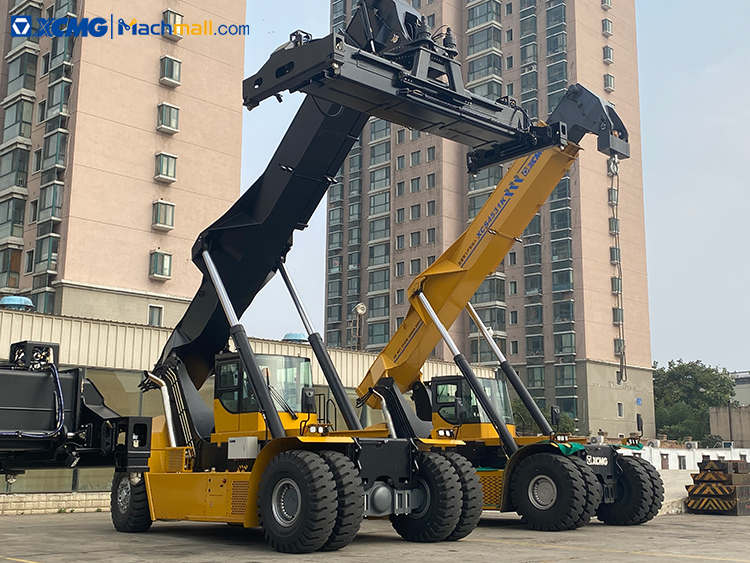

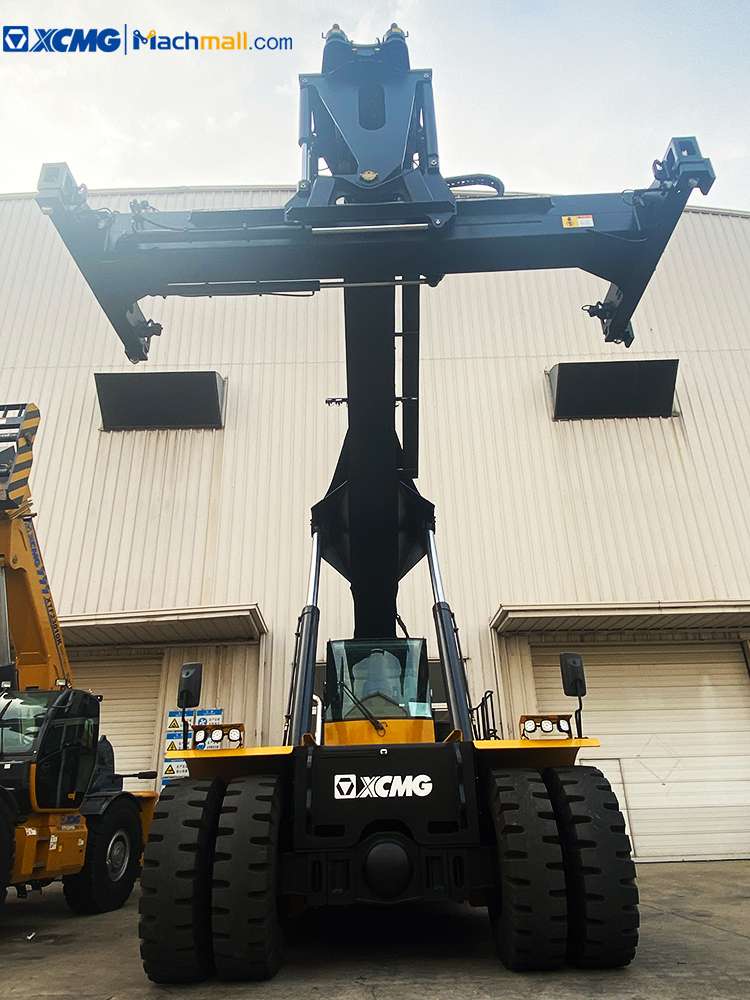

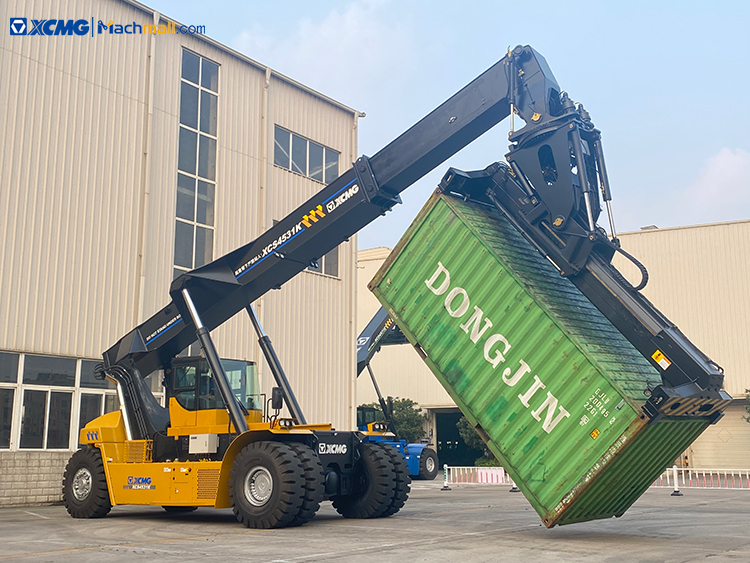

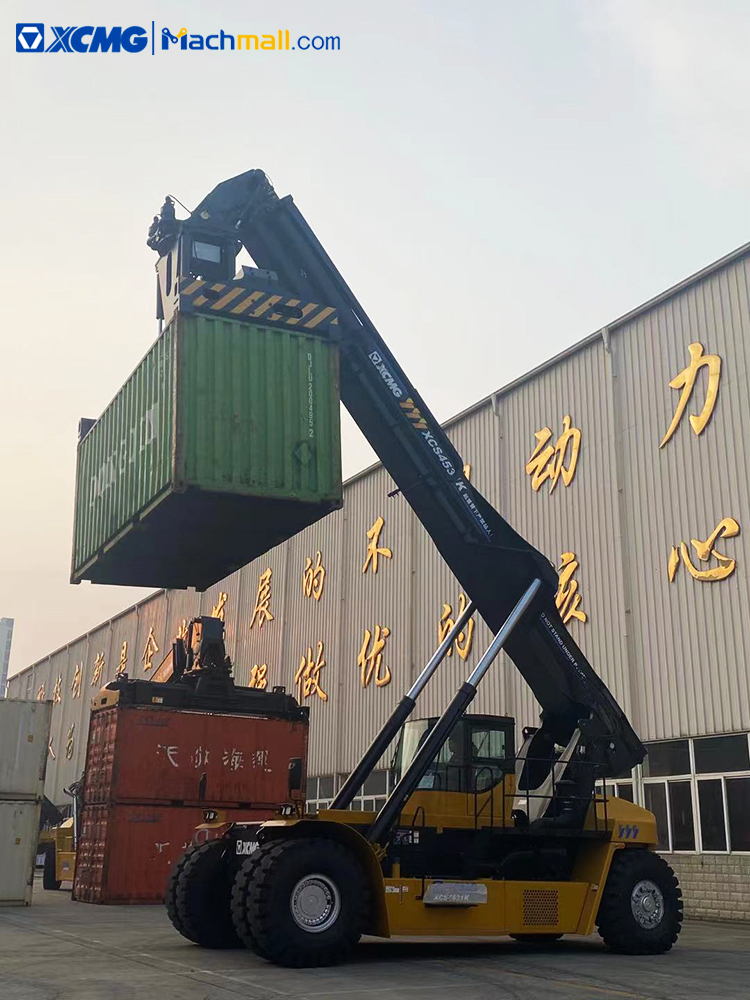

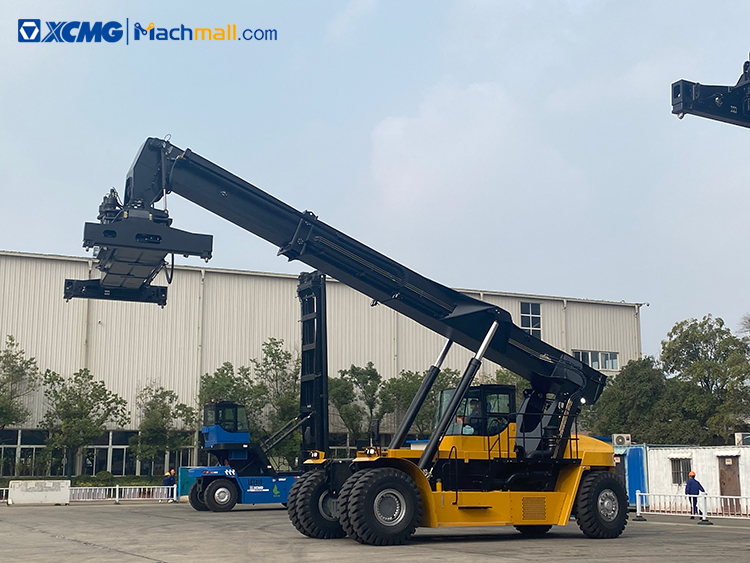

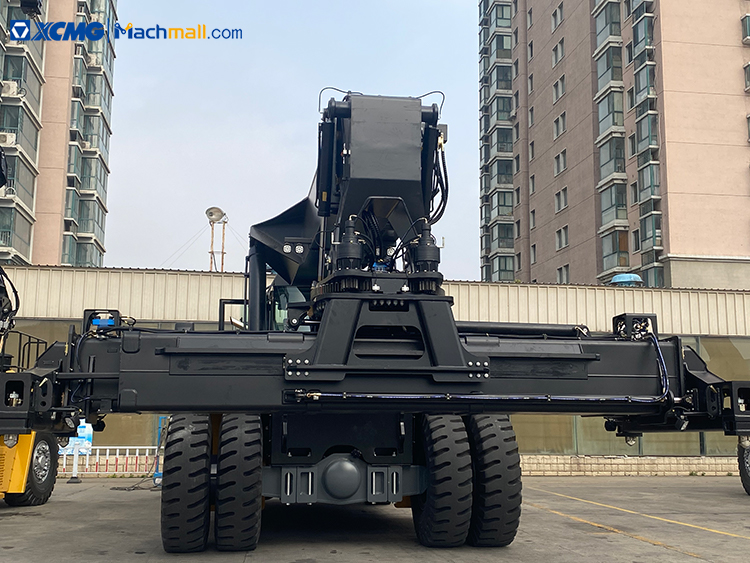

XCMG official new 45 ton reach stacker for containers XCS4531K port machine.
XCMG official new 45 ton reach stacker for containers XCS4531K has a rated load of 45 tons and a maximum lifting height of 15100mm. It is suitable for hoisting port IOS 20ft~40ft standard containers. The whole machine is powered by Volvo engine, Dana gearbox and Parker hydraulic system. XCMG official new 45 ton reach stacker for containers XCS4531K can be equipped with smart brakes, precise weighing, panoramic images, etc. It has the characteristics of good safety, high degree of intelligence, comfortable operation, energy saving and environmental protection, and it meets the requirements of the high-end market.
Highlights:
1.The whole machine adopts pure electric power, does not burn a drop of diesel, and realizes zero emission, no pollution, and is environmentally friendly: full motor drive, quiet operation environment, low noise, and good use environment;
2.Distributed motor direct drive system with high efficiency: both reach stacker and stacker adopt three-motor direct drive scheme, one direct drive driving, one driving main pump is responsible for lifting and energy recovery, and one driving auxiliary pump is responsible for Telescopic, steering and other, three-motor drive can provide customers with the best operating experience;
3.Cancel the multi-way valve, the pump is directly connected to the cylinder, the lifting response is fast, and the action has no delay;
4.When lifting, the double pumps automatically merge, which can significantly increase the lifting speed;
5.Double gun fast charge, then fast step F adopts 300kw national standard double gun DC charging pile, charging current can reach up to 400A, battery full time is 85min;
6.Multiple choices for battery life. The most mature and reliable lithium iron phosphate battery pack in the industry is used to provide the power source for the whole machine: the modular layout design of the battery pack, the battery life is 4-10h to choose from: equipped with a battery replacement method, it can achieve unlimited battery life.
|
Parameter |
|
Unit |
XCS4531K |
|
Boom |
Max.lifting height |
mm |
15100 |
|
|
Inclination angle |
。 |
0-60 |
|
Max lifting speed（Unloaded/loaded） |
|
mm/s |
420/250 |
|
Max lowering speed（Unloaded/loaded） |
|
mm/s |
360/360 |
|
Max travelling speed（Unloaded/loaded） |
|
km/h |
25/21 |
|
Gradeability（Unloaded/loaded） |
|
% |
39/32 |
|
Overall weight |
|
t |
71.2 |
|
Rated capacity |
|
t |
45 |
|
No. of stack |
|
- |
5（9’6”/8’6”） |
|
Overall length |
|
mm |
11340 |
|
Wheel base |
|
mm |
6000 |
|
Overall height |
|
mm |
4670 |
|
Min ground clearance |
|
mm |
350 |
|
Overall width |
|
mm |
6052-12185 |
|
Front track |
|
mm |
3033 |
|
Rear track |
|
mm |
2790 |
|
Min Turing radius |
|
mm |
8000 |
|
20’ container aile width |
|
mm |
11300 |
|
40’ container aile width |
|
mm |
13600 |
