Summary
- Certification:CE/ISO9001
- Dimension(L*W*H): 8240*2500*3470mm
- Weight: 12250 kg
- Power(W):247000W
- Model Number:G06K
- Brand Name:XCMG
- Place of Origin: Jiangsu, China
Specifications
- weight:12250.000kg
- Condition:New
- Moving Type:Wheel
- Charging speed:≥3 m³/min
- Geometric volume:11.6m³
- Engine Capacity: 9.726L
- Steering wheel:Left steering wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

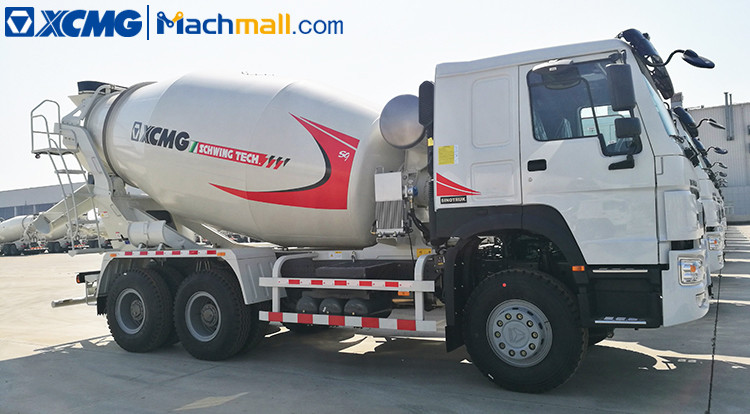

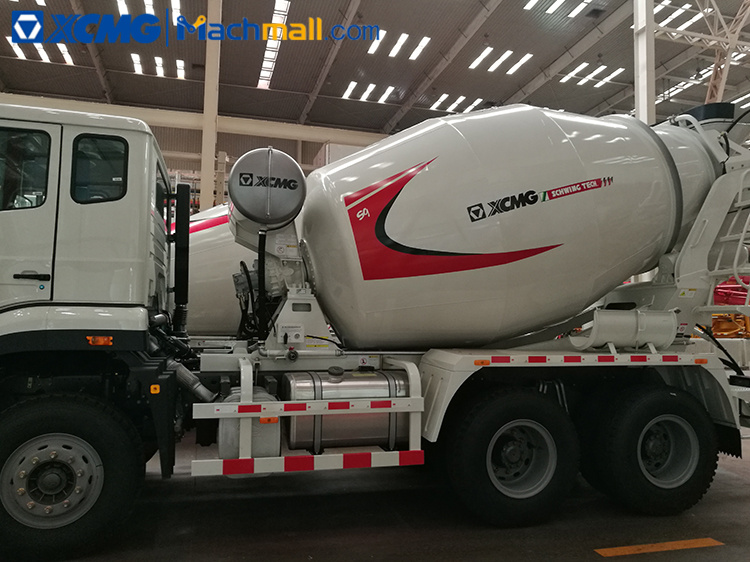

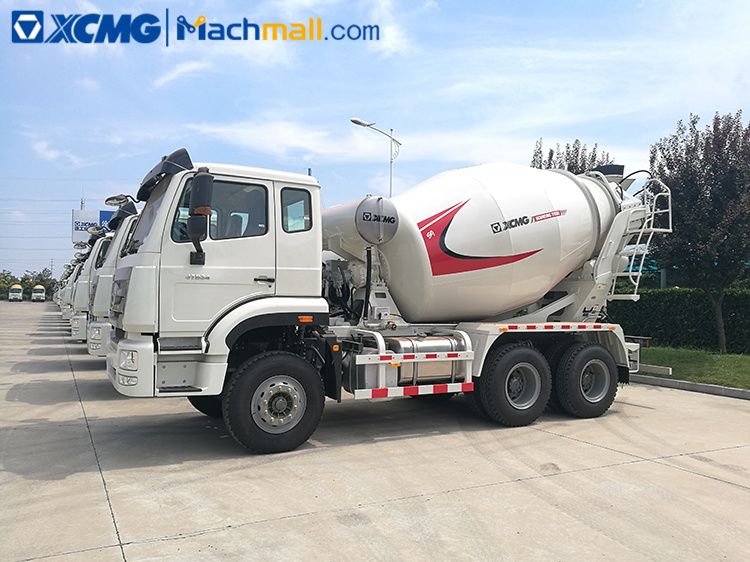

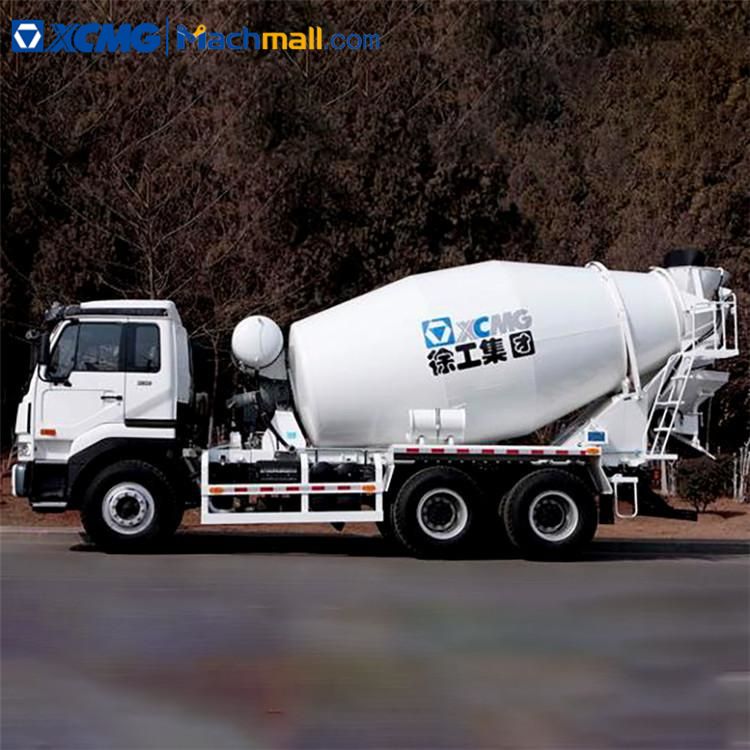

Concrete mixer diesel XCMG 6m3 truck mixer G06K.
Concrete mixer diesel XCMG 6m3 truck mixer G06K adopts no sub-frame structure, the center of gravity is 100mm lower than the ordinary car, and the driving is more stable and safe; the front suspension is equipped with a horizontal stabilizer bar, and the rear suspension adopts a unique main and secondary spring structure, and the anti-rolling ability is strong.
The industry-leading dual power control technology is adopted to carry out the real-time control and adjustment for different drum load, effectively reducing fuel consumption of Concrete mixer diesel XCMG 6m3 truck mixer G06K.
Advantages:
1.efficient mixing technology.
2.application of SCHWING’S advanced manufacturing technology.
3.optimal matching of chassis scheme.
|
Category |
Model |
Unit |
G06K |
|
Performance of mixing drum |
Geometric volume |
m³ |
11.6 |
|
|
Max. diameter of drum |
mm |
2250 |
|
|
Drum length |
mm |
4217 |
|
|
Mounting tilt angle |
° |
15 |
|
|
Rotary speed |
r/min |
0~14 |
|
|
Charging speed |
m³/min |
≥3 |
|
|
Discharging speed |
m³/min |
≥2 |
|
|
Residual ratio of discharging |
% |
<0.7 |
|
|
Range of slump |
cm |
5~21 |
|
Hydraulic system |
Oil pump |
|
World-famous brand |
|
|
Motor |
|
World-famous brand |
|
|
Speed reducer |
|
World-famous brand |
|
|
Hydraulic circuit |
|
Closed type |
|
Water supply |
Volume of water tank |
L |
450 |
|
|
Way of water supply |
|
Air pressure |
|
Overall machine |
Chassis brand |
|
SinoTruck |
|
|
Chassis model |
|
ZZ1255N3246B1 |
|
|
Steering wheel |
|
Left steering wheel |
|
|
Curb mass |
kg |
12250 |
|
|
Driving type |
|
6×4 |
|
|
Wheelbase |
mm |
3225+1350 |
|
|
PTO way |
|
Flywheel PTO |
|
|
Outline dimension (L*W*H) |
mm |
8240*2500*3740 |
|
Engine |
Model |
|
WD615.69 |
|
|
Rated power |
Kw/r/min |
247 |
|
|
Displacement |
L |
9.726 |
|
|
Emission standard |
|
II |
