XCMG Factory G10K Small Truck Concrete Mixer for Sale in Jamaica
Summary
- Dimension(L*W*H):9510x2500x3970mm
- Weight:14600kg
- Model Number:G10K
- Brand Name:XCMG
- Place of Origin:China
- Power Type:Diesel
- Type:Concrete Truck Mixer
- Certification:CE/ISO9001
Specifications
- Weight:14600.000kg
- Condition:New
- Moving Type:Wheel
- Geometric volume:16.8m³
- Max. diameter of drum:2280mm
- Drum length:5596mm
- Mounting tilt angle:13.5°
- Rotary speed:0～14r/min
- Charging speed:≥3m³/min
- Discharging speed:≥2m³/min
- Residual ratio of discharging:＜0.7%
- Range of slump:5～21cm
- Volume of water tank:450L
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

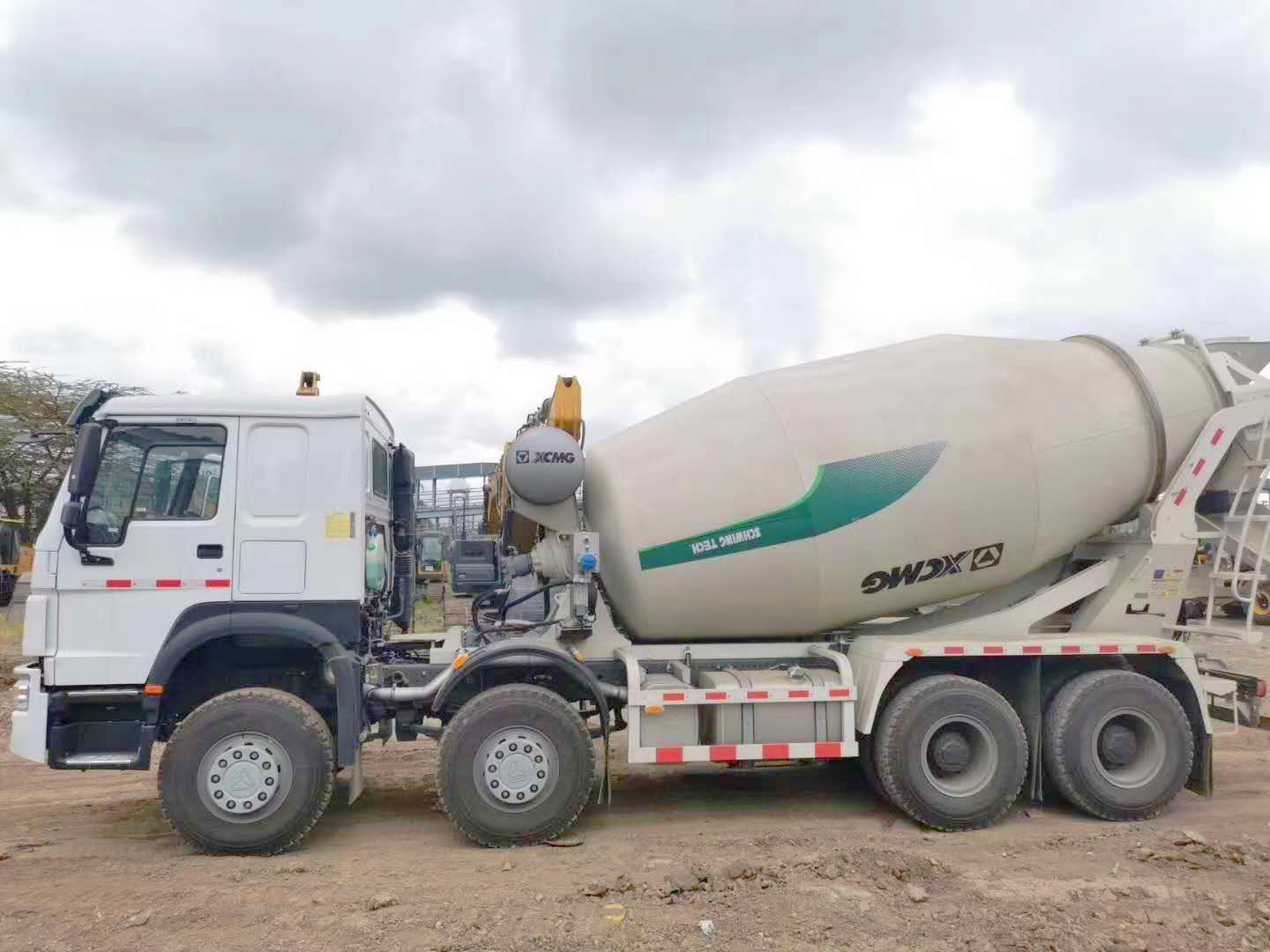

XCMG Factory G10K Small Truck Concrete Mixer.
1,On the basis of in-depth and integrative research on the industry, the XCMG new generation truck mixers are system optimized by taking the integrated modularization design to truly realize the integrated innovation.
2,Particular mixing technology with continuous trace, original double log spiral technology with changeable lift angle and changeable screw pitch and optimized auxiliary blades and pressure-reducing hole design can make the operation path of the spiral in perfect state and can ensure the best concrete flowing trend in mixing drum and more uniformly discharging.
3,Twin-output control, lightweight technology and anti-scattering technology make the vehicle more environmental and more effective.
4,Optimized chassis matches with upper parts and such parts as front base and accessory beam, rear base and tilted beam, rear base and accessory beam adopt integration design. After force bearing research and analysis and long-term application, the best position of the connecting point between tilted beam and rear base are confirmed and thus deformation and break of cross beam can be avoided effectively.
5,Internationally branded hydraulic transmission system: Hydraulic pump, motor and speed reducer of such world-famous brands as ZF, Rexroth, Bonfiglioli, PMP, TOP are adopted to make the power more sufficient, system more steady and reliable and service life longer.
|
Description |
Unit |
Parameter value |
|
|
Performance of mixing drum |
Geometric volume |
m³ |
16.8 |
|
Max. diameter of drum |
mm |
2280 |
|
|
Drum length |
mm |
5596 |
|
|
Mounting tilt angle |
° |
13.5 |
|
|
Rotary speed |
r/min |
0~14 |
|
|
Charging speed |
m³/min |
≥3 |
|
|
Discharging speed |
m³/min |
≥2 |
|
|
Residual ratio of discharging |
% |
<0.7 |
|
|
Range of slump |
㎝ |
5~21 |
|
|
Hydraulic system |
Oil pump |
World-famous brand |
|
|
Motor |
World-famous brand |
||
|
Speed reducer |
World-famous brand |
||
|
Hydraulic circuit |
Closed type |
||
|
Water supply |
Volume of water tank |
L |
450 |
|
Way of water supply |
Air pressure |
||
|
Overall machine |
Chassis brand |
XCMG |
|
|
Chassis model |
NXG3250D5NCX |
||
|
Steering wheel |
Left steering wheel |
||
|
Curb mass |
㎏ |
14600 |
|
|
Driving type |
6×4 |
||
|
Wheelbase |
mm |
3800+1350 |
|
|
PTO way |
Flywheel PTO |
||
|
Outline dimension |
(L×W×H)mm |
9510×2500×3970 |
|
|
Engine |
Model |
WP10.350E53 |
|
|
Rated power |
Kw/r/min |
257 |
|
|
Displacement |
L |
9.726 |
|
|
Emission standard |
Euro V |
||
