Gaodetec GGP400/700/80DPL-D High Pressure Diesel Engine Grouting Injection Plant for Sale
GGP400/700/80DPL-D
Specs & Compare
Details
Specifications
- Weight:1820.000kg
- Grout Station model:GGP400/700/80DPL-D
- Dimensions:2400*2150*1700mm
- Weight:1820kg
- Mixer Capacity:400L
- Agitator Capacity:700L
- Output/Pressure:80L/min@5Mpa
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Description

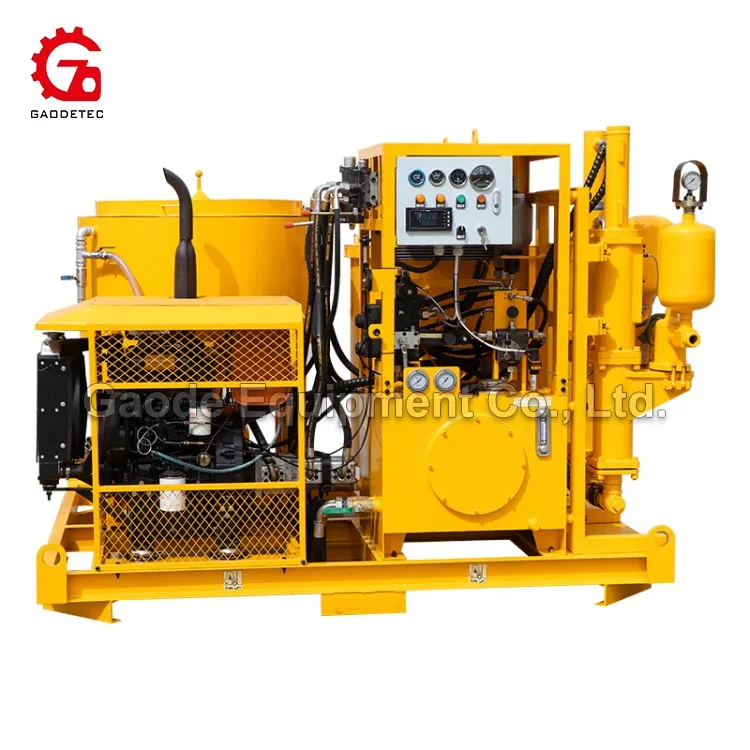

Gaodetec GGP400/700/80DPL-D High Pressure Diesel Engine Grouting Injection Plant is a combination of mixer, agitator and grout pump in one base frame. It is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.
High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. What's more, the double-plunger pump together with the pressure-holding system is used, so that the pump automatically stops and maintains the very little pressure impulse (1-4bar with 50bar grouting pressure) to ensure that the grouting hole is completely filled. The grouting plant is hydraulic drive. Grouting pressure and displacement is adjustable. Compact size and it is easy to operate. It also takes up a small space.
The features and advantages of this machine are as follows：
1. High-speed colloidal grout mixHigh-speed colloidal grout mixer
2. Double plunger pump
3. Vertical type pump with compact size
4. Hydraulic drive (safely releasing pressure when pumping block)
5. Hydraulic system with high temperature warning and protection system
6. Pressure holding system
7. Low flow pressure surge system
8. Air cooler and water cooler (suitable for working in tropical and sub-hot areas)
9. Up to 5mm particle size

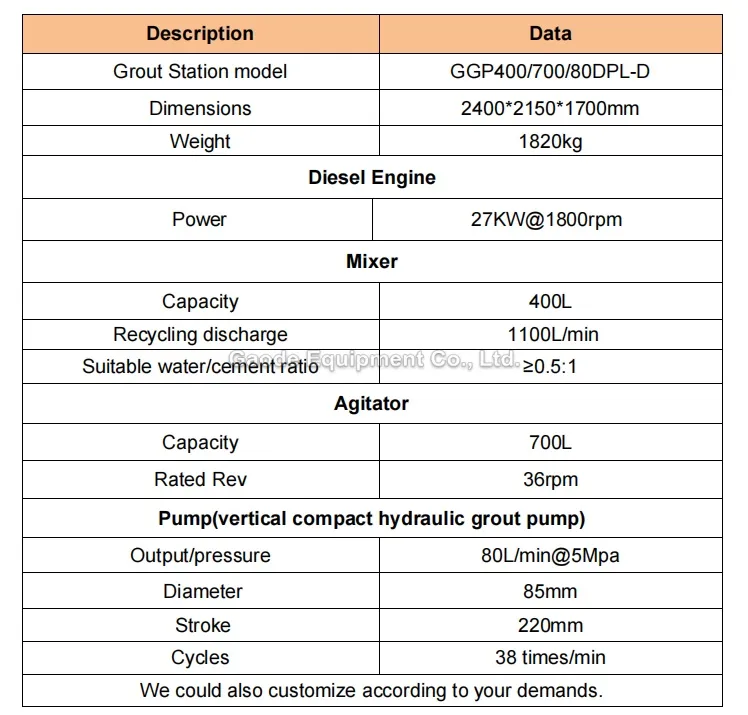

Parameters

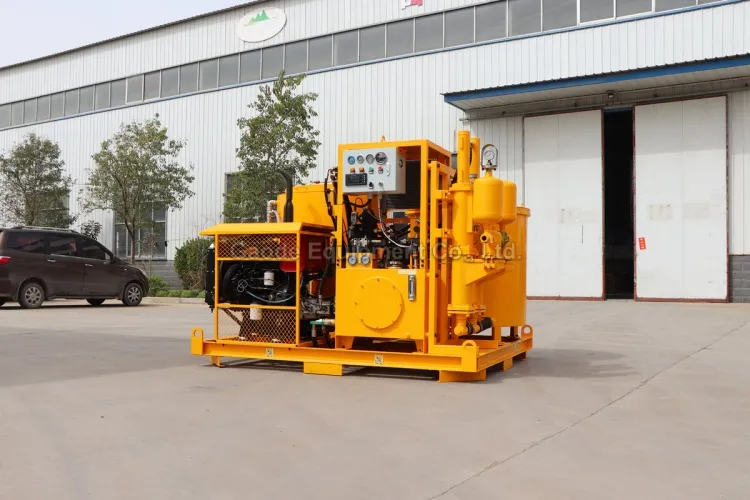

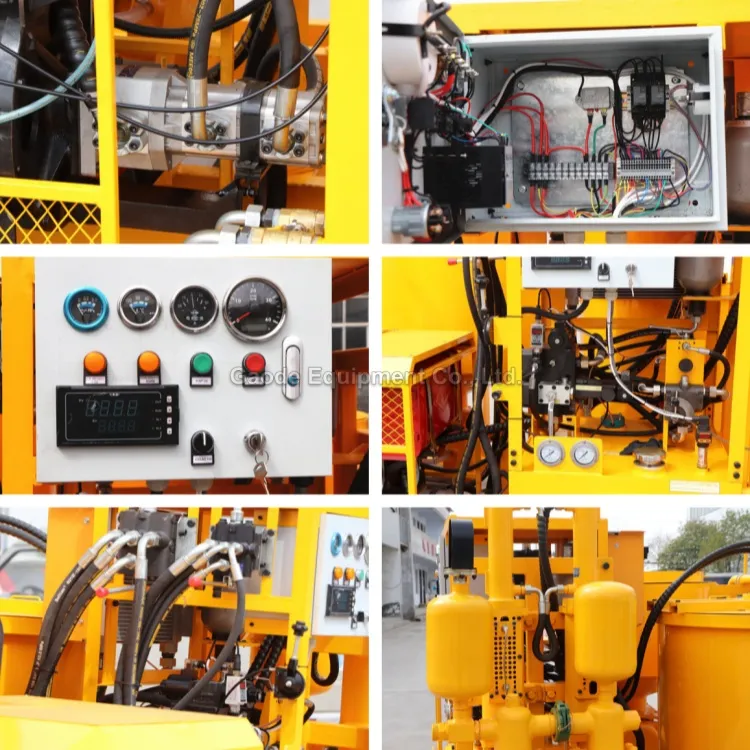

Details Images
Application
1. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts.
2. Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting.
3. Construction - pavement under sealing, slab jacking and slab raising.
4. Marine - underwater foundations, piers, breakers, shoreline foundations.
5. Mining - tunnel lining, contact grouting, shaft waterproofing.
6. Utilities - encasements, waterproofing, slope line grouting.
7. Geotechnical - deep well casing, monitor wells, well sealing and abandonment.
FAQ
1. Are you the manufacturer or a trade company?
We are the manufacturer for producing grout equipment.
And we have owned a trading company to do International Business,
So that:
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
2. Can you do the ODM or OEM? What is MOQ?
Yes, it is possible as discussed, MOQ: 1unit.
3. What about delivery time? How long can I get the machine after the order?
The production time is as fast as 30-60 working days if you customize the machine.
The standard machine in stock can be delivered as soon as possible after ordering.
4. How to pay for yourself?
50% down payment, then production starts, and the balance 50% paid before shipping.
If the machines are in stock, pay 100% then delivery.
Our Advantages
Packaging and Delivery
Contact Supplier
1. What is the project you are going to do?
2. What flow and pressure do you demand?
3. What's the water-cement ratio of the material you will mix and grout?
4. Regarding the engine, would you like an electric motor or a diesel engine? if electric motor, 3 phase, 380v, 50HZ is ok for you?
