Product
Summary
- Dimension(Long * Breadth * High):5520×4240×3180
- Machine Weight:18860kg
- Model Number:TS160-3HW
- Brand Name:HBXG
- Place of Origin:China
- Certification:ISO9001
Details
- Product Name:G5CE16616C3B3B
- Display online time:2019-05-20
- weight:18860.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:crawler

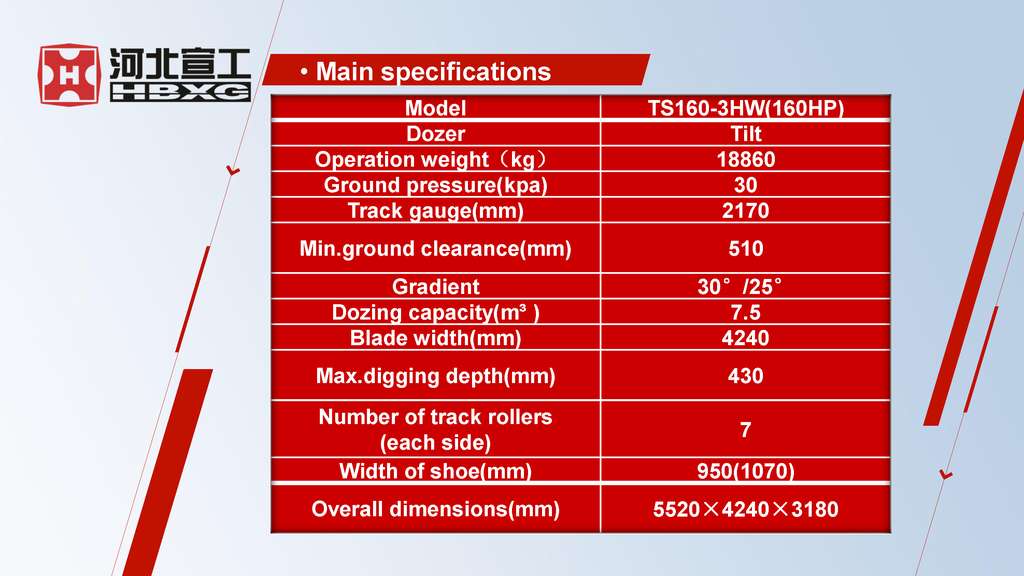

- Model:TS160-3HW(160HP)

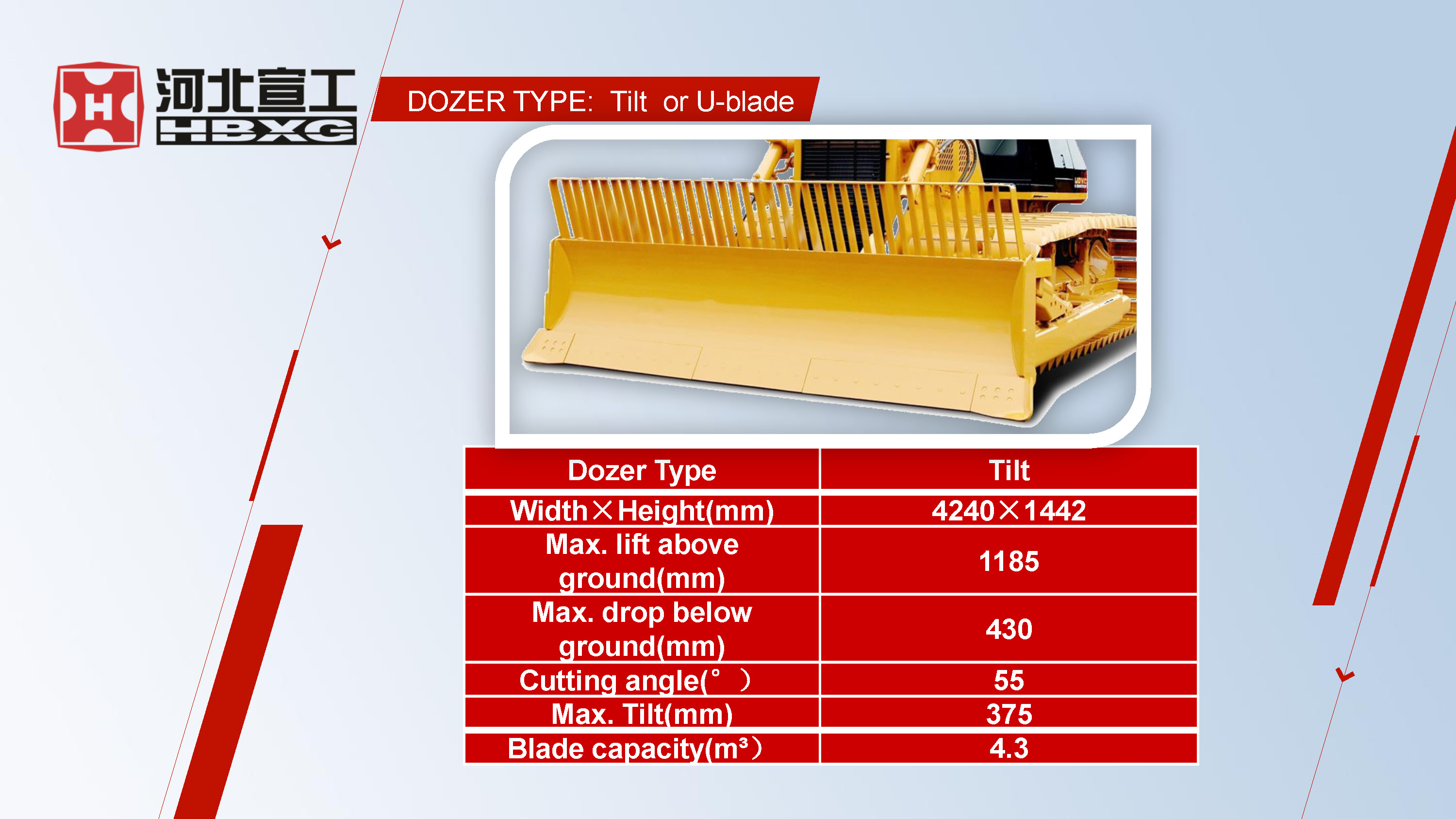

- Dozer:Tilt
- Operation weight（kg）:18860
- Ground pressure(kpa):30
- Track gauge(mm):2170
- Min.ground clearance(mm):510
- Gradient:30°/25°
- Dozing capacity(m³ ):7.5
- Blade width(mm):4240
- Engine Type:WEICHAI WD10G178E25
- Rated revolution(rpm):1850
- Rated power(kw):131
- Max.torque(N.m/rpm):830/1000-1400
- Rated fuel consumption(g/kw.h):≤215
- Undercarriage system:Swing type of sprayed beam,suspen-ded.Structure of equalizer bar.
- Number of track rollers(each side):7
- Width of shoe(mm):950(1070)

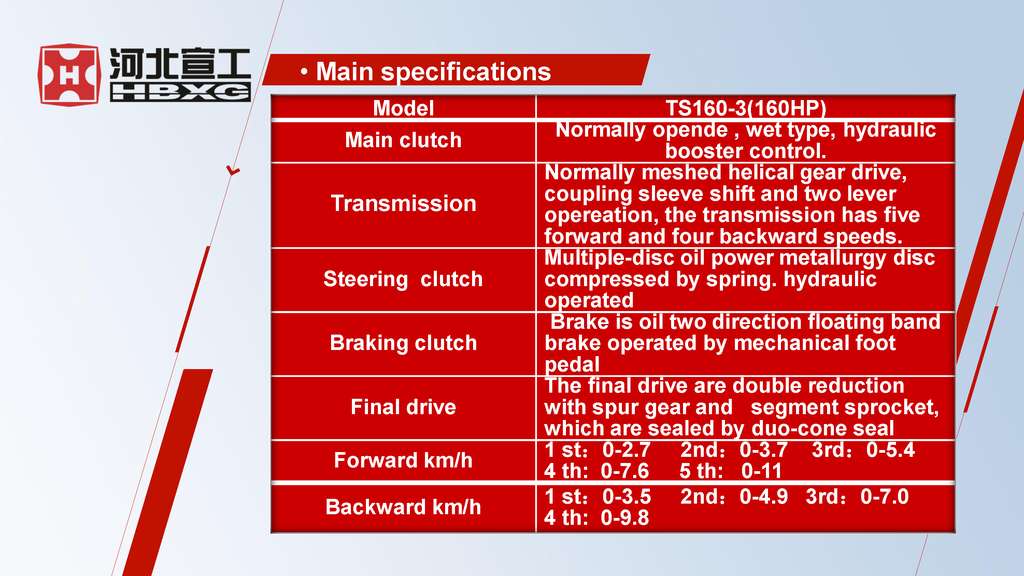

- Forward （km/h）:1 st：0-2.7 2nd：0-3.7 3rd：0-5.4 4 th: 0-7.6 5 th: 0-11
- Backward （km/h）:1 st：0-3.5 2nd：0-4.9 3rd：0-7.0 4 th: 0-9.8
_页面_01.jpg)
_页面_02.jpg)
_页面_03.jpg)
_页面_04.jpg)
_页面_05.jpg)
_页面_06.jpg)
_页面_07.jpg)
_页面_08.jpg)
_页面_09.jpg)
_页面_10.jpg)
_页面_11.jpg)
_页面_12.jpg)
_页面_13.jpg)
_页面_14.jpg)
_页面_15.jpg)
_页面_16.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
